EQG Electric Chain Hoist with Geared Trolley 20' Lift-Capacity 1 Ton EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

Product Overview

The EQG010SD-20 HARRINGTON EQG Electric Chain Hoist with Geared Trolley is designed to provide seamless material movement in medium-to heavy-duty industrial applications. This high-performance hoist, accompanied by the GT geared trolley, offers exceptional reliability and efficiency, making it a valuable addition to any workspace.With a lift capacity of 20 feet and options 1 ton, this hoist ensures smooth operations and increased productivity. Whether you need to move small or large loads, the EQG010SD-20 has you covered. Its robust construction and advanced features make it the perfect solution for industries that require reliable and efficient material handling.Investing in the EQG010SD-20 means investing in a powerhouse hoist with superb maneuverability. Its dual speed capabilities allow for precise control and quick adjustments, ensuring that your materials are transported with the utmost precision. No matter the size or weight of your load, this hoist can handle it with ease.The EQG010SD-20 is designed with durability in mind. The rugged construction and high-quality materials used in its manufacturing ensure that it can withstand the demands of even the toughest working environments. You can rely on this hoist to perform consistently, day in and day out, without any compromise in its efficiency or safety features.This electric chain hoist with geared trolley is also incredibly user-friendly. It features an ergonomic design, making it easy to operate and maneuver. The controls are intuitive, and the hoist can be easily transported and set up in different locations within your facility. Its compact size allows for flexibility in installation, making it suitable for a variety of workspaces.In conclusion, the EQG010SD-20 HARRINGTON EQG Electric Chain Hoist with Geared Trolley is the ideal solution for industries that require reliable and efficient material handling. With its advanced features, robust construction, and superb maneuverability, this hoist is designed to streamline your operations and increase productivity. Invest in this powerhouse hoist today and experience seamless material transportation like never before.

Product Specifications

.

Part Number:

EQG010SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley

Includes:

Chain Container

Lift Speed:

23/3.8 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

2 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

110v

Control Cord:

16 ft

Amps @ Low Volts:

5.5 A

Number of Speeds:

2

Trolley Configuration:

Geared Trolley

Trolley Speed:

Not Applicable

Features:

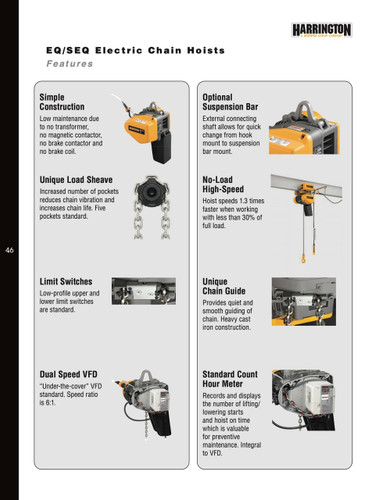

Extreme-Duty, Fan-Cooled Motor, Manually Operated Trolley, No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

23 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.8 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Geared Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

10.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

5.5 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
