EQG Electric Chain Hoist with Geared Trolley 10' Lift-Capacity 1/2 Ton EQG005SD Electric Chain Hoist with Geared Trolley HARRINGTON

Product Overview

Enhance the productivity of your industrial applications with the EQG005SD-10 HARRINGTON EQG Electric Chain Hoist with Geared Trolley. This powerful and reliable three-phase dual speed electric chain hoist, combined with the durable GT geared trolley, allows you to effortlessly move materials with ease and precision.With a 10' lift capacity and versatile 1/2 ton Capacity, this hoist is designed to handle medium-to heavy-duty loads efficiently. Whether you need to lift lighter loads or heavier objects, this hoist can handle it all, making it perfect for a wide range of applications.The integrated geared trolley adds stability and precision to your material handling operations. Experience seamless operation and trust in Harrington's renowned quality that delivers exceptional performance every time.Designed with efficiency and productivity in mind, the EQG005SD-10 HARRINGTON EQG Electric Chain Hoist with Geared Trolley allows you to maximize your workflow and get tasks done quickly and effectively. Whether you're in the manufacturing industry, construction, or any other industrial field, this hoist will help streamline your operations and increase your output.Don't let heavy lifting slow you down. Elevate your productivity today with the EQG005SD-10 HARRINGTON EQG Electric Chain Hoist with Geared Trolley. Experience the ease of use and reliability that Harrington is known for, and take your material handling capabilities to new heights. Get the job done efficiently and effectively with this powerhouse electric chain hoist with geared trolley.

Product Specifications

.

Part Number:

EQG005SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,000 lb, 10 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

17 19/64 in

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

17 5/16 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

1 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

3.3 A

Number of Speeds:

2

Trolley Configuration:

Geared Trolley

Trolley Speed:

Not Applicable

Features:

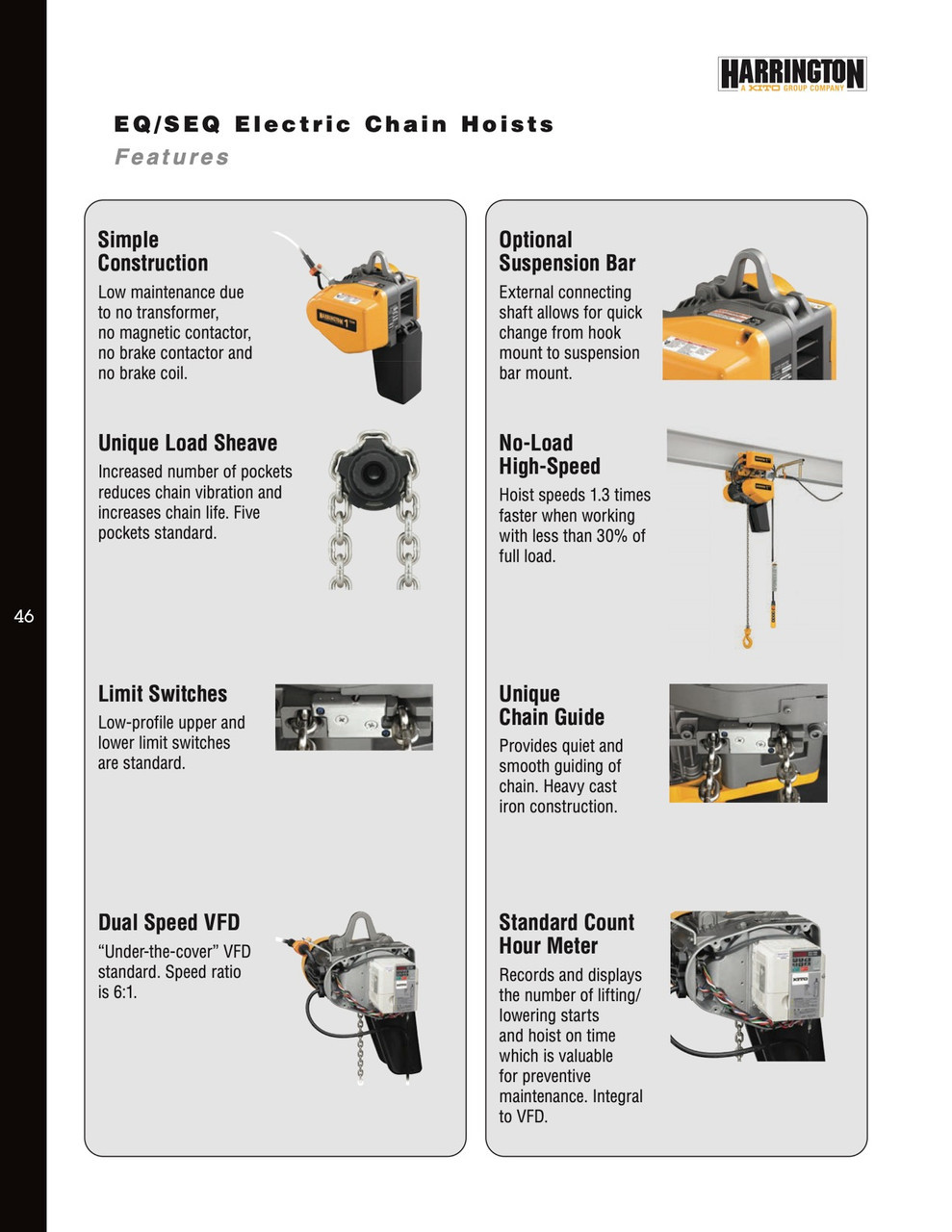

Extreme-Duty, Fan-Cooled Motor, Manually Operated Trolley, No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Geared Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

6.3 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

3.3 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
