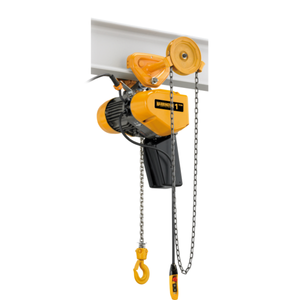

EQG Electric Chain Hoist with Geared Trolley 20' Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

Write a Review
$4,802.89
$4,021.82
(You save $781.07 )
SKU: EQG003SD-20-20
Condition: New
Availability: In stock
Weight: 101.80 LBS
Shipping: Free Shipping
Part Number: EQG003SD-20
Color: Yellow
Hoist Lift: 20 ft
Product: Electric Chain Hoist, 500 lb., 20 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley
Includes: Chain Container
Lift Speed: 33/5.5 fpm
Housing Width: 14 13/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 7/64 in
Housing Length: 16 45/64 in
For Minimum Beam Flange Width: 2 9/32 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 14 13/32 in
Body Depth: 9 1/8 in
For Minimum Beam Height: 3 in
Body Length: 16 23/32 in
Minimum Radius Curve: 51 3/16 in
Maximum Lifting Length: 20 ft
Controller Cord Length: 16 ft
Trolley Wheel Diameter: 4 1/4 in
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 16 11/16 in
Load Capacity: 500 lb.
Minimum Between Hooks: 16 7/16 in
Motor HP: 0.67 hp
Phase: 3
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage: 460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control: 16 ft
Control Cord: 16 ft
Amps @ Low Volts: 2.9 A
Number of Speeds: 2
Trolley Configuration: Geared Trolley
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Manually Operated Trolley, No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 33 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 5.5 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Geared Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 5/8 hp
Headroom: 16 13/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 5.1 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 2.8 A
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Adding to cart… The item has been added
EQG Electric Chain Hoist with Geared Trolley 20' Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

EQG Electric Chain Hoist with Geared Trolley 20' Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

$4,802.89
$4,021.82
(You save $781.07 )

EQG Electric Chain Hoist with Geared Trolley 20' Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

$4,802.89
$4,021.82
(You save $781.07 )

The EQG003SD-20 HARRINGTON EQG Electric Chain Hoist with Geared Trolley is the ultimate solution for boosting efficiency and productivity in your medium and heavy-duty industrial operations. With a robust 20' lifting height and a capacity of 1/4 ton, this electric chain hoist is engineered to handle a diverse array of material handling requirements, ensuring you tackle any lifting challenge with ease.

This electric chain hoist stands out with its dual speed functionality, allowing adaptability based on the specific needs of your application. Choose the ideal hoist speed to expertly maneuver heavy objects, resulting in precise control and seamless material movement throughout your projects. Coupled with a precision-engineered geared trolley, the EQG003SD-20 promises fluid motion, enhancing operational efficiency and safety.

  • Powerful 1/4 ton capacity for handling substantial loads.
  • 20' lift height for versatility in various applications.
  • Dual speed functionality for tailored operation based on task requirements.
  • Precision-engineered geared trolley designed for smooth and controlled movement.
  • Durable construction to withstand the demands of heavy use while minimizing maintenance.
  • Streamlined design for easy installation and operation.
  • Enhanced safety features to protect both operators and materials during lifting processes.

Investing in the EQG003SD-20 means significantly improving your operations, transforming workloads into more manageable tasks, and promoting a safe working environment. This hoist is indispensable in various industrial applications, from transporting materials across expansive warehouses to facilitating loading and unloading tasks from trucks. Its design prioritizes both performance and longevity, making it a crucial tool for your business.

In conclusion, the EQG003SD-20 HARRINGTON EQG Electric Chain Hoist with Geared Trolley is not just a lifting device; it is a game-changer in material handling efficiency. With unmatched durability, superior lift capabilities, and customizable speed options, this hoist is essential for any industrial application. Elevate your operations with the EQG003SD-20 today and experience unparalleled performance, operational efficiency, and safety in your work environment.
