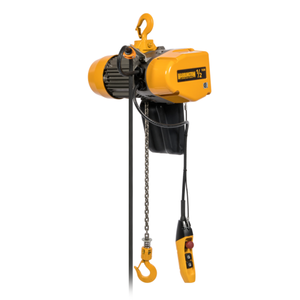

EQ Electric Chain Hoist 20' Lift-Capacity 1 Ton EQ010SD Electric Chain Hoist HARRINGTON

Product Overview

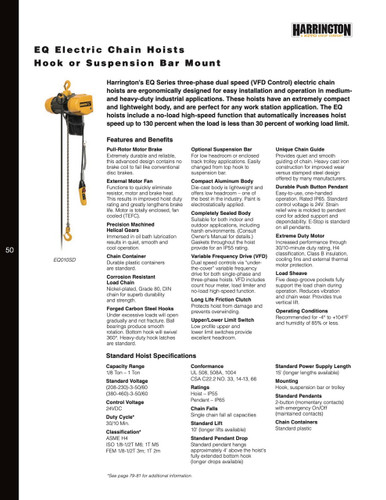

The EQ010SD-20 HARRINGTON EQ Electric Chain Hoist is the ultimate solution for all your industrial and workstation lifting needs. This remarkable hoist is designed to upgrade your applications, offering exceptional power, versatility, and reliability.With its dual-speed variable frequency drive (VFD) 3-phase motor, this electric chain hoist delivers outstanding performance for medium to heavy-duty lifting tasks. Whether you need to lift 1 ton, the EQ010SD-20 can handle the job with ease. It is engineered to provide the power and versatility you require, making it an indispensable tool in your workplace.Featuring a 20-foot lift capacity, this electric chain hoist ensures you can effortlessly reach elevated areas and lift heavy loads without any difficulty. No matter the height or weight, the EQ010SD-20 is designed to exceed your expectations and provide you with the lifting capacity you need to get the job done efficiently.The EQ010SD-20 HARRINGTON EQ Electric Chain Hoist is built to last, thanks to its high-quality construction. This hoist is made with durable materials that ensure longevity and reliability, even in the most demanding environments. You can trust that this electric chain hoist will withstand the test of time and continue to perform at its best.With its advanced technology, this electric chain hoist guarantees enhanced efficiency and safety. The EQ010SD-20 is equipped with innovative features that make your lifting operations easier and more secure. You can improve productivity and minimize risks with this exceptional hoist, ensuring a seamless and successful workflow.Upgrade your industrial and workstation applications with the EQ010SD-20 HARRINGTON EQ Electric Chain Hoist. Experience the power, versatility, and reliability it offers, and get your lifting tasks done faster and safer. Invest in this exceptional electric chain hoist and elevate your workplace to new heights of efficiency and productivity.

Product Specifications

.

Part Number:

EQ010SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

23/3.8 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

20 45/64 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

15 in

Body Length:

20 23/32 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

20 11/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

18 in

Motor HP:

2 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

5.5 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

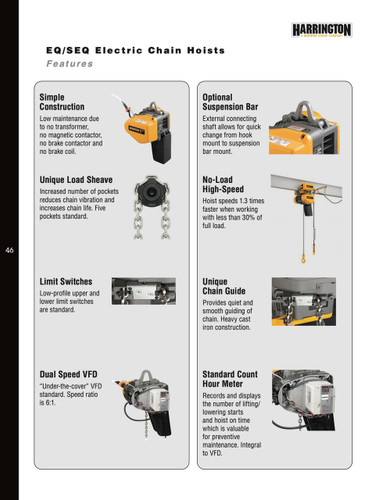

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

23 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.8 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

10.5 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

5.5 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
