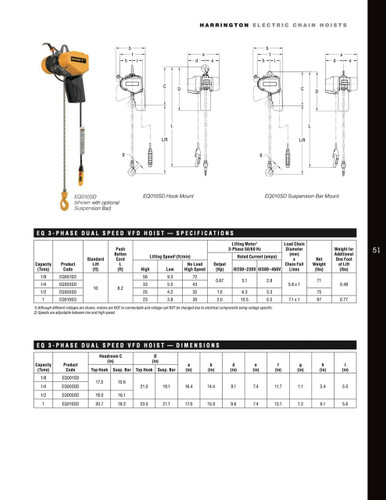

EQ Electric Chain Hoist 10' Lift-Capacity 1 Ton EQ010SD Electric Chain Hoist HARRINGTON

Product Overview

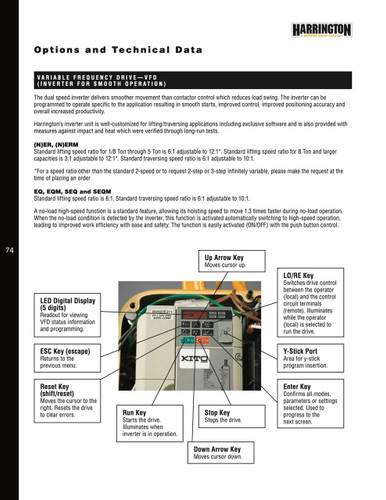

The EQ010SD-10 HARRINGTON Electric Chain Hoist is engineered to elevate your lifting capabilities with a 10-foot lift and an impressive 1-ton capacity, making it an essential tool for medium to heavy-duty industrial and workstation applications. Its dual-speed VFD 3-phase motor enhances operational efficiency by providing precise control over lifting speeds. This variable frequency drive (VFD) technology allows users to tailor the hoist‚ performance to meet specific lifting needs, ensuring smooth and safe operation in every task.

Built with industrial durability in mind, the EQ010SD-10 is crafted to endure the rigors of demanding work environments. Its robust construction not only guarantees long-lasting performance but also significantly reduces downtime, translating to lower maintenance costs. This electric chain hoist effortlessly handles heavy loads, providing a reliable lifting solution essential for transporting materials or maneuvering equipment.

The 10-foot lift capacity equips this hoist to tackle various heights and lifting challenges, offering versatility across multiple applications. Whether lifting heavy machinery or lowering items gently, the EQ010SD-10 adapts to the task with convenience and reliability.

Enhancing productivity is effortless with the EQ010SD-10 HARRINGTON Electric Chain Hoist. By incorporating this advanced hoist into your operations, you can expect an immediate boost in efficiency and safety. Experience the seamless integration of power and innovation designed to streamline your workflow, allowing you to focus on what truly matters. With this electric chain hoist, not only do you elevate your tasks but also maximize your potential for success in every lifting operation. Choose the EQ010SD-10 HARRINGTON Electric Chain Hoist and transform the way you lift today.

Product Specifications

.

Part Number:

EQ010SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 2,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

23/3.8 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

20 45/64 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

15 in

Body Length:

20 23/32 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

2 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

5.5 A

Number of Speeds:

2

Trolley Configuration:

Hook/Suspension Bar Mounted

Trolley Speed:

Not Applicable

Features:

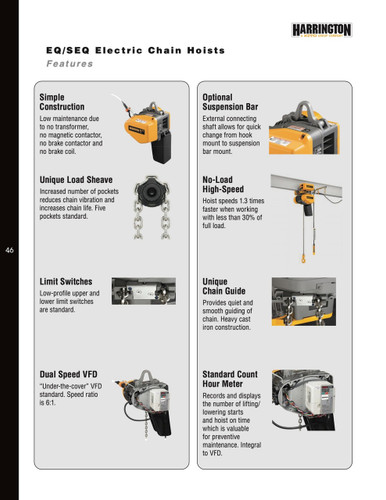

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

23 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.8 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

10.5 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

5.5 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
