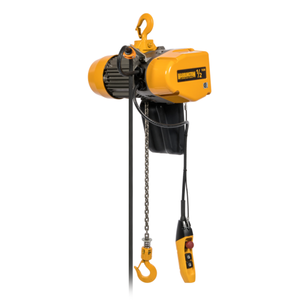

EQ Electric Chain Hoist 15' Lift-Capacity 1/2 Ton EQ005SD Electric Chain Hoist HARRINGTON

Product Overview

Upgrade your industrial and workstation operations with the EQ005SD-15 HARRINGTON EQ Electric Chain Hoist. This high-performing and reliable hoist is designed to enhance the efficiency and productivity of your lifting tasks.With a 15' lift capacity, this electric chain hoist is perfect for handling medium to heavy-duty loads. It is available in a range of Capacity, from 1/2 ton, making it suitable for a variety of applications.The advanced design and construction of the EQ005SD-15 ensure smooth and efficient operation. It is equipped with a dual-speed VFD 3-phase motor, allowing for precise control in different lifting scenarios. Whether you need to lift materials, equipment, or products, this hoist delivers exceptional performance and high reliability.The EQ005SD-15 HARRINGTON EQ Electric Chain Hoist is built to withstand the rigors of industrial use. It features a durable and sturdy construction, ensuring its longevity even in demanding environments.Operating the EQ005SD-15 is easy and convenient. It comes with a pendant control that allows for effortless operation, even from a distance. The control features a simple interface and intuitive buttons, making lifting tasks more efficient.Safety is always a top priority in any lifting operation, and the EQ005SD-15 meets all safety standards. It features a reliable brake system that ensures secure and controlled lifting. Additionally, it is equipped with overload limiters, protecting the hoist from excessive loads and prolonging its lifespan.The EQ005SD-15 HARRINGTON EQ Electric Chain Hoist is the ultimate solution for your lifting needs, providing exceptional performance, reliability, and safety. Upgrade your industrial and workstation operations today with this powerful and efficient electric chain hoist.

Product Specifications

.

Part Number:

EQ005SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 1,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

18 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

18 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

18 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

1 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Clutch:

Friction

Reeving:

1

Thermal Protection:

Yes

Control:

11 ft

Control Cord:

11 ft

Finish:

Epoxy Painted

Amps @ Low Volts:

3.3 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

6.3 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.3 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
