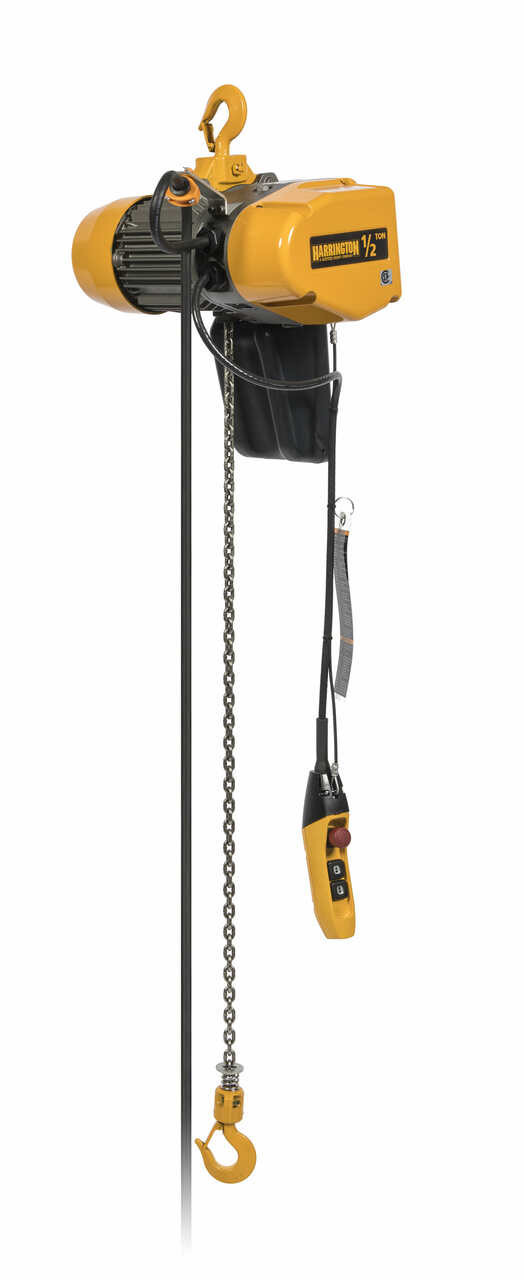

EQ Electric Chain Hoist 10' Lift-Capacity 1/2 Ton EQ005SD Electric Chain Hoist HARRINGTON

Product Overview

Upgrade your industrial and workstation applications with the powerful EQ005SD-10 HARRINGTON EQ Electric Chain Hoist. Designed by Harrington, this dual-speed VFD 3-phase hoist offers exceptional durability and functionality. It can handle medium to heavy-duty tasks with ease, making it a perfect choice for your lifting needs.With a 10' lift capacity and a variety of tonnage options ranging from 1/2 ton, this electric chain hoist provides the strength and precision you require. Whether you need to lift heavy machinery or transport materials, this hoist has got you covered.Featuring advanced technology, the EQ005SD-10 ensures smooth operations and increased safety. You can trust this hoist to handle even the toughest jobs without compromising on performance. With its reliable construction, you can count on this hoist to deliver long-lasting performance, reducing the need for frequent repairs or replacements.The EQ005SD-10 Electric Chain Hoist is designed to increase productivity and streamline your workflow. Its efficient design allows for fast and easy lifting, saving you time and effort. Say goodbye to manual heavy lifting and let this hoist do the hard work for you.This hoist is also incredibly versatile, making it suitable for a wide range of industries and applications. Whether you work in manufacturing, construction, or logistics, this hoist will meet your lifting needs and help you tackle your industrial challenges.In conclusion, the EQ005SD-10 HARRINGTON EQ Electric Chain Hoist 10' Lift is the perfect solution for your industrial lifting challenges. Upgrade your equipment with this reliable and high-performing hoist and experience increased efficiency and safety in your workplace. Get your hands on the EQ005SD-10 today and take your lifting capabilities to new heights.

Product Specifications

.

Part Number:

EQ005SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

18 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

18 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

18 in

Motor HP:

1 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

6 ft

Control Cord:

6 ft

Finish:

Epoxy Painted

Amps @ Low Volts:

3.3 A

Number of Speeds:

2

Trolley Configuration:

Hook/Suspension Bar Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

6.3 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.3 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
