Custom Field
Part Number EQ003SD-20
Color Yellow
Hoist Lift 20 ft

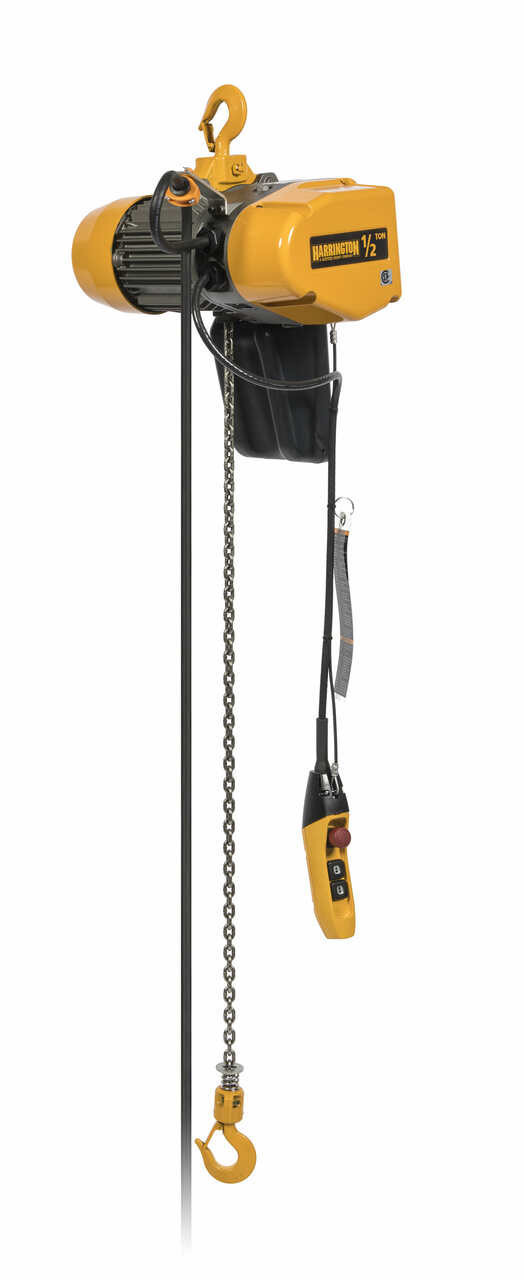

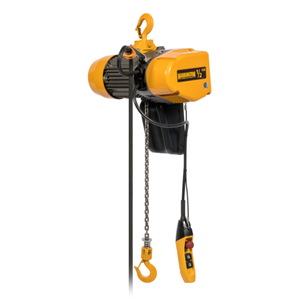

Product Electric Chain Hoist, 500 lb., 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container
Lift Speed 33/5.5 fpm
Housing Width 14 13/32 in
Manufacturers Warranty Length 3 yr
Housing Depth 9 7/64 in
Housing Length 17 19/64 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 3 yr
Body Width 14 13/32 in
Body Depth 9 1/8 in
For Minimum Beam Height 15 in
Body Length 17 5/16 in
Minimum Radius Curve 10 in
Maximum Lifting Length 20 ft
Controller Cord Length 16 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 1 3/32 in
Minimum Retracted Length 17 5/16 in
Load Capacity 500 lb.
Minimum Between Hooks 17 5/16 in
Motor HP 0.67 hp
Phase 3
Standards ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage 460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 1
Thermal Protection Yes
Control Cord 16 ft
Amps @ Low Volts 2.9 A
Number of Speeds 2
Trolley Configuration Hook Mounted-No Trolley
Trolley Speed Not Applicable

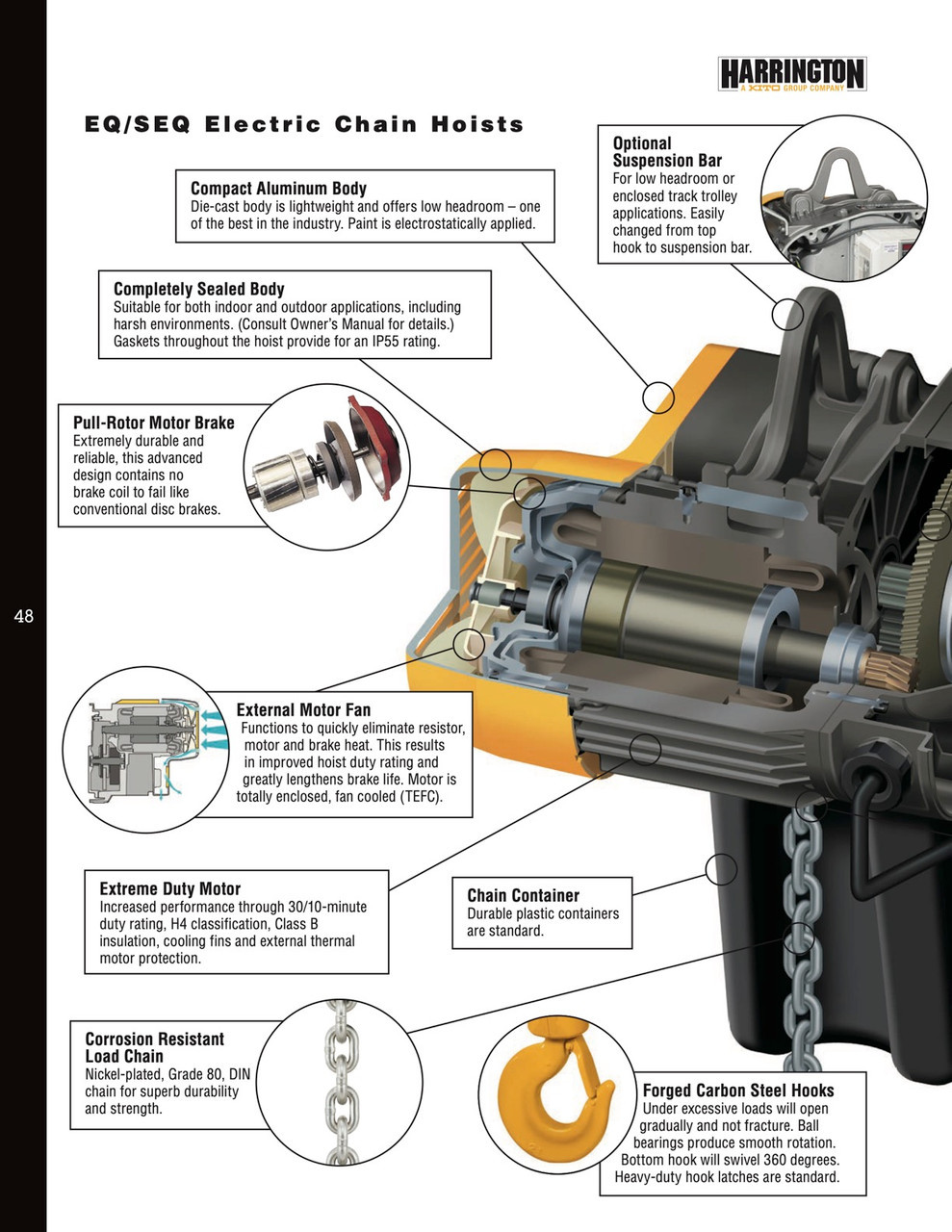

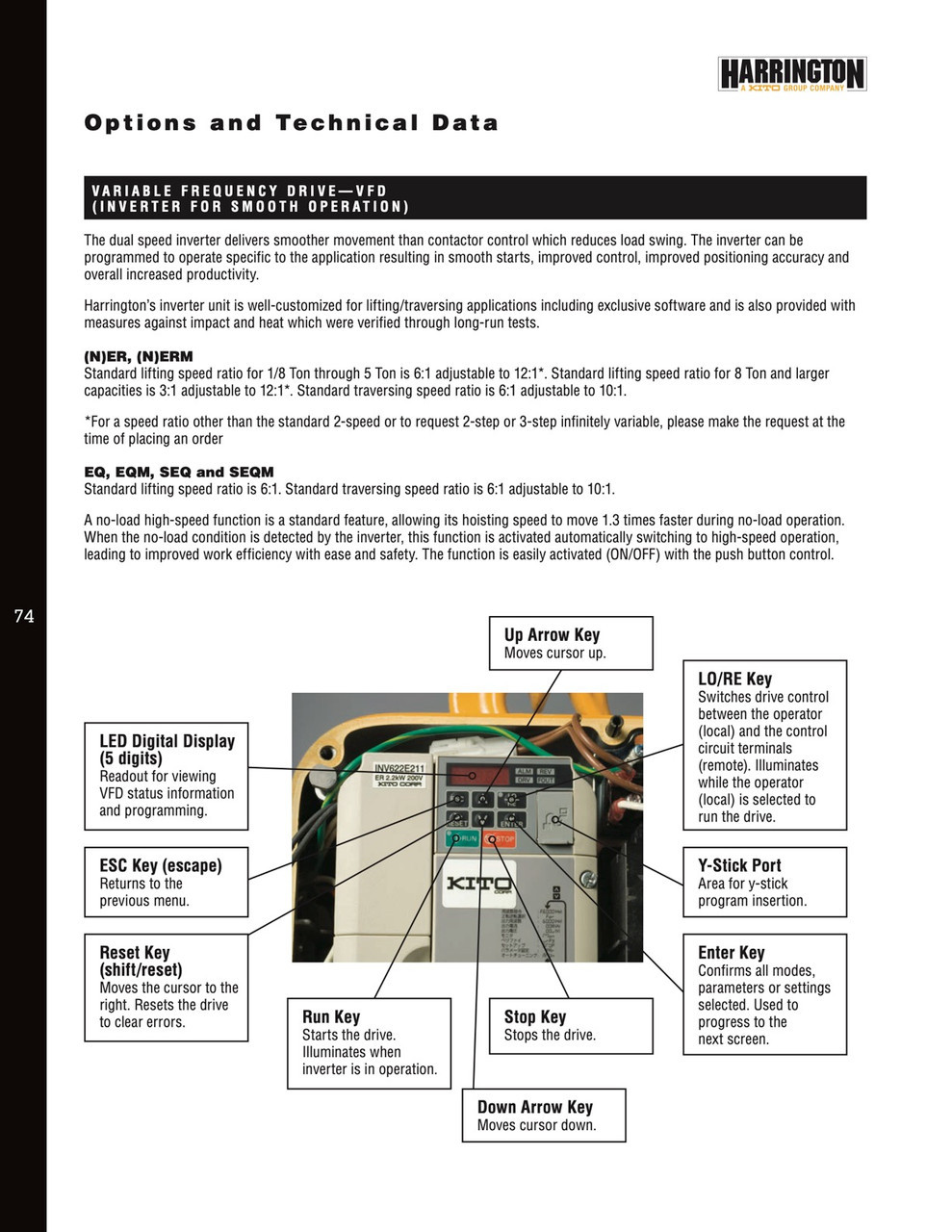

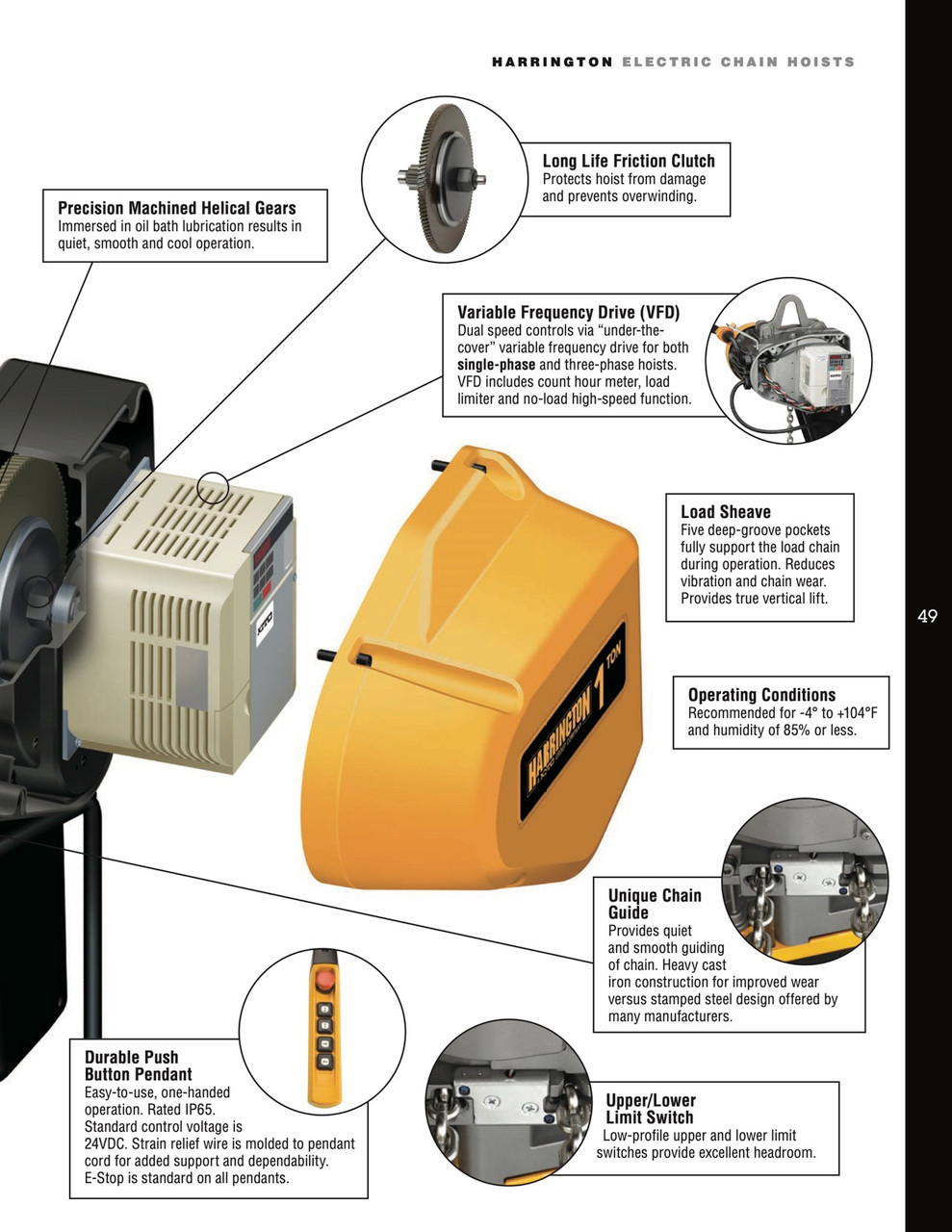

Features Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type Pull Rotor
Chain Grade Grade 80
Maximum Lift Speed 33 fpm
Included Components Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed Not Applicable
Clutch Type Friction
Minimum Lift Speed 5.5 fpm
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 120, 240
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 5/8 hp
Headroom 17 5/16 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 500 lb
Current at Minimum Voltage 5.1 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 2.8 A
Body Finish Epoxy Painted
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Programmable by Internal Controls
