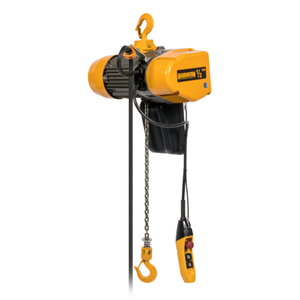

EQ Electric Chain Hoist 15' Lift-Capacity 1/4 Ton EQ003SD Electric Chain Hoist HARRINGTON

Product Overview

Upgrade your industrial and workstation operations with the powerful EQ003SD-15 Electric Chain Hoist. This hoist is designed to meet the toughest lifting needs, making it perfect for medium to heavy-duty applications. With a 15' lift and Capacity 1/4 ton, this dual-speed VFD 3-phase hoist offers exceptional power and control.Constructed with durability in mind, the EQ003SD-15 Electric Chain Hoist is built to withstand demanding work environments. Its smooth operation ensures increased productivity while maintaining the safety of your workforce. Whether you're in manufacturing, construction, or any industry that requires superior lifting performance, this hoist is a reliable and efficient choice.The EQ003SD-15 Electric Chain Hoist is part of Harrington's EQ series, known for its exceptional quality and reliability. With its advanced features, this hoist delivers consistent performance, allowing you to streamline your operations and meet your lifting needs effectively.Don't settle for anything less than the best. Elevate your business operations by choosing the EQ003SD-15 Electric Chain Hoist. With its robust construction, smooth operation, and superior lifting capabilities, this hoist is an essential addition to any industrial or workstation setting.Invest in the EQ003SD-15 Electric Chain Hoist and experience improved efficiency and productivity. Its powerful performance and user-friendly design make it the ideal choice for those seeking exceptional lifting solutions. Upgrade your equipment today and benefit from the reliability and precision that Harrington's EQ series offers.Enhance your industrial operations with the EQ003SD-15 Electric Chain Hoist. Trust in its power, reliability, and durability to take your business to new heights. Elevate your lifting capabilities and achieve optimal results with this exceptional hoist.

Product Specifications

.

Part Number:

EQ003SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 500 lb., 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

33/5.5 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

17 19/64 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

17 5/16 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

500 lb.

Minimum Between Hooks:

18 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

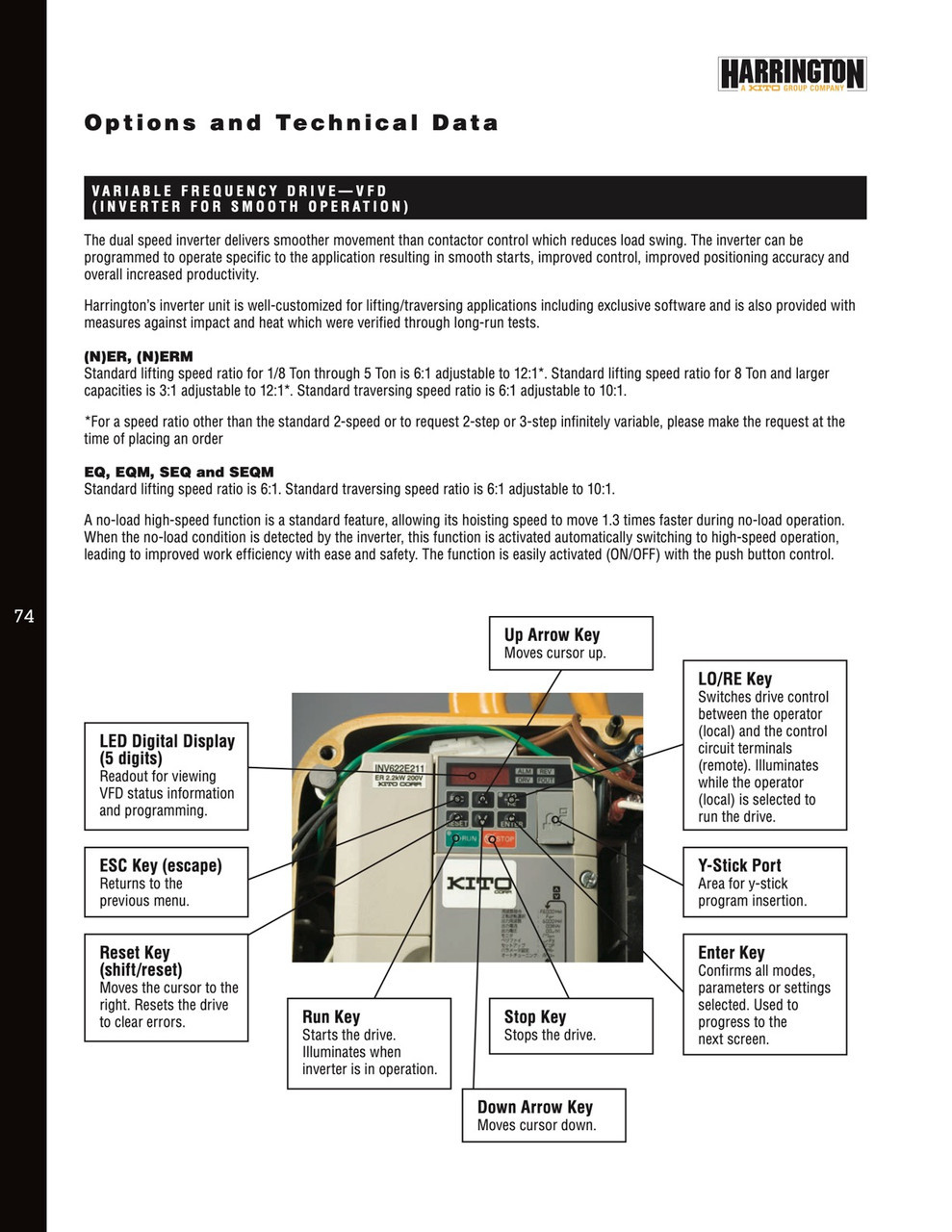

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

33 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

5.5 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
