EQ Electric Chain Hoist 20' Lift-Capacity 1/8 Ton EQ001SD Electric Chain Hoist HARRINGTON
Write a Review
Write a Review
HARRINGTON HOIST

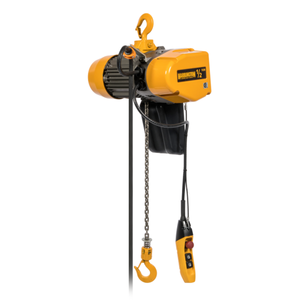

EQ Electric Chain Hoist 20' Lift-Capacity 1/8 Ton EQ001SD Electric Chain Hoist HARRINGTON
$3,513.74
$2,942.32
(You save
$571.42
)
SKU:
EQ001SD-20
Condition:
New
Availability:
In stock
Weight:
48.00 LBS
Shipping:
Free Shipping
Part Number:
EQ001SD-20
Color:
Yellow
Hoist Lift:
20 ft
Product:
Electric Chain Hoist, 250 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes:
Chain Container
Lift Speed:
56/9.3 fpm
Housing Width:
14 13/32 in
Manufacturers Warranty Length:
3 yr
Housing Depth:
9 7/64 in
Housing Length:
17 19/64 in
For Minimum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Height:
Not Applicable
MFR Warranty Length:
3 yr
Body Width:
14 13/32 in
Body Depth:
9 1/8 in
For Minimum Beam Height:
15 in
Body Length:
17 5/16 in
Minimum Radius Curve:
10 in
Maximum Lifting Length:
20 ft
Controller Cord Length:
16 ft
Trolley Wheel Diameter:
Not Applicable
Lifting Hook Opening Width:
1 3/32 in
Minimum Retracted Length:
17 5/16 in
Load Capacity:
250 lb
Minimum Between Hooks:
18 in
Motor HP:
0.67 hp
Phase:
3
Standards:
ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage:
460V
Fits Brand:
Harrington Hoists Inc
Lubrication:
Oil Bath
Reeving:
1
Thermal Protection:
Yes
Control:
16 ft
Control Cord:
16 ft
Amps @ Low Volts:
2.9 A
Number of Speeds:
2
Trolley Configuration:
Hook Mounted-No Trolley
Trolley Speed:
Not Applicable
Features:
Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Brake Type:
Pull Rotor
Chain Grade:
Grade 80
Maximum Lift Speed:
56 fpm
Included Components:
Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed:
Not Applicable
Clutch Type:
Friction
Minimum Lift Speed:
9.3 fpm
Pendant IP Rating:
IP65
Chain Finish:
Nickel Plated
Controls:
Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour:
120, 240
Duty Classification:
H4
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
1
Motor Horsepower:
5/8 hp
Headroom:
17 5/16 in
Includes Brake:
Brake Included
For Outdoor Use:
Yes
Hoist IP Rating:
IP55
Lifting Hook Type:
Swivel Hook with Safety Latch
Maximum Lifting Capacity:
250 lb
Current at Minimum Voltage:
5.1 A
Trolley Wheel Material:
Not Applicable
Current at Maximum Voltage:
2.8 A
Body Finish:
Epoxy Painted
Number of Load Chains:
1
Body Material:
Aluminum
Trolley IP Rating:
Not Applicable
Programmable:
Programmable by Internal Controls
EQ Electric Chain Hoist 20' Lift-Capacity 1/8 Ton EQ001SD Electric Chain Hoist HARRINGTON
$3,513.74
$2,942.32
(You save
$571.42
)
The EQ001SD-20 HARRINGTON EQ Electric Chain Hoist is a powerful and efficient tool designed to enhance productivity and streamline operations in medium to heavy-duty industrial and workstation applications. With its dual speed VFD 3-phase electric motor, this hoist provides smooth and precise lifting operations, ensuring accuracy and efficiency in every task.With a lift capacity of 20' and a range of Capacity between 1/8 ton, the EQ001SD-20 HARRINGTON EQ Electric Chain Hoist offers versatile load handling capabilities. From smaller loads to bulkier materials, this hoist can meet your requirements with ease. Its sturdy construction and reliable performance make it suitable for a wide range of industries, including manufacturing, construction, and warehousing.Safety is a top priority with the EQ001SD-20 HARRINGTON EQ Electric Chain Hoist. It features a double safety brake system that provides added security and minimizes the risks of accidents. Additionally, it is equipped with a load limiter that prevents overloading, ensuring the safety of both the operator and the equipment.Built to last and deliver outstanding performance, the EQ001SD-20 HARRINGTON EQ Electric Chain Hoist is a reliable solution for all your material handling needs. It combines power, efficiency, and safety in one package, allowing you to enhance productivity and streamline your operations. Don't settle for anything less when it comes to lifting heavy loads; choose the EQ001SD-20 HARRINGTON EQ Electric Chain Hoist and experience the difference it can make in your workplace.
