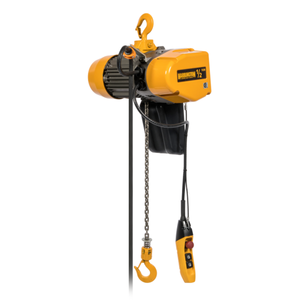

EQ Electric Chain Hoist 15' Lift-Capacity 1/8 Ton EQ001SD Electric Chain Hoist HARRINGTON

Product Overview

The EQ001SD-15 HARRINGTON EQ Electric Chain Hoist is the perfect upgrade for your industrial and workstation operations. This high-performance hoist is designed to provide reliable and efficient performance, ensuring that your lifting tasks are streamlined and productivity is enhanced.With a lift capacity ranging from 1/8 Ton, the EQ001SD-15 is suitable for medium to heavy-duty applications. Whether you need to lift heavy machinery or move large objects, this electric chain hoist has got you covered. Its dual speed VFD 3-phase motor ensures exceptional control during operation, allowing for precise and accurate lifting.Safety is paramount when it comes to handling heavy loads, and the EQ001SD-15 excels in this aspect. It is equipped with advanced safety features such as a load brake, upper and lower limit switches, and a hoist motor thermal protection device. These features provide added security and peace of mind, allowing you to carry out your lifting tasks with confidence.The 15' lift height of this electric chain hoist ensures versatility in various working environments. Whether you are working in a low-ceiling workshop or a large warehouse, this hoist can easily accommodate your needs. Its compact design allows for easy installation and transportation, making it a convenient choice for on-site jobs.Investing in the EQ001SD-15 HARRINGTON EQ Electric Chain Hoist means investing in quality. This hoist is built to last, with a robust construction that can withstand the rigors of daily use. It is engineered for durability and requires minimal maintenance, saving you time and money in the long run.In conclusion, the EQ001SD-15 is a top-of-the-line electric chain hoist that offers exceptional performance, control, and safety. Its versatile lift capacity and height make it suitable for various applications, while its durability ensures long-term reliability. Upgrade your industrial and workstation operations with the EQ001SD-15 HARRINGTON EQ Electric Chain Hoist and experience the difference it can make in your lifting tasks and overall productivity.

Product Specifications

.

Part Number:

EQ001SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 250 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

56/9.3 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

17 19/64 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

17 5/16 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

250 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

56 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

9.3 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
