EQ Electric Chain Hoist 10' Lift-Capacity 1/8 Ton EQ001SD Electric Chain Hoist HARRINGTON

Product Overview

The EQ001SD-10 HARRINGTON EQ Electric Chain Hoist is the ultimate solution for enhancing your industrial workflow. This powerful and versatile hoist is designed to handle medium to heavy-duty applications, making it an ideal choice for various industries. With a lifting capacity 1/8 ton, it can confidently handle a wide range of loads.Featuring a compact design, the EQ001SD-10 is suitable for both industrial and workstation use. Its exceptional performance and reliability ensure that your lifting operations are carried out smoothly and efficiently. The advanced features, such as the variable frequency drive and dual speed control, allow for optimal efficiency and precise lifting movements.One of the standout features of the EQ001SD-10 is its 10-foot lift height. This ample vertical reach provides you with the flexibility to maneuver loads with confidence, no matter the application. Whether you need to lift heavy machinery or transport materials within your facility, this hoist is up to the task.When it comes to quality and dependability, you can trust the renowned Harrington brand. With their commitment to excellence, you can be confident that the EQ001SD-10 will meet and exceed your expectations. Upgrade your lifting capabilities today with the EQ001SD-10 HARRINGTON EQ Electric Chain Hoist and experience enhanced productivity in your workplace.

Product Specifications

.

Part Number:

EQ001SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 250 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

56/9.3 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

17 19/64 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

17 5/16 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

250 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Hook/Suspension Bar Mounted

Trolley Speed:

Not Applicable

Features:

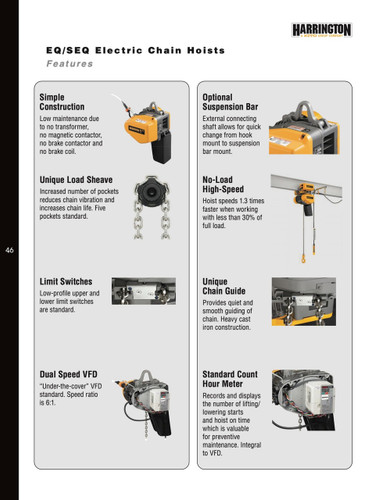

Extreme-Duty, Fan-Cooled Motor, No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

56 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

9.3 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
