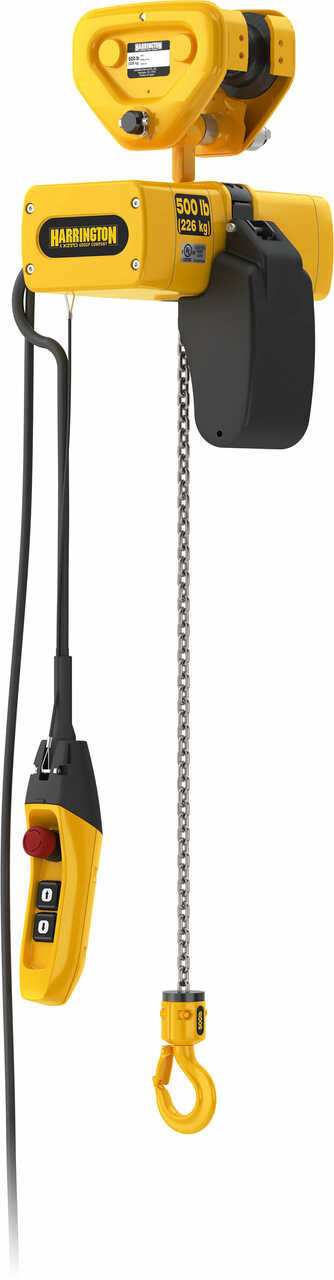

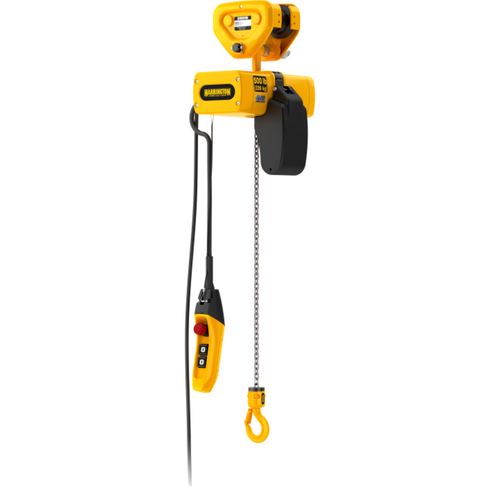

EMP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 500 Lbs EMP003L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Enhance your material handling capabilities with the EMP003L-10 HARRINGTON EMP Electric Chain Hoist with Push Trolley. This top-of-the-line hoist is designed to provide you with smooth and effortless operations, allowing you to improve productivity and safety in your workstations.With a compact and reliable design, the EMP003L-10 offers a generous lift capacity of 500 lbs, ensuring that it can handle a wide range of materials with ease. Whether you need to lift heavy objects or transport them over short distances, this electric chain hoist is up to the task.The EMP003L-10 is the perfect combination of power and mobility. By seamlessly pairing it with a push trolley, you can easily move materials across your workspace with minimal effort. This not only saves you time but also reduces the risk of injuries caused by manual lifting and carrying.Investing in the EMP003L-10 means investing in improved efficiency. With its reliable performance and ease of use, you can streamline your material handling processes and complete tasks more quickly. Whether you're in a manufacturing facility, construction site, or warehouse, this hoist and trolley combination is the ideal solution for all your lifting and transporting needs.When it comes to reliability, the EMP003L-10 doesn't disappoint. It is built to withstand heavy use and is backed by HARRINGTON's reputation for quality and durability. You can trust that this hoist will deliver consistent and reliable performance day after day.Upgrade your material handling equipment with the EMP003L-10 HARRINGTON EMP Electric Chain Hoist with Push Trolley. Experience the ease and efficiency it offers and revolutionize your workstations like never before. Don't settle for less when it comes to your productivity and safety-choose the best and reap the rewards.

Product Specifications

.

Part Number:

EMP003L-10

Color:

Yellow

Hoist Lift:

3

Product:

Electric Hoists=Hoist Mount=1

Includes:

Clutch Included

Lift Speed:

5 yr

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

5 yr

Body Width:

11 1/2 in

Body Depth:

7 29/32 in

For Minimum Beam Height:

3 1/2 in

Body Length:

11 1/2 in

Minimum Radius Curve:

43 5/16 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

8 3/16 ft

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

12 3/16 in

Phase:

3

Number of Speeds:

1

Features:

Fits Tapered or Flat-Flanged Beams, Upper Limit Switch, Non-Drip, Grease Packed Gear Box, Solid State Relay Board, Unique Chain Guide

Lifting Hook Material:

Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Electromagnetic

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Rubber Bumpers

Fixed Lift Speed:

16 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

300

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/8 hp

Headroom:

12 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP65

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

1.4 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

1.4 A

Number of Load Chains:

1

Body Material:

Die-Cast Aluminum

Programmable:

Non-Programmable
