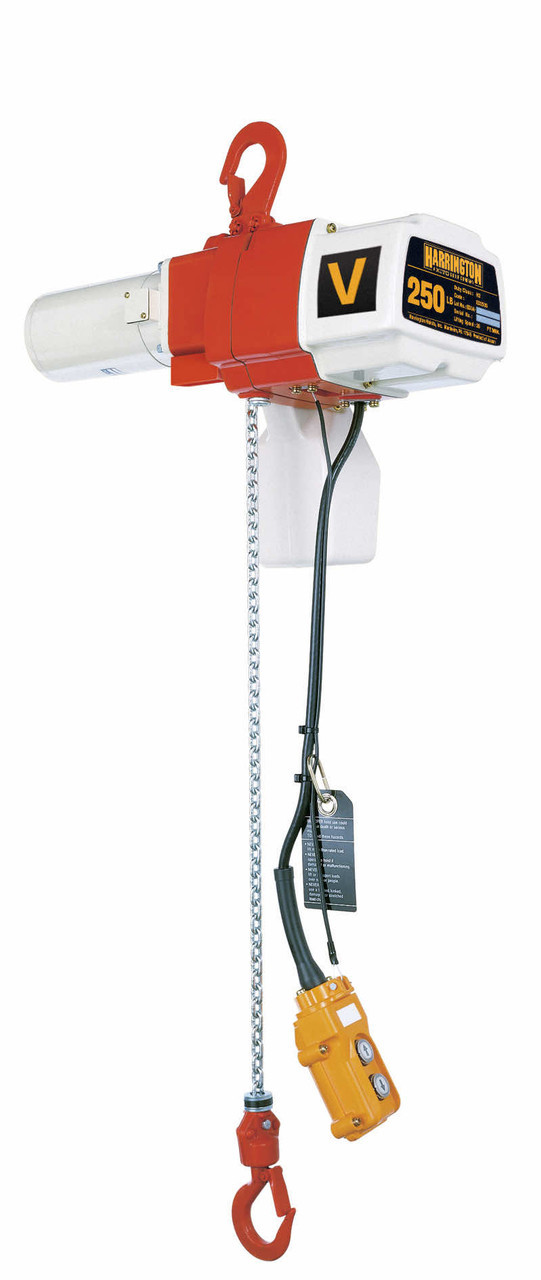

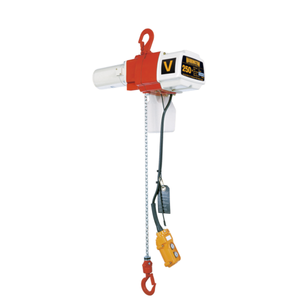

EDV Variable Single Speed Electric Hoist 10' Lift-Capacity 500 lb.ED500V Electric Chain Hoist HARRINGTON

Product Overview

The ED500V-10 HARRINGTON EDV Variable Single Speed Electric Hoist is the ultimate solution for all your heavy lifting needs. With its cutting-edge features and state-of-the-art technology, this electric chain hoist is meticulously designed to make your lifting tasks easier, safer, and more efficient.

One of the standout features of the ED500V-10 is its smart speed technology, which allows for precise load positioning and smooth operation. No more struggling and straining to lift awkward and heavy loads; this hoist does the heavy lifting for you. The dual speed functionality further enhances its control, providing you with maximum precision and flexibility in your lifting operations.

• Lift Capacity: Capable of handling up to 500 lbs, making it suitable for a diverse range of applications.
• Smart Speed Technology: Offers precise load positioning and control, minimizing the risk of damage during operation.
• Durable Construction: Manufactured with high-quality materials ensuring longevity and high performance even under demanding conditions.
• Safety Features: Equipped with overload protection and a robust braking system to ensure safe lifting and minimize accidents.
• Versatile Applications: Ideal for lifting heavy machinery, equipment, and materials across various industries.
• Efficient Operation: Significantly reduces time and effort needed for lifting tasks, improving overall productivity.
• Compact Design: Its design allows for easy storage and transportation, making it convenient for various job sites.

Experience the power and versatility of the ED500V Electric Chain Hoist. With its innovative features, impressive lifting capabilities, and unwavering commitment to safety, this hoist is a game-changer for any industry. Say goodbye to manual lifting and hello to effortless and efficient lifting with the ED500V-10 HARRINGTON EDV Variable Single Speed Electric Hoist.

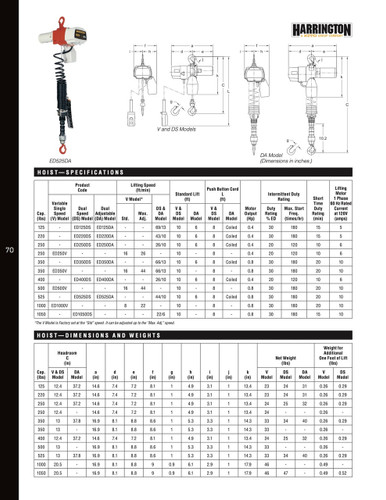

Product Specifications

.

Part Number:

ED500V-10

Color:

White and Orange

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 500 lb, 10 ft, Hook Mounted-No Trolley, White and Orange=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

16/44 fpm

Housing Width:

8 5/8 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

14 5/16 in

Housing Length:

17 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 5/8 in

Body Depth:

14 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

17 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

7 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

13 in

Load Capacity:

500 lb

Minimum Between Hooks:

13 in

Motor HP:

0.8 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Grease

Reeving:

1

Thermal Protection:

No

Control:

7 ft

Control Cord:

7 ft

Number of Speeds:

Variable

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

44 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

16 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

180

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

13 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

0.416666666666667

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.416666666666667

Body Finish:

Powder Coated

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
