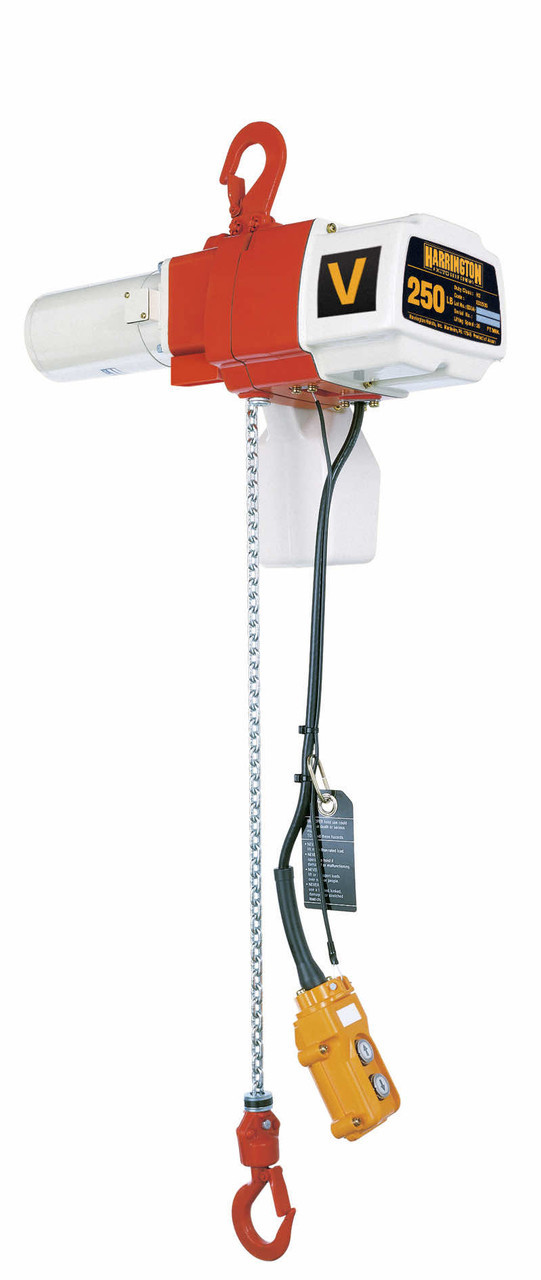

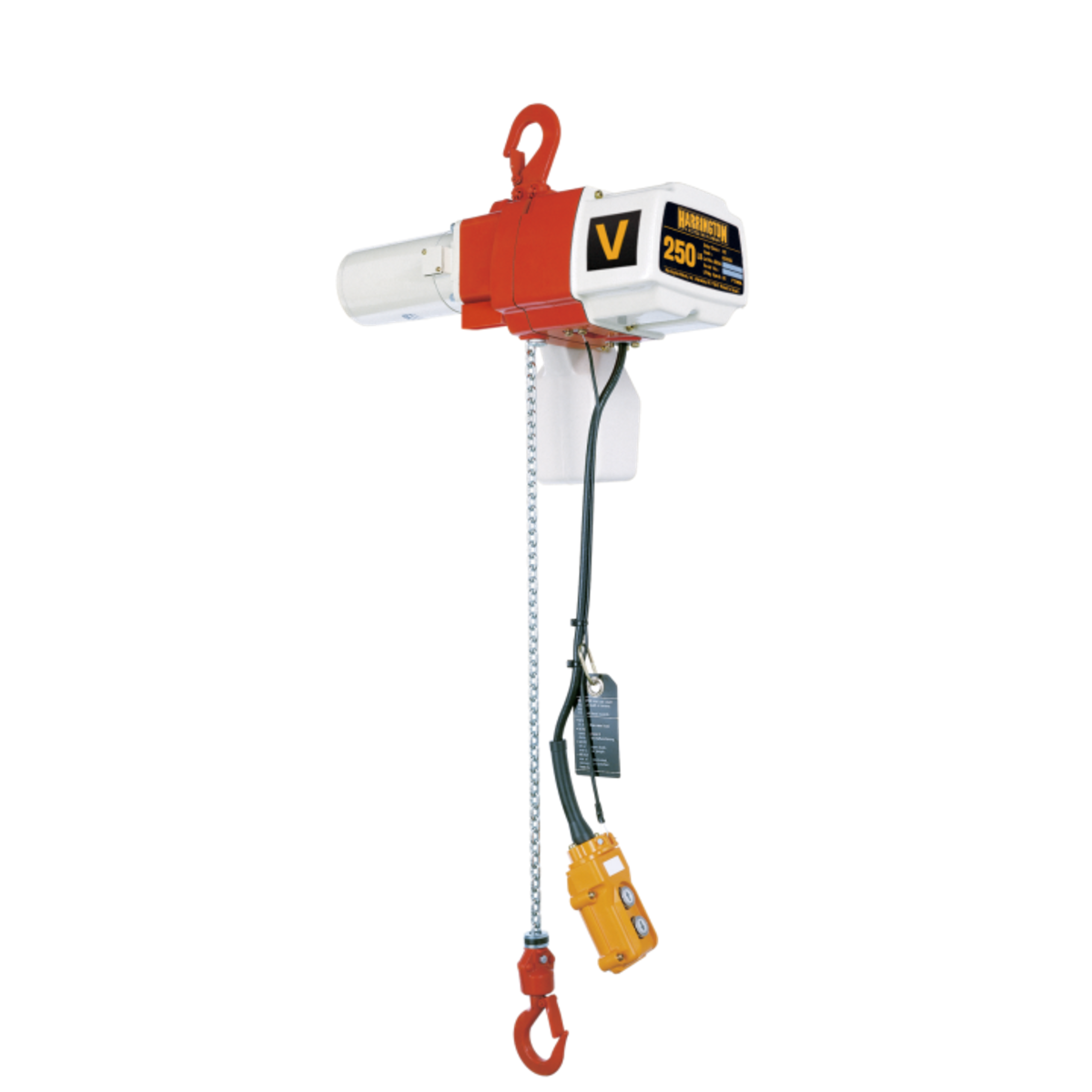

EDV Variable Single Speed Electric Hoist 10' Lift-Capacity 350 lb.ED350V Electric Chain Hoist HARRINGTON

Product Overview

The ED350V-10 HARRINGTON EDV Variable Single Speed Electric Hoist is a powerful and versatile lifting tool that is perfect for a wide range of industries. With lifting Capacity ranging from 350 lb., this hoist can handle even the heaviest loads with ease.What sets the ED350V-10 apart from other hoists on the market is its innovative Smart Speed Technology. This technology ensures that the hoist maintains a smooth and accurate load positioning, even with the most awkward loads. No longer will you have to worry about your precious cargo being jostled or damaged during the lifting process. With this hoist, precision and control are the name of the game.The 10' lift height of this hoist provides ample reach for a wide range of applications. Whether you need to lift heavy machinery onto a shelf, move materials around a construction site, or anything in between, this hoist will get the job done efficiently and safely. The 10' lift height gives you the flexibility to tackle various lifting tasks without the need for additional equipment.Reliability is a key factor when it comes to lifting heavy objects, and the ED350V-10 does not disappoint. Constructed with durability in mind, this hoist is built to withstand the rigors of daily use. It is designed to last for years, providing you with a reliable tool that you can count on time and time again.Experience the convenience and power of the ED350V-10 HARRINGTON EDV Variable Single Speed Electric Hoist and take your lifting operations to new heights. Upgrade your lifting capabilities today and see the difference that this hoist can make in your work efficiency and productivity. Don't settle for anything less than the best when it comes to your lifting equipment. Trust in the ED350V-10 to get the job done right.

Product Specifications

.

Part Number:

ED350V-10

Color:

White and Orange

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 350 lb, 10 ft, Hook Mounted-No Trolley, White and Orange=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

16/44 fpm

Housing Width:

8 5/8 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

14 5/16 in

Housing Length:

17 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 5/8 in

Body Depth:

14 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

17 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

7 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

13 in

Load Capacity:

350 lb

Minimum Between Hooks:

13 in

Motor HP:

0.8 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Grease

Item:

Electric Chain Hoist

Reeving:

1

Thermal Protection:

No

Control Cord:

7 ft

Number of Speeds:

Variable

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

44 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

16 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

180

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

13 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

350 lb

Current at Minimum Voltage:

0.416666666666667

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.416666666666667

Body Finish:

Powder Coated

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
