ED-DA Dual Adjustable Cylinder Control Electric Chain Hoist 6' Lift-Capacity 350 lb.ED350DA Electric Chain Hoist HARRINGTON

Product Overview

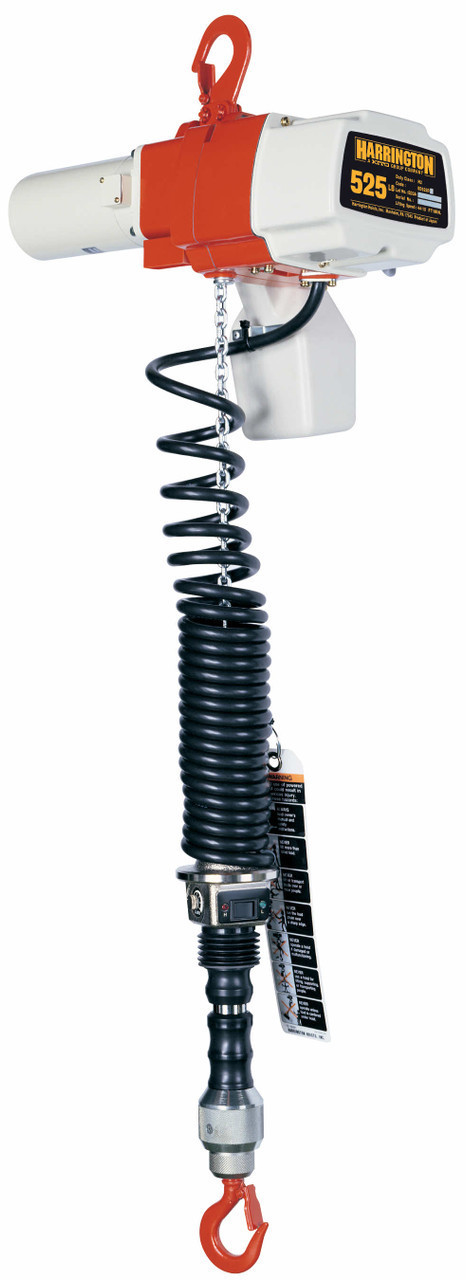

The HARRINGTON ED-DA Dual Adjustable Cylinder Control Electric Chain Hoist ED350DA-6 is an essential tool for industrial lifting needs, engineered to provide exceptional performance and efficiency. With a robust lift capacity of up to 350 pounds and a 6-foot lift height, this electric chain hoist stands out as a leading solution for your demanding lifting tasks.

Designed with the user in mind, the ED350DA-6 features a dual adjustable cylinder control system that enhances comfort and control during operations. This innovative feature enables operators to customize the lifting speed and power seamlessly, preventing any jarring motions and ensuring smooth transitions. Your lifting experiences will be transformed as you enjoy precise control and reliability with every use, making it ideal for a wide range of applications, from heavy machinery lifts to hoisting materials onto elevated platforms.

• Strong lift capacity of 350 lb for versatile lifting tasks.
• 6-foot lift height for flexibility in various operational settings.
• Dual adjustable cylinder control for smooth lifting and lowering.
• User-friendly interface for effortless operation across all skill levels.
• Overload protection for enhanced safety during operation.
• Reliable braking system for secure and controlled lifting operations.
• Sturdy construction designed to withstand the demands of frequent use in industrial environments.

Safety is a top priority with the ED350DA-6, ensuring peace of mind while operating heavy loads. Its robust safety features, such as overload protection and an intuitive braking system, are designed to prevent accidents and promote secure lifting, making it suitable for both seasoned operators and newcomers alike.

By choosing the HARRINGTON ED-DA Dual Adjustable Cylinder Control Electric Chain Hoist ED350DA-6, you are investing in an essential piece of equipment that will streamline your workflow and improve operational efficiency. Experience the power and reliability this hoist brings to your lifting requirements, and notice the difference it can make in your operations.

Elevate your lifting capabilities and enhance productivity with the ED350DA-6. Make the smart choice for your business and upgrade to this state-of-the-art electric chain hoist today. Don't compromise on quality—experience the strength and reliability of HARRINGTON hoists.

Product Specifications

.

Part Number:

ED350DA-6

Color:

White

Hoist Lift:

6 ft

Product:

Electric Chain Hoist, 350 lb, 6 ft, Hook Mounted-No Trolley, White=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

66/13 fpm

Housing Width:

8 19/32 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

14 5/16 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 19/32 in

Body Depth:

14 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

16 29/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

6 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

37 13/16 in

Load Capacity:

350 lb

Minimum Between Hooks:

37 13/16 in

Motor HP:

0.8 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Control Cord:

6 ft

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Easy-Touch High/Low Speed Selection, Ergonomic In-Line Handgrip Control, High Speed Motor, Quick-Switch Removable Bottom Hook, Standard Double-Braking System

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

66 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Clutch Type:

Friction Clutch

Minimum Lift Speed:

13 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

180

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

37 13/16 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

350 lb

Current at Minimum Voltage:

0.416666666666667

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.416666666666667

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by External Controls
