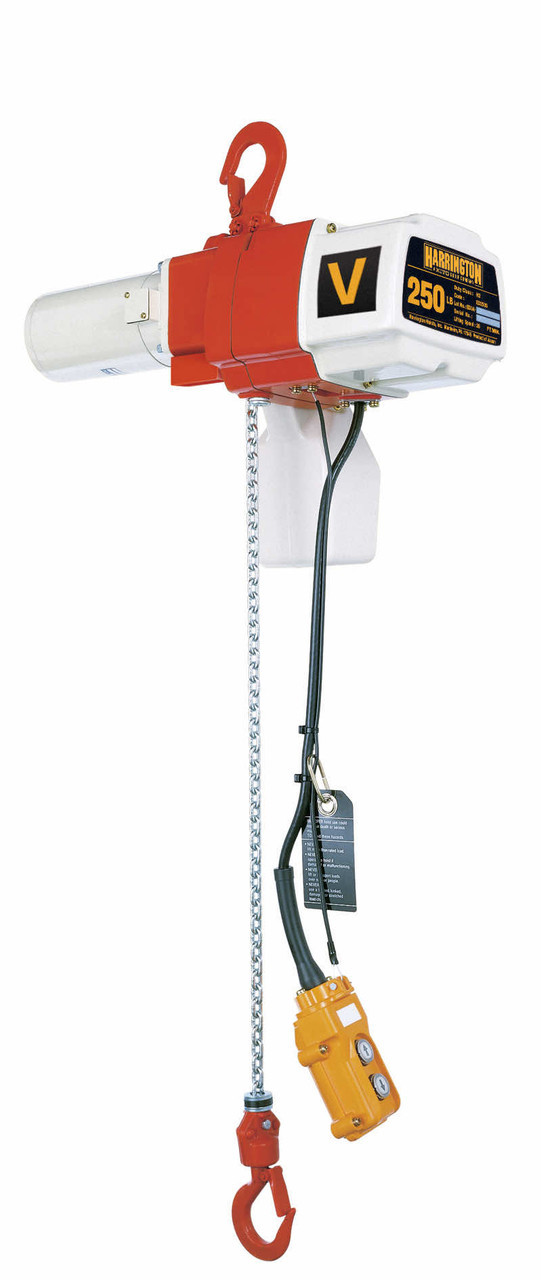

EDV Variable Single Speed Electric Hoist 10' Lift-Capacity 250 lb.ED250V Electric Chain Hoist HARRINGTON

Product Overview

The ED250V-10 HARRINGTON EDV Variable Single Speed Electric Hoist is your go-to solution for various lifting applications. Built with exceptional technology, this electric hoist combines power, efficiency, and durability to handle loads up to 250 lbs effortlessly. Experience a new level of lifting capability with HARRINGTON's trusted design, pivotal for both residential and industrial usage.

Utilizing Smart Speed Technology, the ED250V-10 allows for precise load positioning, ensuring that even awkward or hefty items are handled with accuracy. This feature diminishes the likelihood of operational mishaps, safeguarding your materials against potential damage, while also facilitating optimal efficiency. The dual-speed setting empowers users with enhanced control, whether the requirement is for a slow, deliberate lift or accelerated movement for quick retrievals.

• Load Capacity: Up to 250 lbs for versatile applications.
• Smart Speed Technology for precise load positioning.
• Dual-speed operation for control and flexibility.
• Safety features designed for user and load protection.
• Durable construction for long-lasting performance.
• Ideal for heavy machinery, equipment, and material handling.
• Compact design suitable for various work environments.
• Reliable performance backed by HARRINGTON's industry reputation.

This hoist is engineered with safety paramount in mind. Each unit is outfitted with essential safety features that guard against operational hazards, reliably protecting both users and the items being lifted. You can trust in the robust materials and thoughtful design of the ED250V-10, which not only meets but exceeds safety standards within the industry.

Make a wise decision for your lifting operations by selecting the ED250V-10 HARRINGTON EDV Variable Single Speed Electric Hoist. With its combination of strength, efficiency, and unparalleled safety, this hoist stands out in its class. Elevate your lifting experience and invest in the durability and reliability that only HARRINGTON can provide. Get the job done right with a hoist that promises to exceed expectations.

Product Specifications

.

Part Number:

ED250V-10

Color:

White and Orange

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 250 lb, 10 ft, Hook Mounted-No Trolley, White and Orange=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

16/26 fpm

Housing Width:

8 7/64 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

13 13/32 in

Housing Length:

14 5/8 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 1/8 in

Body Depth:

13 13/32 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 5/8 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

7 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

12 13/32 in

Load Capacity:

250 lb

Minimum Between Hooks:

12 13/32 in

Motor HP:

0.4 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Grease

Reeving:

1

Thermal Protection:

No

Control Cord:

7 ft

Number of Speeds:

Variable

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

26 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

16 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/8 hp

Headroom:

12 13/32 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

0.25

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.25

Body Finish:

Powder Coated

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
