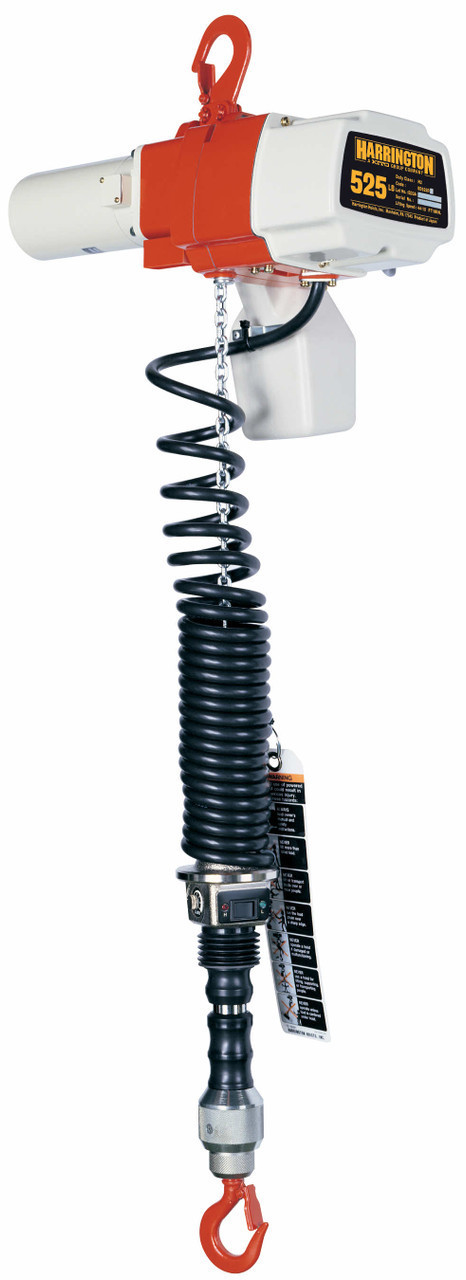

ED-DA Dual Adjustable Cylinder Control Electric Chain Hoist 6' Lift-Capacity 220lb.ED220DA Electric Chain Hoist HARRINGTON

Product Overview

The ED220DA-6 HARRINGTON ED-DA Dual Adjustable Cylinder Control Electric Chain Hoist is engineered to transform your lifting experience. With a substantial lift capacity of 220 lbs and a reach of 6 feet, this hoist offers unparalleled versatility suitable for various industrial and commercial applications. Say goodbye to unwieldy manual hoisting and hello to efficient, powered lifting.

What distinguishes the ED220DA is its innovative dual adjustable cylinder control system, allowing operators to customize lifting speed and acceleration. This feature not only enhances operational efficiency but also maximizes comfort for the user, eliminating the strain that often accompanies heavy lifting tasks. Whether you are hoisting large equipment or delicate materials, the ED220DA ensures smooth, controlled motions, significantly reducing the risk of accidents associated with jerky movements.

• Capacity of 220 lbs for various lifting tasks
• 6 feet lifting height suitable for multiple applications
• Dual adjustable cylinder control for personalized speed and acceleration
• Built from high-quality materials for exceptional durability
• Minimal maintenance requirements for cost-effectiveness
• Motor thermal protection device for enhanced safety
• Upper and lower limit switches to prevent overload
• Load chain guide to prevent jamming and ensure smooth operation
• User-friendly ergonomic design for easy handling
• Ideal for factories, warehouses, and construction sites

Safety is paramount, and with the ED220DA, you can work with absolute confidence. Engineered with multiple safety features, including a motor thermal protection device, upper and lower limit switches, and a thoughtfully designed load chain guide, this hoist protects both the operator and the load. These features contribute to a safe working environment, allowing you to focus on productivity without compromising safety.

The ergonomic design of the ED220DA enhances user experience, reducing operator fatigue and promoting efficiency during long working hours. The intuitive controls and lightweight construction make it easy to operate, ensuring anyone can handle heavy lifting tasks with ease. Whether employed in a factory setting or used for material handling in a warehouse, this hoist turns potentially strenuous jobs into effortless operations.

Elevate your operations with the ED220DA-6 HARRINGTON ED-DA Dual Adjustable Cylinder Control Electric Chain Hoist. Limited lifting capacity should no longer be a concern; this hoist is here to provide solutions that enhance performance and streamline workflow. Take the leap to improved lifting processes—place your order today and experience the outstanding efficiency and reliability of the ED220DA!

Product Specifications

.

Part Number:

ED220DA-6

Color:

White and Orange

Hoist Lift:

6 ft

Product:

Electric Chain Hoist, 220 lb, 6 ft, Hook Mounted-No Trolley, White and Orange=Hoist Mount=Hook Mounted-No Trolley

Includes:

Safety Latch, Safety Standards

Lift Speed:

43/10 fpm

Housing Width:

6 13/64 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

5 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

6 7/32 in

Body Depth:

5 in

For Minimum Beam Height:

Not Applicable

Body Length:

16 29/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

6 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

37 3/16 in

Load Capacity:

220 lb

Minimum Between Hooks:

37 1/5 in

Motor HP:

0.4 hp

Phase:

1

Standards:

Safety Latch, Safety Standards

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Classification:

H2

Control Cord:

6 ft

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Easy-Touch High/Low Speed Selection, Ergonomic In-Line Handgrip Control, High Speed Motor, Quick-Switch Removable Bottom Hook, Standard Double-Braking System

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

43 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

10 fpm

Pendant IP Rating:

IP65

Chain Finish:

Enamel

Controls:

=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

180

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/8 hp

Headroom:

37 3/16 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

220 lb

Current at Minimum Voltage:

0.208333333333333

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.208333333333333

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by External Controls
