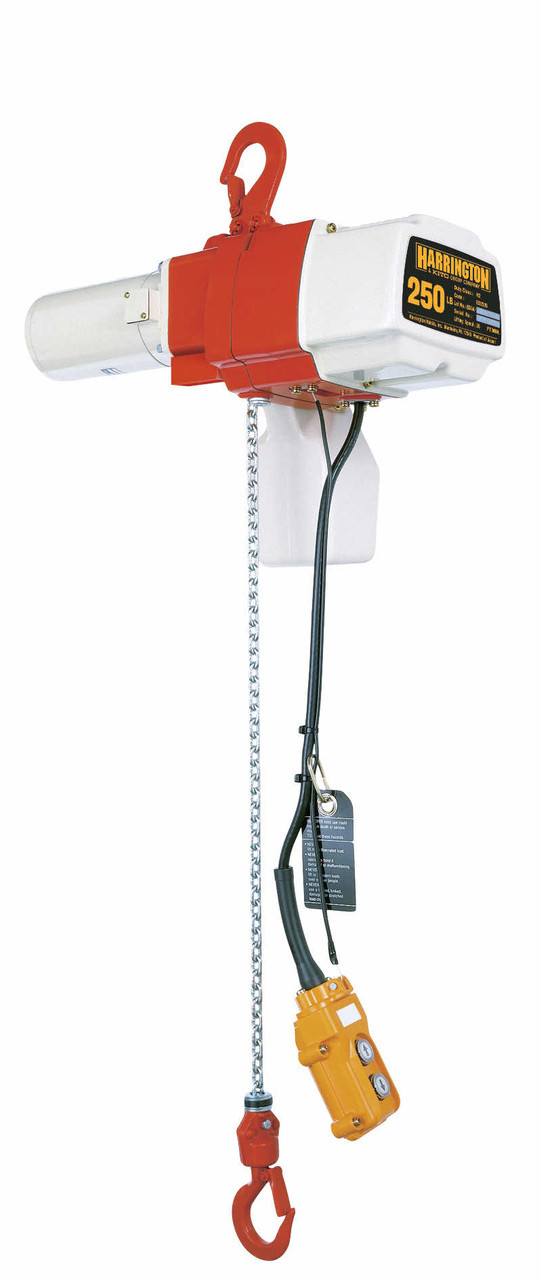

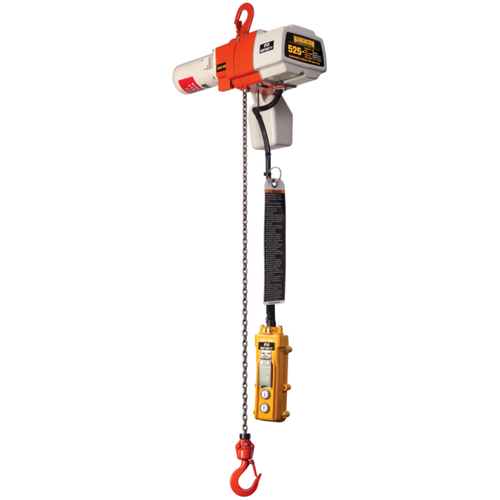

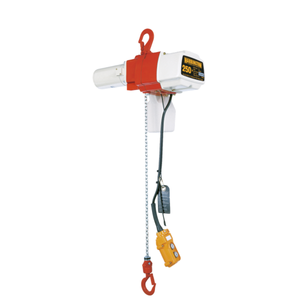

ED-DS Dual Speed Electric Chain Hoist 10' Lift-Capacity 1050 lb.ED1050DS Electric Chain Hoist HARRINGTON

Product Overview

The ED1050DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist is a game-changer when it comes to improving your product handling capabilities. This electric chain hoist features a dual speed motor, allowing you to have complete control and accuracy during your lifting tasks. Whether you need to lift 1050 lb., this hoist delivers exceptional performance every time.With a lift height of 10', the ED1050DS-10 makes it effortless to access elevated areas. No more struggling or wasting time trying to reach high points. This hoist is designed to boost your efficiency. Its versatility and strength make it the perfect choice for construction sites, warehouses, and other industrial applications.Durability and longevity are vital for heavy-duty equipment, and the ED1050DS-10 excels in both areas. Meticulously constructed to withstand the harshest industrial environments, this hoist operates seamlessly even in the most demanding conditions. You can trust that it will continue to perform flawlessly for years to come.When it comes to handling heavy loads, compromising on quality is simply not an option. The ED1050DS-10 stands above its competitors with its remarkable power and reliability. As a trusted name in the industry, Harrington has ensured that this electric chain hoist meets the highest standards of performance.Upgrade your lifting capabilities and take your business to new heights with the ED1050DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist. It combines durability, versatility, and precision to provide you with the ultimate lifting solution. Make the smart investment in this high-performing hoist and experience the significant difference it can make in your daily operations.

Product Specifications

.

Part Number:

ED1050DS-10

Color:

Red

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,050 lb, 10 ft, Hook Mounted-No Trolley, Red=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

22/6 fpm

Housing Width:

18 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

5 in

Housing Length:

16 15/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

18 in

Body Depth:

5 in

For Minimum Beam Height:

Not Applicable

Body Length:

16 15/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

20 1/2 in

Load Capacity:

1,050 lb

Minimum Between Hooks:

20 1/2 in

Motor HP:

0.8 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

2

Thermal Protection:

No

Control Cord:

6 ft

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Standard Double-Braking System

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

22 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

6 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

180

Duty Classification:

H3

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

3/4 hp

Headroom:

20 1/2 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,050 lb

Current at Minimum Voltage:

0.416666666666667

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.416666666666667

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
