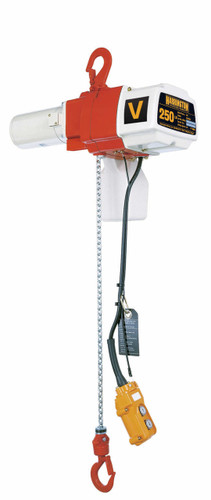

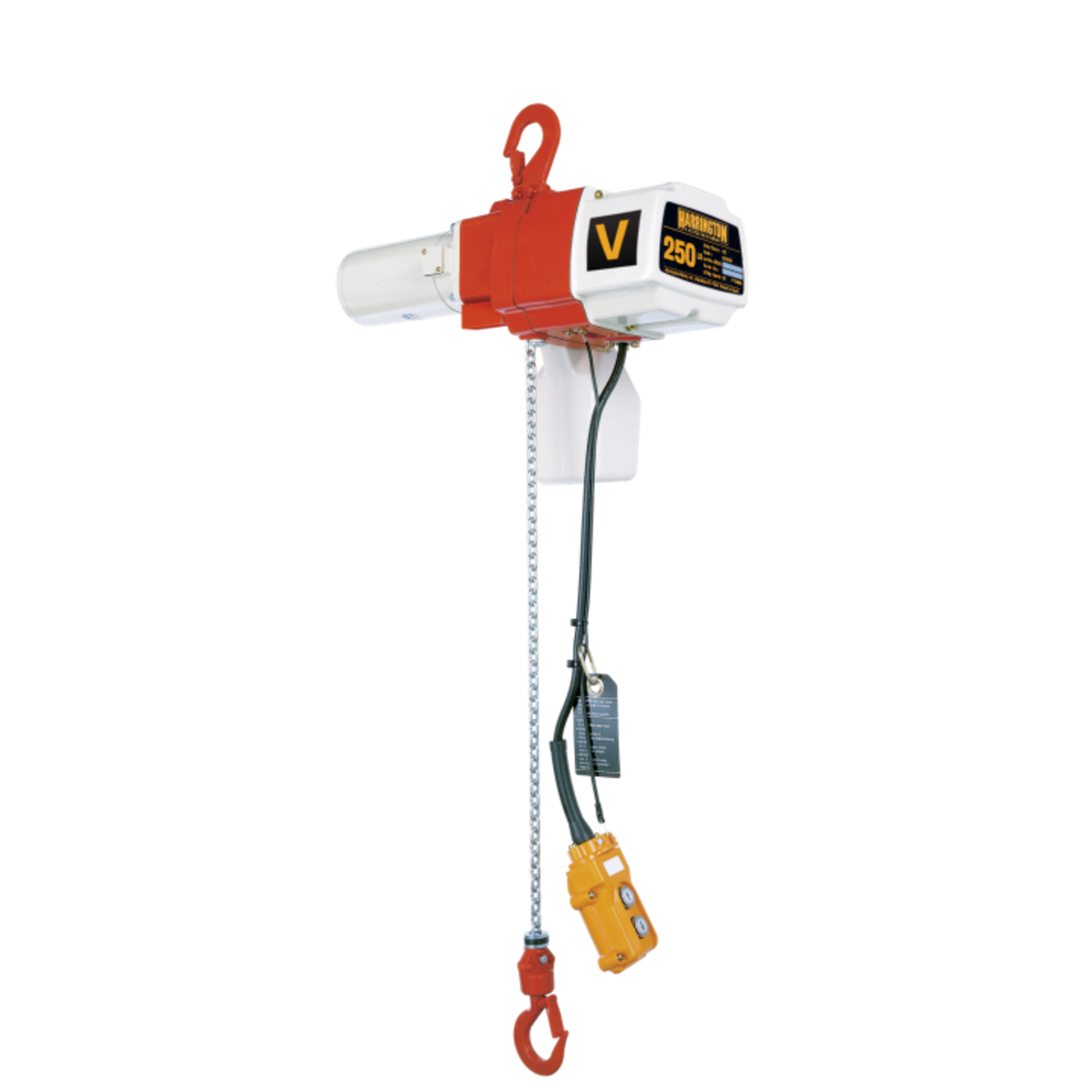

EDV Variable Single Speed Electric Hoist 10' Lift-Capacity 1000 lb. ED1000V Electric Chain Hoist HARRINGTON

Product Overview

Enhance your lifting capabilities with the powerful and versatile ED1000V-10 HARRINGTON EDV Variable Single Speed Electric Hoist. This exceptional hoist offers a 10' lift and is designed to handle Capacity ranging from 1000 lb. With its Smart Speed Technology, you can precisely position awkward loads with ease.The ED1000V Electric Chain Hoist is your perfect companion whether you're in the construction industry or need a reliable hoisting solution for your workshop. Its dual-speed functionality ensures efficient and accurate load handling, while its single-phase design makes it compatible with a wide range of power sources.Built to withstand the demands of heavy-duty lifting, the ED1000V-10 HARRINGTON EDV Electric Hoist is constructed with high-quality materials that guarantee durability and reliability. It will outperform and outlast other hoists on the market.Featuring a compact and ergonomic design, the ED1000V Electric Hoist is easy to use and transport. Its lightweight yet sturdy frame allows for effortless installation and maneuverability, making it an ideal choice for both indoor and outdoor applications.Equipped with advanced safety features, this electric hoist ensures the protection of both operators and the load. The built-in overload protection system prevents damage caused by excessive weight, while the upper and lower limit switches ensure precise load positioning and prevent accidental equipment damage.Not only is the ED1000V-10 HARRINGTON EDV Electric Hoist powerful and reliable, but it is also easy to maintain. Its simple and intuitive design allows for hassle-free maintenance, reducing downtime and allowing you to focus on completing your tasks efficiently.Upgrade your lifting equipment today with the ED1000V-10 HARRINGTON EDV Electric Hoist and experience enhanced lifting capabilities, improved efficiency, and increased productivity. This hoist is built to last and can withstand the most demanding lifting tasks. Choose the ED1000V-10 HARRINGTON EDV Electric Hoist and elevate your lifting capabilities to new heights.

Product Specifications

.

Part Number:

ED1000V-10

Color:

White and Orange

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,000 lb, 10 ft, Hook Mounted-No Trolley, White and Orange=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

8/22 fpm

Housing Width:

9 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

18 in

Housing Length:

17 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

9 in

Body Depth:

18 in

For Minimum Beam Height:

Not Applicable

Body Length:

17 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

7 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

20 1/2 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

20 1/2 in

Motor HP:

0.8 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Grease

Reeving:

2

Thermal Protection:

No

Control Cord:

7 ft

Number of Speeds:

Variable

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

22 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

8 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

180

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

3/4 hp

Headroom:

20 1/2 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

0.416666666666667

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.416666666666667

Body Finish:

Powder Coated

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
