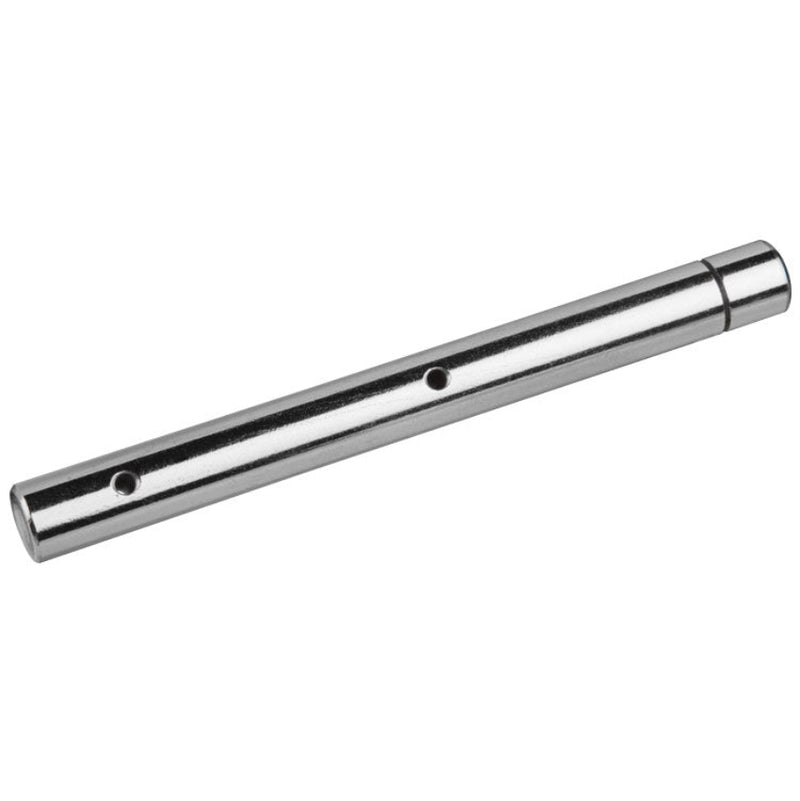

SKU: 702 | Drum Shaft ” Compatible with Lug-All Models 35-A and 40-A (Web Strap Hoists) The Precision Axle That Keeps Your Drum Spinning Safely ” OEM Drum Shaft for the 35-A and 40-A Every smooth, controlled ratcheting cycle your web strap hoist completes depends on one critical component rotating perfectly at the center of your drum: the drum shaft. The SKU 702 Drum Shaft is a genuine OEM replacement part precision-machined for use with two of Lug-All's most trusted lightweight web strap hoists ” the model 35-A, a lightweight industrial-grade 1-1/2-ton web strap come along ratchet winch hoist, and the model 40-A, a lightweight industrial-grade 2-ton web strap come along ratchet winch hoist. When your drum shaft is bent, worn, or damaged, smooth drum rotation is impossible ” and operating a loaded hoist with a compromised shaft puts both your equipment and your crew at serious risk. Lug-AllLug-All The drum shaft is the central axle around which the hoist drum rotates during every winding and unwinding cycle. It must maintain precise dimensional tolerances under repeated load cycles to ensure the drum stays correctly aligned within the main frame, rotates without binding, and transfers ratchet force evenly through the strap winding system. The shaft must be able to handle the maximum load applied and this includes both static and dynamic loads ” meaning even a small amount of deformation or wear can introduce misalignment, increased friction, uneven strap winding, and accelerated wear on surrounding components including the drum, bushings, and frame. Gram Conveyor Lug-All Web Strap Hoists are made with high-strength aluminum alloy castings and manufactured in the United States, and every OEM replacement part ” including this drum shaft ” is produced to the precise dimensional specifications required by the original design. Each hoist meets ANSI B30.21 specifications and is tested to 125 percent of its rated load, so every internal component must be capable of performing reliably at those elevated stress levels throughout the life of the hoist. Lug-AllLug-All These hoists are deployed in some of the most demanding environments in industry. Originally developed to pull and tension energized power lines, Lug-All web strap hoists are used internationally by utilities and utility service companies, typically in bucket trucks or for underground utility work, and are growing in popularity with industrial maintenance personnel who prefer web straps over cables or chains. In these conditions, a properly functioning drum shaft isn't optional ” it's foundational to safe operation. Lug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. The SKU 702 Drum Shaft delivers exactly that assurance. Lug-All

Product Specifications SpecificationDetailSKU702Part NameDrum ShaftCompatible ModelsLug-All 35-A and 40-AHoist TypeWeb Strap Come-Along / Ratchet Winch HoistModel 35-A Capacity1-1/2 Ton (3,000 lbs double / 1,500 lbs single line)Model 35-A Single Line Lift15 FTModel 35-A Double Line Lift7 FT 6 INModel 40-A Capacity2 Ton (4,000 lbs double / 2,000 lbs single line)Model 40-A Single Line Lift10 FTModel 40-A Double Line Lift5 FTNet Weight (35-A Parent Unit)Under 13 LBSNet Weight (40-A Parent Unit)Just over 13 LBSPart TypeOEM Replacement ComponentFunctionCentral drum rotation axleComplianceANSI B30.21Country of ManufactureUSA

Signs Your Drum Shaft Needs Replacing If you notice your drum is wobbling, binding, rotating unevenly, or causing the web strap to wind off-center, the drum shaft may be worn or out of tolerance. Regular maintenance and inspection of hoist parts are essential for ensuring safe and efficient operation ” addressing wear or malfunctions promptly contributes to the longevity and reliability of the hoist system. Don't wait for a shaft failure under load ” inspect your drum shaft during routine maintenance and replace it proactively with the correct OEM part. BH-USA This drum shaft is compatible with Lug-All models 35-A and 40-A only. Please verify your hoist model number before ordering.
