SKU:
CF050-15-15
Condition:
New
Availability:
In stock
Weight:
96.50 LBS
Shipping:
Free Shipping
Part Number:
CF050-15
Color:
Yellow
Hoist Lift:
15 ft
Product:

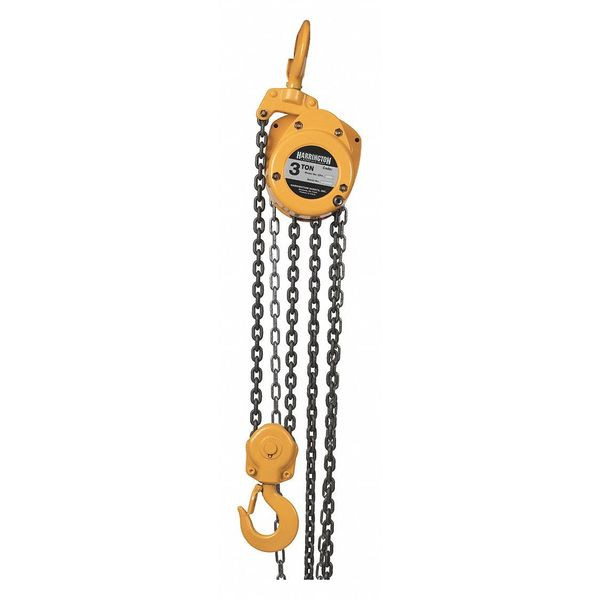

Manual Chain Hoist, 10000 lb., Lift 15 ft.=Hoist Mount=Hook Mounted-No Trolley
Housing Width:
13 1/2 in
Manufacturers Warranty Length:
2 yr
Housing Depth:
6 in
Housing Length:
24 3/8 in
For Minimum Beam Flange Width:
Not Applicable
For Minimum Beam Flange Height:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Height:
Not Applicable
Body Width:
13 1/2 in
Body Depth:
6 in
Body Material:
Die-Cast Aluminum
Maximum Lifting Length:
15 ft
Lifting Hook Opening Width:
1 13/16 in
Minimum Retracted Length:
24 13/32 in
Load Capacity:
10,000 lb
Minimum Between Hooks:
24 1/2 in
Standards:
ANSI/ASME B30.16, ANSI/ASME HST-2M
Item:
Manual Chain Hoist
Brake:
Weston Style
Trolley Configuration:
Hook Mounted-No Trolley
Features:
Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Not Included
Overload Protection Included:
No
Chain Grade:
Grade 100
Included Components:
Safety Latch Hooks
Chain Finish:
Nickel Plated
Controls:
=Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
3
Headroom:
24 13/32 in
Includes Brake:
Brake Included
Lifting Hook Type:
Hook with Safety Latch
Maximum Lifting Capacity:
10,000 lb
Number of Load Chains:
1
