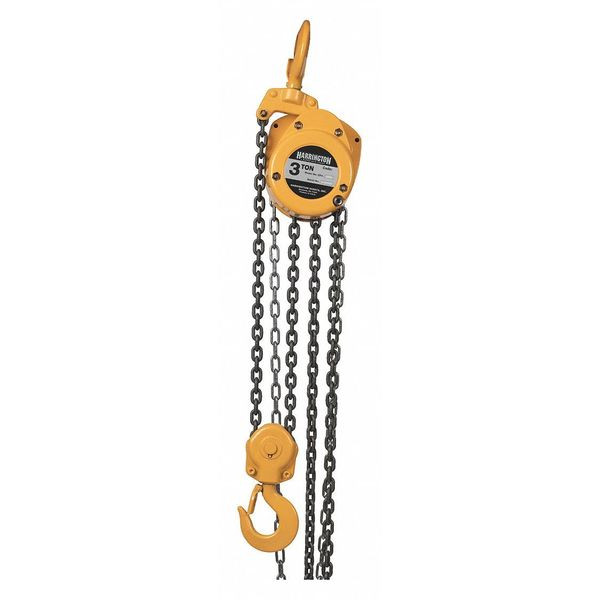

Product Overview
The CF030-20 HARRINGTON CF Hand Chain Hoist is a reliable and efficient tool designed to meet all your lifting needs. With a lifting capacity ranging from 3 Ton, this hoist is suitable for both light and heavy-duty applications.Built with a die-cast aluminum body, the CF030-20 is able to withstand even the toughest conditions. Its high-strength, heat-treated main pinion shaft and load gear ensure durability and longevity, making it a long-lasting investment.One of the standout features of this hand chain hoist is its smooth and effortless lifting operation. Equipped with pre-lubricated ball bearings and precision machined gears, the hoist guarantees a seamless lifting experience. The Weston-style load brake further enhances safety and control, providing peace of mind while handling your lifting tasks.Unlike other hoists on the market, the CF030-20 requires minimal maintenance. Its top-notch construction and high-quality components eliminate the need for frequent repairs and replacements, saving you time and money in the long run.Versatility is another key attribute of the CF030-20. It is suitable for both industrial and commercial applications, making it an excellent choice for industries such as construction, manufacturing, and warehouses. No matter the task at hand, this hoist delivers exceptional performance, reliability, and efficiency.In conclusion, the CF030-20 HARRINGTON CF Hand Chain Hoist is the perfect combination of simplicity and performance. With its durable construction, effortless lifting operation, and minimal maintenance requirements, it is an excellent investment for any lifting needs. Elevate your lifting experience today with the CF030-20 and enjoy the convenience and reliability that this hand chain hoist brings.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number CF030-20
Color Yellow
Hoist Lift 20 ft
Product Manual Chain Hoist, 6000 lb., Lift 20 ft.=Hoist Mount=Hook Mounted-No Trolley
Housing Width 9 1/2 in
Manufacturers Warranty Length 2 yr
Housing Depth 6 in
Housing Length 23 1/4 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 9 13/32 in
Body Depth 6 in
Body Material Die-Cast Aluminum
Maximum Lifting Length 20 ft
Lifting Hook Opening Width 1 11/16 in
Minimum Retracted Length 23 3/16 in
Load Capacity 6,000 lb
Minimum Between Hooks 23 1/4 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Not Included
Overload Protection Included No
Chain Grade Grade 100
Included Components Safety Latch Hooks
Chain Finish Nickel Plated
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 2
Headroom 23 3/16 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 6,000 lb
Number of Load Chains 1
