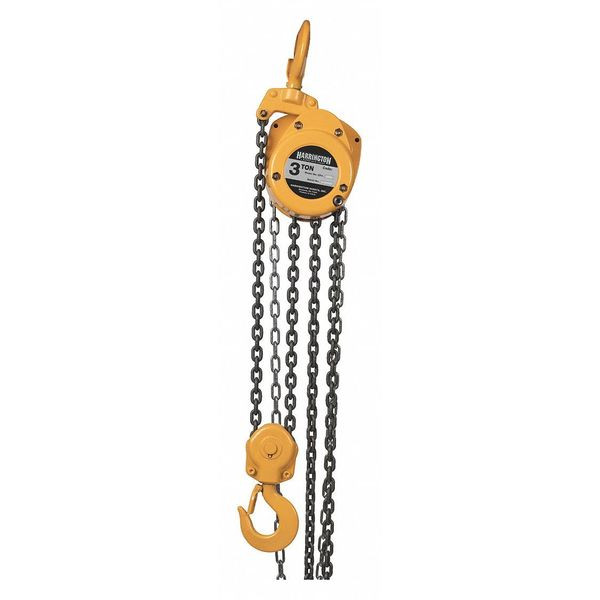

CF Hand Chain Hoist 15' Lift-Capacity 3 Ton CF030 Hand Chain Hoist HARRINGTON

Product Overview

The CF030-15 HARRINGTON CF Hand Chain Hoist is a powerful and reliable tool that is a must-have for any lifting operation. With a capacity ranging from 3 Ton, this hoist can handle heavy loads with ease. Whether you're working in a warehouse, construction site, or any other industrial setting, the CF030-15 HARRINGTON CF Hand Chain Hoist will meet all your lifting needs.One of the standout features of this hoist is its construction. The die-cast aluminum body offers exceptional strength and durability, ensuring that it can withstand even the toughest jobs. The main pinion shaft and load gear are heat-treated to further enhance their strength and reliability. With this hoist, you can trust that it will stand up to the demands of your work environment.In addition to its sturdy construction, the CF030-15 HARRINGTON CF Hand Chain Hoist is designed for smooth and effortless lifting. It features pre-lubricated ball bearings and precision machined gears, which work together to provide a seamless lifting experience. The Weston-style load brake adds an extra layer of safety and control, ensuring that your load stays securely in place.Maintenance is also a breeze with the CF030-15 HARRINGTON CF Hand Chain Hoist. Thanks to its high-quality materials and design, it requires minimal upkeep. This means you can spend less time on maintenance and more time getting the job done.When it comes to lifting, you need a hoist that you can rely on. The CF030-15 HARRINGTON CF Hand Chain Hoist surpasses expectations with its exceptional performance and durability. Whether you're lifting heavy machinery, equipment, or materials, this hoist is up to the task. Don't settle for subpar lifting equipment ‚ choose the CF030-15 HARRINGTON CF Hand Chain Hoist and experience the difference it can make in your operations.

Product Specifications

.

Part Number:

CF030-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Manual Chain Hoist, 6000 lb., Lift 15 ft.=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

9 1/2 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

6 in

Housing Length:

23 1/4 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

9 13/32 in

Body Depth:

6 in

Body Material:

Die-Cast Aluminum

Maximum Lifting Length:

15 ft

Lifting Hook Opening Width:

1 11/16 in

Minimum Retracted Length:

23 3/16 in

Load Capacity:

6,000 lb

Minimum Between Hooks:

23 1/4 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

No

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Headroom:

23 3/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

6,000 lb

Number of Load Chains:

1
