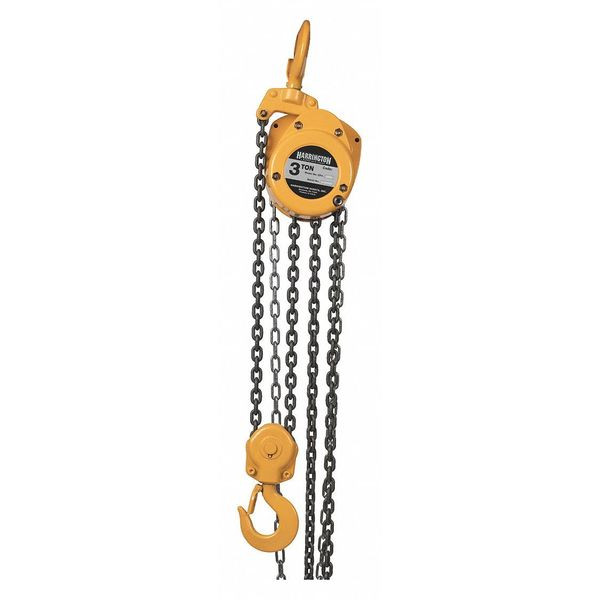

CF Hand Chain Hoist 10' Lift-Capacity 3 Ton CF030 Hand Chain Hoist HARRINGTON

Product Overview

The CF030-10 Hand Chain Hoist by Harrington is a robust and reliable solution for heavy lifting tasks. With its durable die-cast aluminum body and high-strength main pinion shaft, this hoist is built to withstand even the toughest working conditions. Engineered for seamless operation, the CF030-10 features pre-lubricated ball bearings and finely machined gears, ensuring smooth and efficient lifting every time. No more struggling with heavy loads ‚ this hoist offers effortless lifting power. The Weston-style load brake enhances safety and control, providing peace of mind during lifting operations. What sets the CF030-10 apart is its versatility. With Capacity ranging from 3 Ton, it can handle a wide range of load sizes. Whether you need it for light or heavy-duty lifting, this hoist delivers outstanding results every time. Its reliable performance makes it suitable for various applications.Investing in the CF030-10 Hand Chain Hoist means investing in reliability and efficiency. With minimal maintenance required, you can focus on your work instead of worrying about equipment breakdowns. This hoist is built to withstand the harshest conditions, ensuring that it will continue to perform at its best even after years of heavy use. In summary, the CF030-10 Hand Chain Hoist is a durable and efficient lifting solution. Its sturdy construction, smooth operation, and versatile Capacity make it the ideal choice for any lifting task. Do not settle for subpar equipment ‚ choose the CF030-10 and experience the unparalleled quality and dependability that Harrington is known for.

Product Specifications

.

Part Number:

CF030-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Manual Chain Hoist, 6000 lb., Lift 10 ft.=Hoist Mount=Hook Mounted-No Trolley

Includes:

Heat Treated Alloy Steel Hooks

Housing Width:

9 1/2 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

6 in

Housing Length:

23 1/4 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

9 13/32 in

Body Depth:

6 in

Body Material:

Die-Cast Aluminum

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

1 11/16 in

Minimum Retracted Length:

23 3/16 in

Load Capacity:

6,000 lb

Minimum Between Hooks:

23 1/4 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

No

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Headroom:

23 3/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

6,000 lb

Number of Load Chains:

1
