Part Number
Part Number CF020-20
Color Yellow
Hoist Lift 20 ft

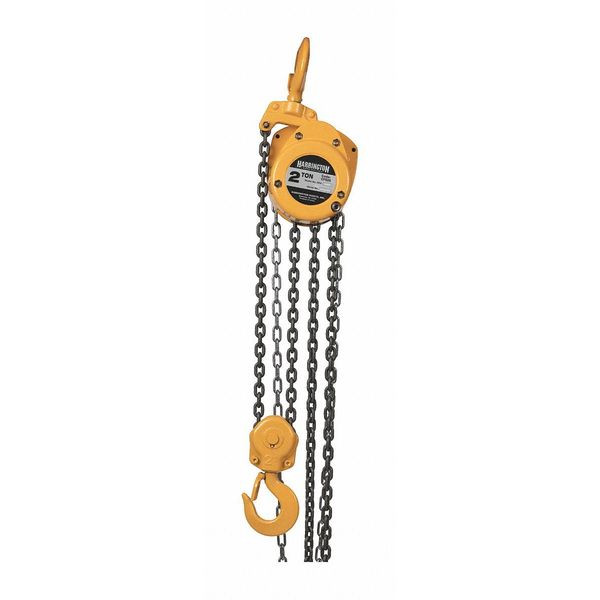

Product Manual Chain Hoist, 4000 lb., Lift 20 ft.=Hoist Mount=Hook Mounted-No Trolley
Includes Heat Treated Alloy Steel Hooks
Housing Width 8 in
Manufacturers Warranty Length 2 yr
Housing Depth 5 3/4 in
Housing Length 20 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 8 in
Body Depth 5 13/16 in
Body Material Die-Cast Aluminum
Maximum Lifting Length 20 ft
Lifting Hook Opening Width 1 13/32 in
Minimum Retracted Length 20 3/32 in
Load Capacity 4,000 lb
Minimum Between Hooks 20 in

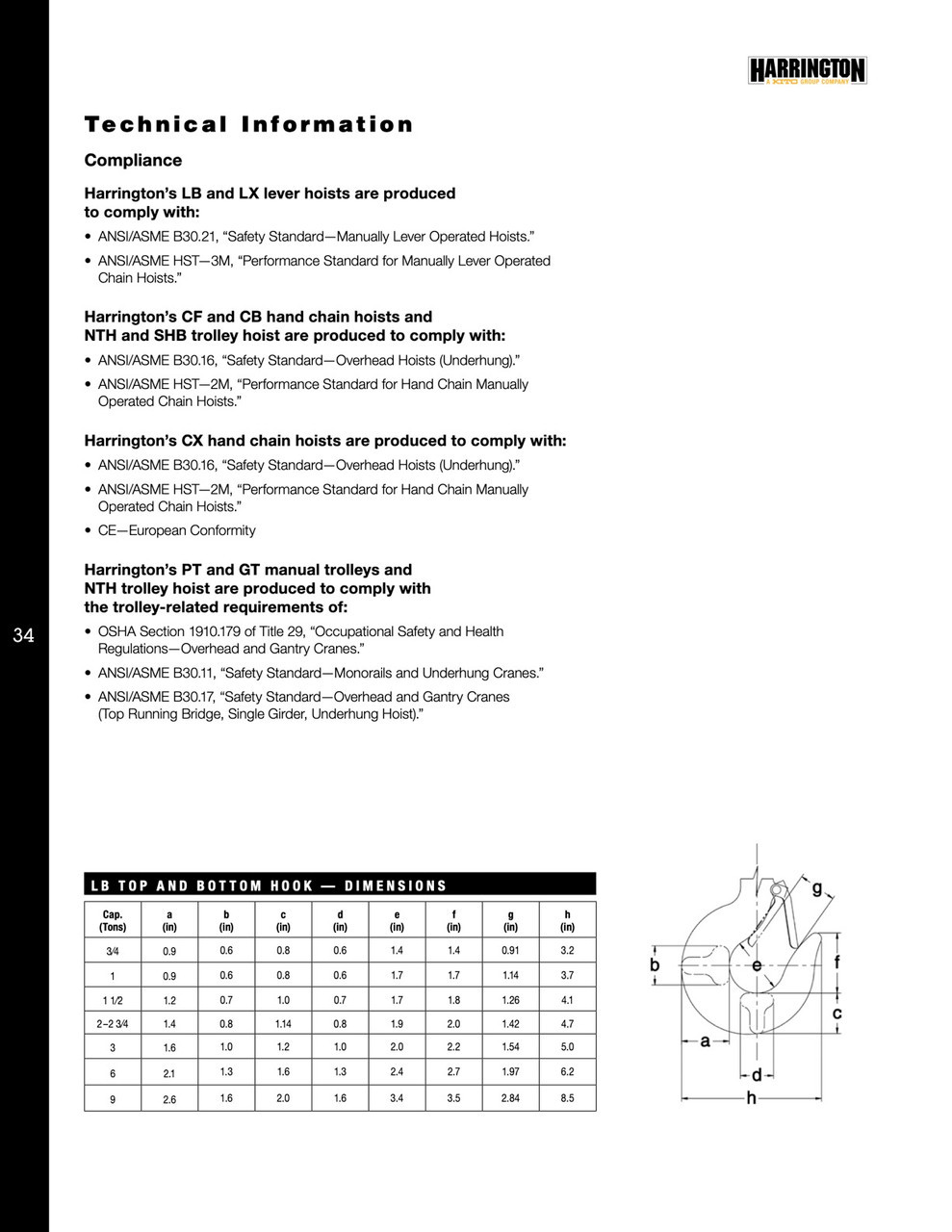

Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Not Included
Overload Protection Included No
Chain Grade Grade 100
Included Components Safety Latch Hooks
Chain Finish Nickel Plated
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 2
Headroom 20 3/32 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 4,000 lb
Number of Load Chains 1
