Product Overview

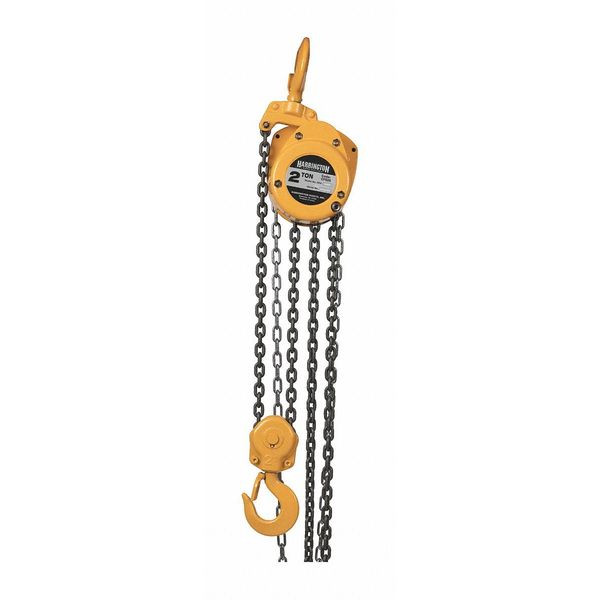

The CF020-15 HARRINGTON CF Hand Chain Hoist is a game-changer in the world of lifting tools. With its unparalleled simplicity and ultimate performance, this hoist is designed to provide users with a powerful lifting experience like no other. Available in Capacity ranging from 2 Tons, the CF020-15 is built to withstand even the toughest lifting operations.One of the standout features of this hoist is its construction. Made with a die-cast aluminum body, the CF020-15 is not only lightweight but also incredibly durable. Its high-strength, heat-treated main pinion shaft and load gear further enhance its longevity, ensuring it will last in any work environment.Smooth and effortless lifting capabilities are another advantage of the CF020-15. Equipped with pre-lubricated ball bearings, precision machined gears, and a Weston-style load brake, this hoist offers easy and seamless lifting. With minimal maintenance required, users can rely on the CF020-15 to consistently deliver outstanding functionality even in the most demanding conditions.Safety is a top priority, and Harrington's CF hoist is designed with that in mind. With a reliable and efficient solution, the CF020-15 provides peace of mind during lifting operations. Stocked with all the necessary features, this hoist ensures long-lasting service and can handle a wide range of lifting tasks with ease.Regardless of the load size, the CF020-15 guarantees excellent performance and efficiency. Elevate your lifting operations to new heights with the CF020-15 HARRINGTON CF Hand Chain Hoist and experience the reliability and peace of mind that comes with this exceptional lifting solution. Trust in the power of the CF020-15 to get the job done, no matter how tough it may be.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number CF020-15
Color Yellow
Hoist Lift 15 ft
Product Manual Chain Hoist, 4000 lb., Lift 15 ft.=Hoist Mount=Hook Mounted-No Trolley
Housing Width 8 in
Manufacturers Warranty Length 2 yr
Housing Depth 5 3/4 in
Housing Length 20 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 8 in
Body Depth 5 13/16 in
Body Material Die-Cast Aluminum
Maximum Lifting Length 15 ft
Lifting Hook Opening Width 1 13/32 in
Minimum Retracted Length 20 3/32 in
Load Capacity 4,000 lb
Minimum Between Hooks 20 in

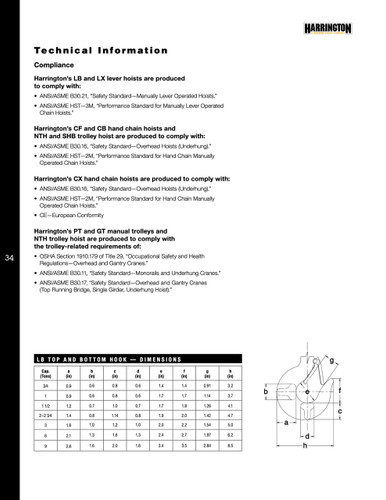

Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Not Included
Overload Protection Included No
Chain Grade Grade 100
Included Components Safety Latch Hooks
Chain Finish Nickel Plated
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 2
Headroom 20 3/32 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 4,000 lb
Number of Load Chains 1
