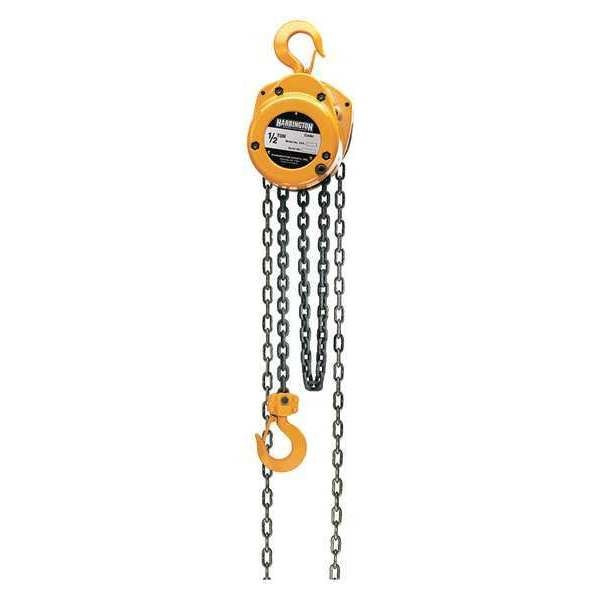

HARRINGTON CF Hand Chain Hoist 20' Lift-Capacity 1/2 Ton CF005 Hand Chain Hoist

Product Overview

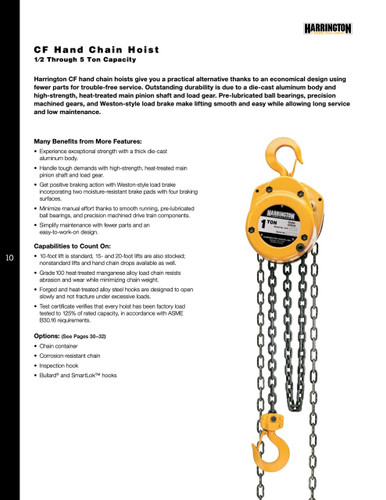

The CF005-20 HARRINGTON CF Hand Chain Hoist is a powerful and reliable tool designed to make your lifting tasks effortless. Built with a sturdy die-cast aluminum body, this hoist can withstand even the toughest conditions and deliver consistent lifting power. Whether you need to lift 1/2 tons loads, this hoist has got you covered with its range of Capacity.What sets the CF005-20 HARRINGTON CF Hand Chain Hoist apart is its durability. The heat-treated main pinion shaft and load gear ensure that this hoist can handle heavy loads with ease. It is equipped with pre-lubricated ball bearings and precision machined gears, delivering smooth and effortless lifting every time. The Weston-style load brake adds an extra layer of safety and control during operation.One of the best features of this hoist is its minimal maintenance requirement. With proper care, it guarantees a long service life, saving you time and money. Its ergonomic design and user-friendly features make it easy to use and handle. The hand chain is smooth and easy to operate, providing the operator with optimal control and comfort.The CF005-20 HARRINGTON CF Hand Chain Hoist is suitable for a wide variety of applications, making it a versatile choice for any lifting task. Whether you are working in construction, manufacturing, or any other industry that requires lifting heavy loads, this hoist will deliver the performance you need.Investing in the CF005-20 HARRINGTON CF Hand Chain Hoist is a game-changer in the industry. Its unmatched performance, durability, and reliability make it the perfect choice for any lifting application. Say goodbye to struggling with heavy loads and experience the difference this hoist can make in your lifting operations. Choose the CF005-20 HARRINGTON CF Hand Chain Hoist and get the job done efficiently and effectively.

Product Specifications

.

Part Number:

CF005-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Manual Chain Hoist, 1000 lb., Lift 20 ft.=Hoist Mount=Hook Mounted-No Trolley

Includes:

Heat Treated Alloy Steel Hooks

Housing Width:

6 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

5 1/2 in

Housing Length:

12 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

5 29/32 in

Body Depth:

5 13/32 in

Body Material:

Die-Cast Aluminum

Maximum Lifting Length:

20 ft

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

12 13/16 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

12 3/4 in

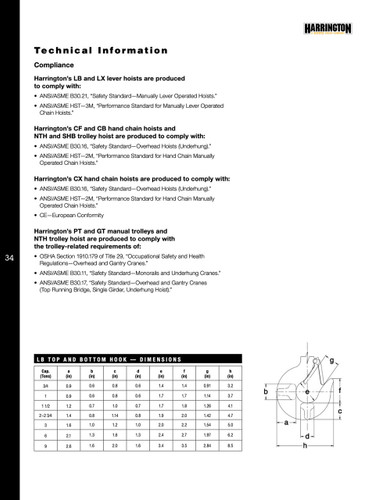

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

No

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

12 13/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Number of Load Chains:

1
