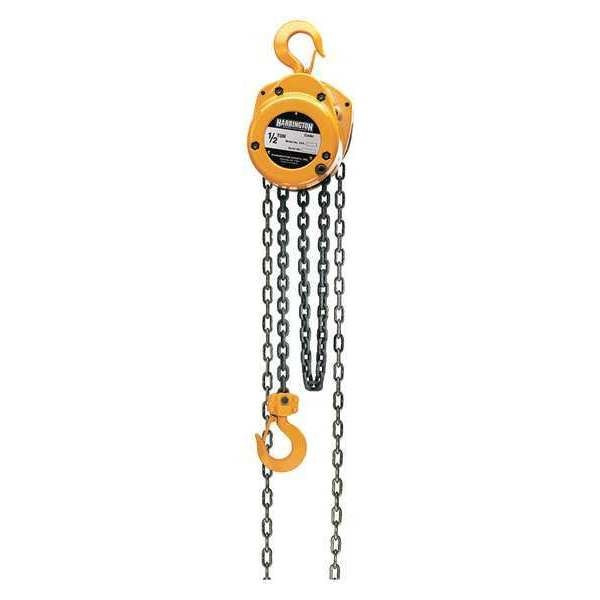

HARRINGTON CF Hand Chain Hoist 15' Lift-Capacity 1/2 Tons CF005 Hand Chain Hoist

Product Overview

Experience the ease and efficiency of lifting with the CF005-15 HARRINGTON CF Hand Chain Hoist. This hoist is designed to simplify your lifting tasks and deliver exceptional performance.Built with a sturdy die-cast aluminum body, the CF005-15 is highly durable and reliable. Its high-strength pinion shaft and load gear ensure that it can withstand even the harshest conditions, making it a long-lasting investment.The precision machined gears and pre-lubricated ball bearings make lifting effortless. With its smooth operation, you can easily control and maneuver heavy loads with minimal effort. The Weston-style load brake guarantees the safety and security of your lifting operations.Not only is this hoist built to last, but it also requires minimal maintenance. Its design ensures a long service life, reducing downtime and increasing productivity. You can rely on the CF005-15 to consistently deliver reliable performance, allowing you to focus on your lifting tasks.With Capacity ranging from 1/2 tons, this hoist offers exceptional strength and efficiency. Whether you need to lift small or heavy loads, the CF005-15 is up to the task. Its versatility makes it suitable for various lifting needs.Elevate your lifting experience with the CF005-15 HARRINGTON CF Hand Chain Hoist. Its simplicity, performance, and durability make it the perfect choice for any lifting task. Trust in its precision engineering and enjoy the efficiency it brings to your workplace. Don't settle for anything less when it comes to lifting, choose the CF005-15 and experience the difference it can make.

Product Specifications

.

Part Number:

CF005-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Manual Chain Hoist, 1000 lb., Lift 15 ft.=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

6 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

5 1/2 in

Housing Length:

12 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

5 29/32 in

Body Depth:

5 13/32 in

Body Material:

Die-Cast Aluminum

Maximum Lifting Length:

15 ft

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

12 13/16 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

12 3/4 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

No

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

12 13/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Number of Load Chains:

1
