SKU:
CF005-10-10
Condition:
New
Availability:
In stock
Weight:
24.00 LBS
Shipping:
Free Shipping
Part Number:
CF005-10
Color:
Yellow
Hoist Lift:
10 ft
Product:

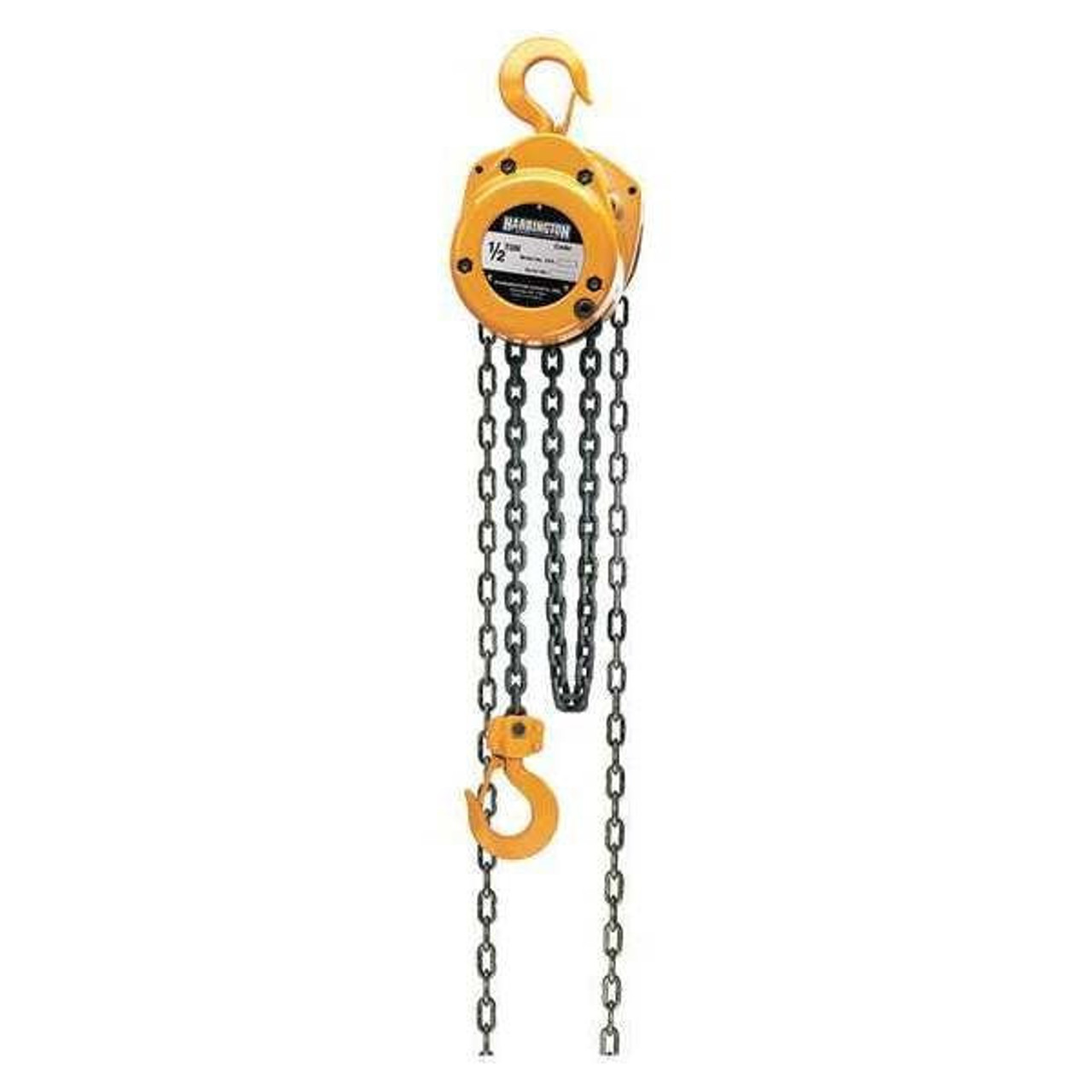

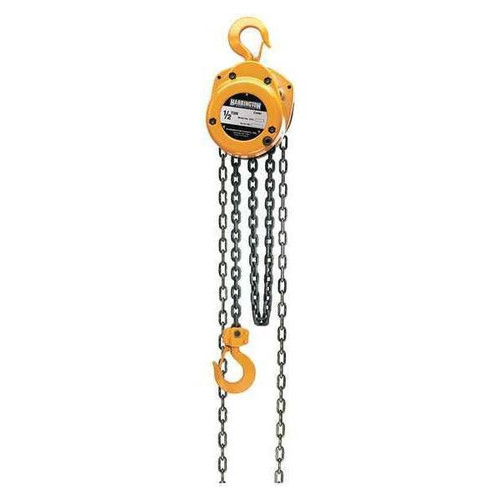

Manual Chain Hoist, 1000 lb., Lift 10 ft.=Hoist Mount=Hook Mounted-No Trolley
Housing Width:
6 in
Manufacturers Warranty Length:
2 yr
Housing Depth:
5 1/2 in
Housing Length:
12 13/16 in
For Minimum Beam Flange Width:
Not Applicable
For Minimum Beam Flange Height:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Height:
Not Applicable
Body Width:
5 29/32 in
Body Depth:
5 13/32 in
Body Material:
Die-Cast Aluminum
Maximum Lifting Length:
10 ft
Lifting Hook Opening Width:
1 3/32 in
Minimum Retracted Length:
12 13/16 in
Load Capacity:
1,000 lb
Minimum Between Hooks:
12 3/4 in
Standards:
ANSI/ASME B30.16, ANSI/ASME HST-2M
Item:
Manual Chain Hoist
Brake:
Weston Style
Trolley Configuration:
Hook Mounted-No Trolley
Features:
Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Not Included
Overload Protection Included:
No
Chain Grade:
Grade 100
Included Components:
Safety Latch Hooks
Chain Finish:
Nickel Plated
Controls:
=Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
1
Headroom:
12 13/16 in
Includes Brake:
Brake Included
Lifting Hook Type:
Hook with Safety Latch
Maximum Lifting Capacity:
1,000 lb
Number of Load Chains:
1
