Part Number
Part Number CB150-20
Color Yellow

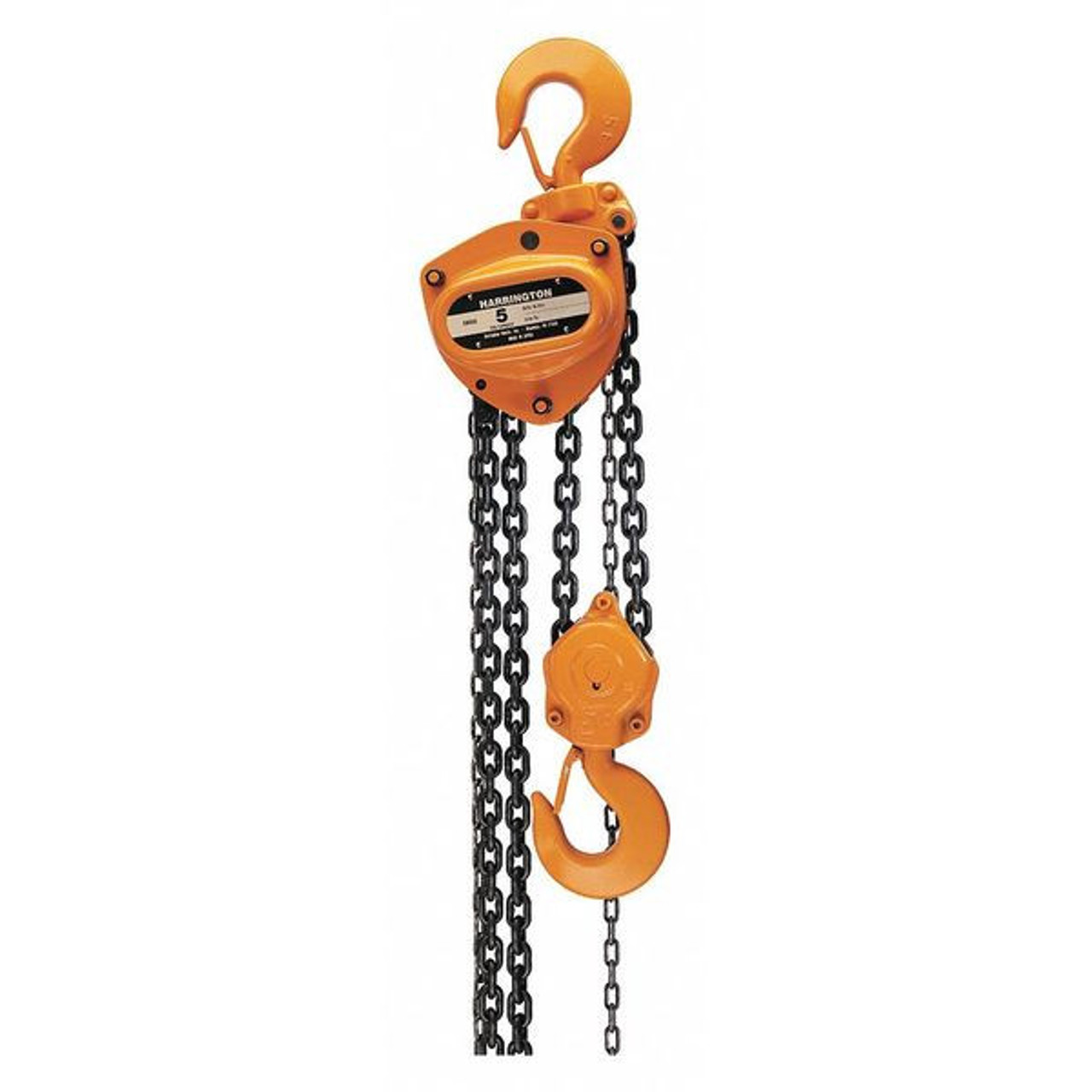

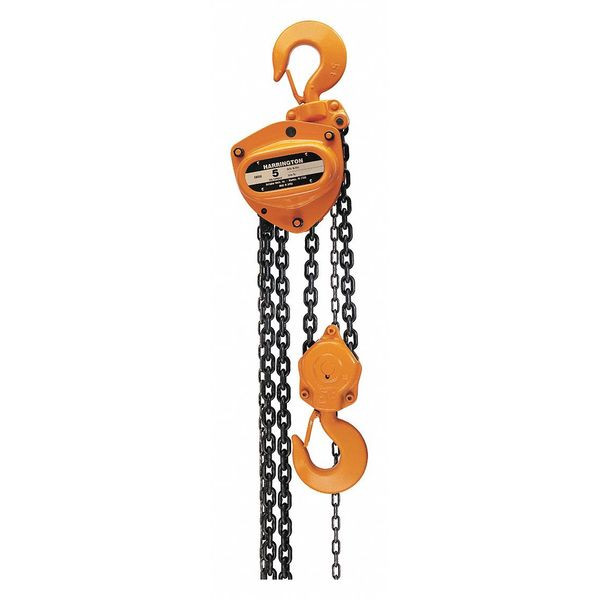

Product Manual Chain Hoist, 20 ft.Lift=Hoist Mount=Hook Mounted-No Trolley
Housing Width 19 1/2 in
Manufacturers Warranty Length 2 yr
Housing Depth 19 1/2 in
Housing Length 40 13/64 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 19 13/32 in
Body Depth 10 19/32 in
Body Material Steel
Maximum Lifting Length 20 ft
Lifting Hook Opening Width 3 3/32 in
Minimum Retracted Length 40 3/16 in
Load Capacity 30,000 lb
Minimum Between Hooks 40 1/4 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Chain Grade Grade 100
Included Components Safety Latch Hooks
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 6
Headroom 40 3/16 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 30,000 lb
Number of Load Chains 1
