CB Hand Chain Hoist 10' Lift-Capacity 10 Ton CB100 Hand Chain Hoist HARRINGTON

Product Overview

The CB100-10 HARRINGTON CB Hand Chain Hoist is a heavy-duty and reliable solution for all your industrial lifting needs. With a lifting capacity ranging from 10 ton , this hoist can handle a wide range of tasks, from lifting heavy machinery to transporting materials.Built to withstand the demands of everyday use, this hoist features a robust construction and high-quality internal components. It is designed to deliver superior performance and durability, ensuring that it can withstand the rigors of your work environment.One of the standout features of the CB100-10 is its exceptional ease of maintenance and repairability. Downtime can be costly in industrial settings, which is why this hoist is designed to be easily maintained and repaired. This makes it an ideal choice for building a reliable fleet of industrial products that you can count on day after day.Safety is also a top priority with the CB100-10. It incorporates a range of safety features, such as a robust chain and hook, to prevent accidents and ensure the well-being of your operators. Its ergonomic design further enhances safety by making it comfortable and easy to use, reducing the risk of injuries and promoting productivity.Upgrade your lifting equipment to the CB100-10 HARRINGTON CB Hand Chain Hoist and experience improved productivity and efficiency in your industrial operations. This hoist will elevate your performance and allow you to tackle even the most demanding tasks with ease. Don't settle for inferior equipment that hinders your operations. Invest in the CB100-10 today and discover the difference it can make in your workplace.

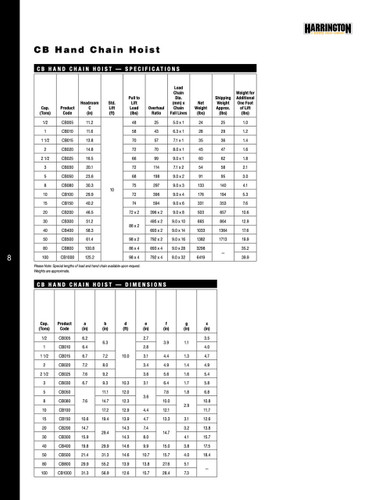

Product Specifications

.

Product:

Manual Chain Hoist, 10 ft.Lift

sku:

CB100-10

Load Capacity:

20,000 lb

Hoist Mount:

Hook Mounted - No Trolley

Hoist Overload Protection:

Yes

Pull to Lift Rated Load:

72 lb

Min Between Hooks:

20 in

Manufacturers Warranty Length:

2 yr

For Min Beam Flange Height:

Not Applicable

Lifting Hook Opening Width:

2 29/22 in

Body Depth:

7 19/22 in

For Min Beam Flange Width:

Not Applicable

Mfr Warranty Length:

2 yr

For Max Beam Flange Height:

Not Applicable

Minimum Retracted Length:

29 29/22 in

Maximum Lifting Length:

10 ft

Body Width:

17 2/16 in

Chain Length:

11 ft

Lever Length:

Not Applicable

For Max Beam Flange Width:

Not Applicable

Hoist Lift:

10 ft

Trolley Configuration:

Hook Mounted - No Trolley

Color:

Yellow

Features:

Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch

Maximum Pulling Capacity:

Not Applicable

Overload Protection Included:

Yes

Number of Load Chains:

1

Maximum Lifting Capacity:

20,000 lb

Resistance Properties:

Abrasion Resistant, Corrosion Resistant

Includes Brake:

Brake Included

Brake Type:

Weston Style

Operating Position:

Vertical

Mount Type:

Hook Mounted - No Trolley

Chain Grade:

Grade 100

Lifting Hook Type:

Hook with Safety Latch

Chain Material:

Manganese Alloy

Included Components:

Safety Latch Hooks

Number of Reeves:

4

Includes Clutch:

Clutch Included

Body Material:

Steel

Power Source:

Manual

Lifting Hook Material:

Carbon Steel

Headroom:

29 29/22 in
