SKU:
CB030-20-20
Condition:
New
Availability:
In stock
Weight:
43.00 LBS
Shipping:
Free Shipping
Part Number:
CB030-20
Color:
Yellow
Hoist Lift:
20 ft
Product:

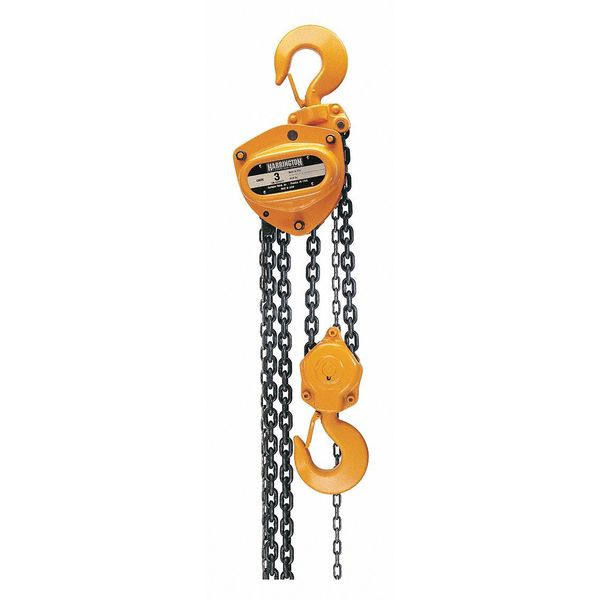

Manual Chain Hoist, 20 ft.Lift=Hoist Mount=Hook Mounted-No Trolley
Housing Width:
9 1/4 in
Manufacturers Warranty Length:
2 yr
Housing Depth:
7 1/2 in
Housing Length:
20 7/64 in
For Minimum Beam Flange Width:
Not Applicable
For Minimum Beam Flange Height:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Height:
Not Applicable
Body Width:
9 5/16 in
Body Depth:
6 11/16 in
Body Material:
Steel
Maximum Lifting Length:
20 ft
Lifting Hook Opening Width:
1 11/16 in
Minimum Retracted Length:
20 3/32 in
Load Capacity:
6,000 lb
Minimum Between Hooks:
20 in
Standards:
ANSI/ASME B30.16, ANSI/ASME HST-2M
Item:
Manual Chain Hoist
Brake:
Weston Style
Trolley Configuration:
Hook Mounted-No Trolley
Features:
Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Chain Grade:
Grade 100
Included Components:
Safety Latch Hooks
Controls:
=Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
2
Headroom:
20 3/32 in
Includes Brake:
Brake Included
Lifting Hook Type:
Hook with Safety Latch
Maximum Lifting Capacity:
6,000 lb
Number of Load Chains:
1
