Product Overview

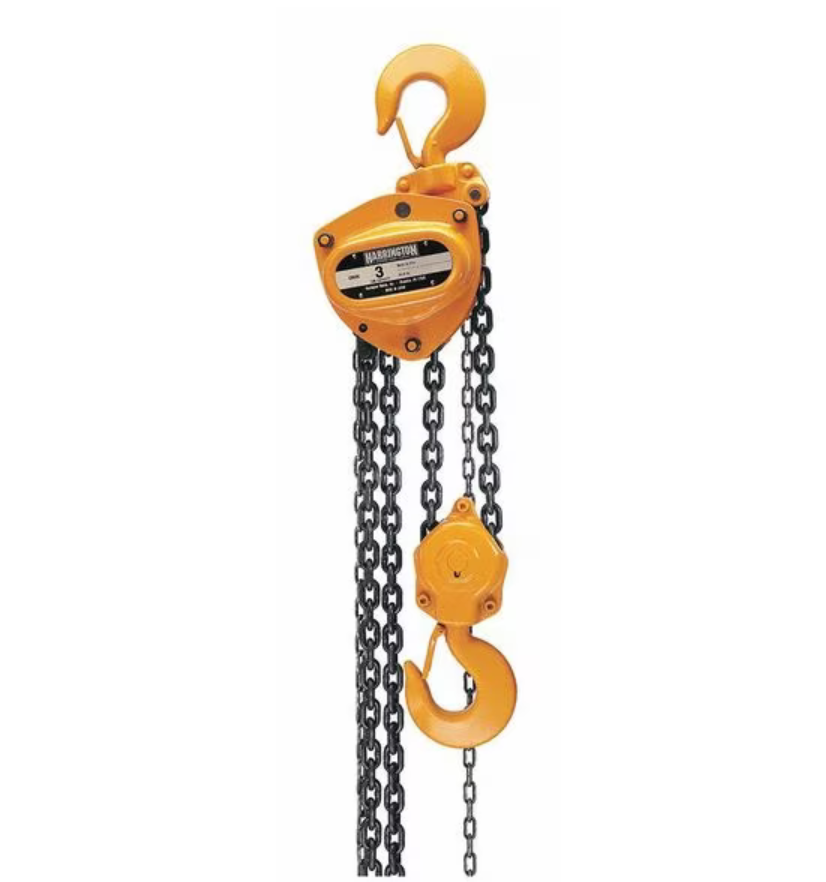

The CB030-10 HARRINGTON CB Hand Chain Hoist is a powerful and durable industrial-grade hoist designed to handle the toughest applications. With Capacity ranging from 3 ton, this hoist is built to withstand heavy loads and deliver reliable performance day after day. One of the standout features of the CB030-10 Hoist is its heavy-duty construction and top-of-the-line internal components. These ensure exceptional strength and durability, allowing the hoist to handle even the most demanding lifting tasks. Whether you need to lift heavy machinery or move bulky materials, the CB030-10 Hoist has the power and reliability to get the job done. In addition to its impressive performance, the CB030-10 Hoist is also designed for easy maintenance and repair. This makes it a cost-effective choice for long-term use, as any necessary repairs or maintenance can be done quickly and efficiently. With the CB030-10 Hoist, you can rely on its performance without the need for frequent replacements or extensive downtime. No matter what industry you're in, the CB030-10 Hand Chain Hoist is a versatile and reliable choice. Whether you're working in construction, manufacturing, or any other field that requires heavy lifting, this hoist has the strength and durability to meet your needs. You can trust in the CB030-10 Hoist to deliver consistent performance and handle even the toughest lifting tasks. Investing in a hoist is a long-term decision, and the CB030-10 HARRINGTON CB Hand Chain Hoist is built to stand the test of time. With its durable construction, top-of-the-line components, and easy maintenance, this hoist offers exceptional value and reliability. Choose the CB030-10 Hoist and experience the power, durability, and reliability you need for your lifting operations.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Part Number
Part Number CB030-10
Color Yellow
Hoist Lift 10 ft
Product Manual Chain Hoist, 10 ft.Lift=Hoist Mount=Hook Mounted-No Trolley
Housing Width 9 1/4 in
Manufacturers Warranty Length 2 yr
Housing Depth 7 1/2 in
Housing Length 20 7/64 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 9 5/16 in
Body Depth 6 11/16 in
Body Material Steel
Maximum Lifting Length 10 ft
Lifting Hook Opening Width 1 11/16 in
Minimum Retracted Length 20 3/32 in
Load Capacity 6,000 lb
Minimum Between Hooks 20 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Chain Grade Grade 100
Included Components Safety Latch Hooks
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 2
Headroom 20 3/32 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 6,000 lb
Number of Load Chains 1
