Product Overview

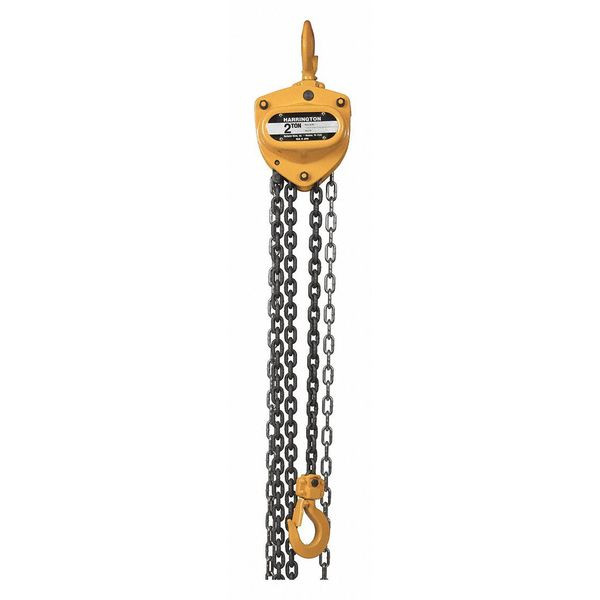

Experience the power and durability of the CB020-20 HARRINGTON CB Hand Chain Hoist. Designed for the most demanding industrial applications, this top-of-the-line hoist has a 20' lift and Capacity ranging from 2 Ton.Built with heavy-duty construction and high-quality internal components, the CB020-20 can withstand rugged use day-in and day-out. Whether you're lifting heavy loads in a warehouse or working on a construction site, this hoist is engineered to handle the toughest conditions.Not only is the CB020-20 built to last, but it is also easily maintained and repairable. This ensures a long-lasting fleet of industrial products, saving you time and money in the long run. You can rely on the durability and performance of our CB hand chain hoist, backed by countless satisfied customers.The CB020-20 HARRINGTON CB Hand Chain Hoist offers unparalleled reliability and performance. It has the capacity to lift small loads or massive ones efficiently and safely. With its 20' lift, it provides ample height to reach high locations, and its range of Capacity allows you to choose the right hoist for your specific needs.Safety is a top priority when it comes to industrial equipment, and the CB020-20 meets all the necessary standards. It features a load brake that securely holds your load in place, preventing any accidents or mishaps. Additionally, the hand chain is ergonomic and easy to operate, minimizing the risk of strain or injury.Investing in the CB020-20 HARRINGTON CB Hand Chain Hoist means investing in a reliable and performance-driven piece of equipment. Its heavy-duty construction, top-of-the-line internal components, and ability to withstand the toughest conditions make it a valuable addition to any industrial setting. Choose quality, choose durability, choose the CB020-20.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number CB020-20
Color Yellow
Hoist Lift 20 ft
Product Manual Chain Hoist, 20 ft.Lift=Hoist Mount=Hook Mounted-No Trolley
Housing Width 8 in
Manufacturers Warranty Length 2 yr
Housing Depth 7 1/4 in
Housing Length 14 13/16 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 8 in
Body Depth 7 3/16 in
Body Material Steel
Maximum Lifting Length 20 ft
Lifting Hook Opening Width 1 13/32 in
Minimum Retracted Length 14 13/16 in
Load Capacity 4,000 lb
Minimum Between Hooks 14 3/4 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Chain Grade Grade 100
Included Components Safety Latch Hooks
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Headroom 14 13/16 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 4,000 lb
Number of Load Chains 1
