Product Overview

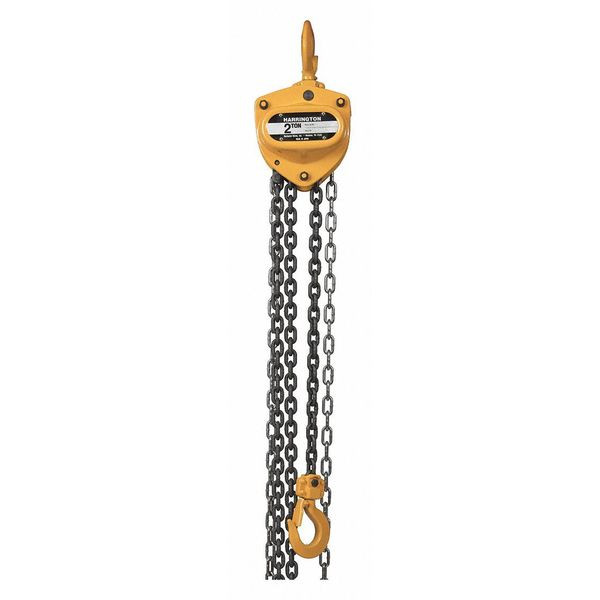

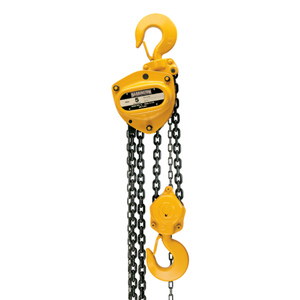

Experience the power and durability of the CB020-10 HARRINGTON CB Hand Chain Hoist. This top-of-the-line hoist is designed to handle the toughest industrial applications with ease. With lifting Capacity ranging from 2 Ton, it is perfect for heavy-duty use.Built with heavy-duty construction and top-quality components, this hoist ensures a long-lasting and reliable performance. It is designed to withstand demanding working conditions, making it the ideal choice for industries such as construction, manufacturing, and transportation.Not only is this hoist built to last, but it is also easily maintainable and repairable, making it a cost-effective choice for your industrial fleet. Designed with user-friendly features, it is easy to operate and perform routine maintenance. Its ergonomic design allows for comfortable and efficient operation, reducing the risk of operator fatigue.When it comes to safety, the CB020-10 HARRINGTON CB Hand Chain Hoist does not disappoint. It is equipped with multiple safety features, including a load brake mechanism that ensures controlled lifting and lowering. Its durable chain is designed to withstand heavy loads and is equipped with load hooks that provide secure attachment.Upgrade to the CB020-10 HARRINGTON CB Hand Chain Hoist to experience the power and reliability you need for your demanding applications. Whether you need to lift heavy machinery, transport materials, or position equipment, this hoist will get the job done efficiently and safely.With its exceptional strength, durability, and ease of maintenance, the CB020-10 HARRINGTON CB Hand Chain Hoist is a valuable addition to any industrial operation. Invest in the best and experience the difference in performance and longevity. Upgrade to the CB020-10 HARRINGTON CB Hand Chain Hoist today and enjoy the power and reliability you need for your industrial applications.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number CB020-10
Color Yellow
Hoist Lift 10 ft
Product Manual Chain Hoist, 10 ft.Lift=Hoist Mount=Hook Mounted-No Trolley
Housing Width 8 in
Manufacturers Warranty Length 2 yr
Housing Depth 7 1/4 in
Housing Length 14 13/16 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 8 in
Body Depth 7 3/16 in
Body Material Steel
Maximum Lifting Length 10 ft
Lifting Hook Opening Width 1 13/32 in
Minimum Retracted Length 14 13/16 in
Load Capacity 4,000 lb
Minimum Between Hooks 14 3/4 in

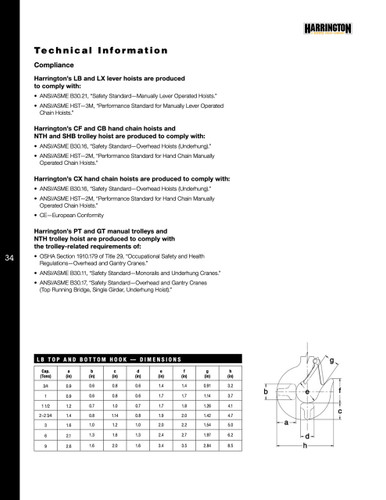

Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Chain Grade Grade 100
Included Components Safety Latch Hooks
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Headroom 14 13/16 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 4,000 lb
Number of Load Chains 1
