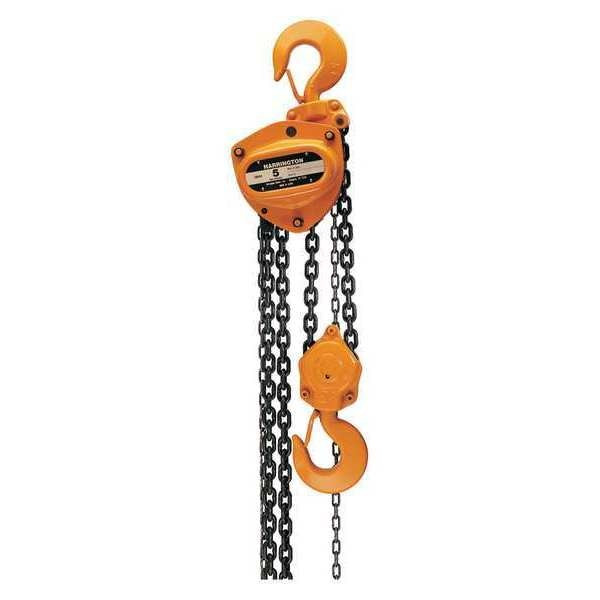

CB Hand Chain Hoist 20' Lift-Capacity 1 1/2 Ton CB015 Hand Chain Hoist HARRINGTON

Product Overview

The CB015-20 HARRINGTON CB Hand Chain Hoist is the ultimate solution for heavy-duty lifting needs in any industrial setting. With its heavy-duty construction and top-of-the-line internal components, this hoist is designed to withstand the most demanding applications.Capable of lifting loads ranging from 1 1/2 Ton, the CB015-20 is versatile and reliable. With a 20' lift capacity, you can tackle tasks of any height with ease and precision.Maintenance and repairs are a breeze with the CB015-20. It is incredibly easy to maintain, ensuring that your hoist remains in peak condition for years to come. And in the rare event that repairs are needed, they will be quick and hassle-free.Investing in the CB015-20 Hand Chain Hoist means investing in a long-lasting fleet of industrial products. Its reliability and efficiency are unmatched, making it the go-to choice for professionals in various industries. Whether you're upgrading your current hoist or in need of a reliable solution for a new project, the CB015-20 won't disappoint.In conclusion, the CB015-20 HARRINGTON CB Hand Chain Hoist is the epitome of superior quality and performance. Its heavy-duty construction, top-of-the-line components, and easy maintenance make it the perfect choice for any industrial application. Choose the CB015-20 today and experience the unrivaled reliability and efficiency firsthand.

Product Specifications

.

Part Number:

CB015-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Manual Chain Hoist, 20 ft.Lift=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

7 1/4 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

6 3/4 in

Housing Length:

13 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

7 3/16 in

Body Depth:

6 11/16 in

Body Material:

Steel

Maximum Lifting Length:

20 ft

Lifting Hook Opening Width:

1 5/16 in

Minimum Retracted Length:

13 13/16 in

Load Capacity:

3,000 lb

Minimum Between Hooks:

14 in

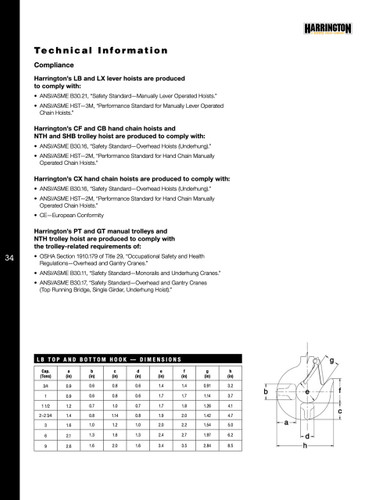

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

13 13/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

3,000 lb

Number of Load Chains:

1
