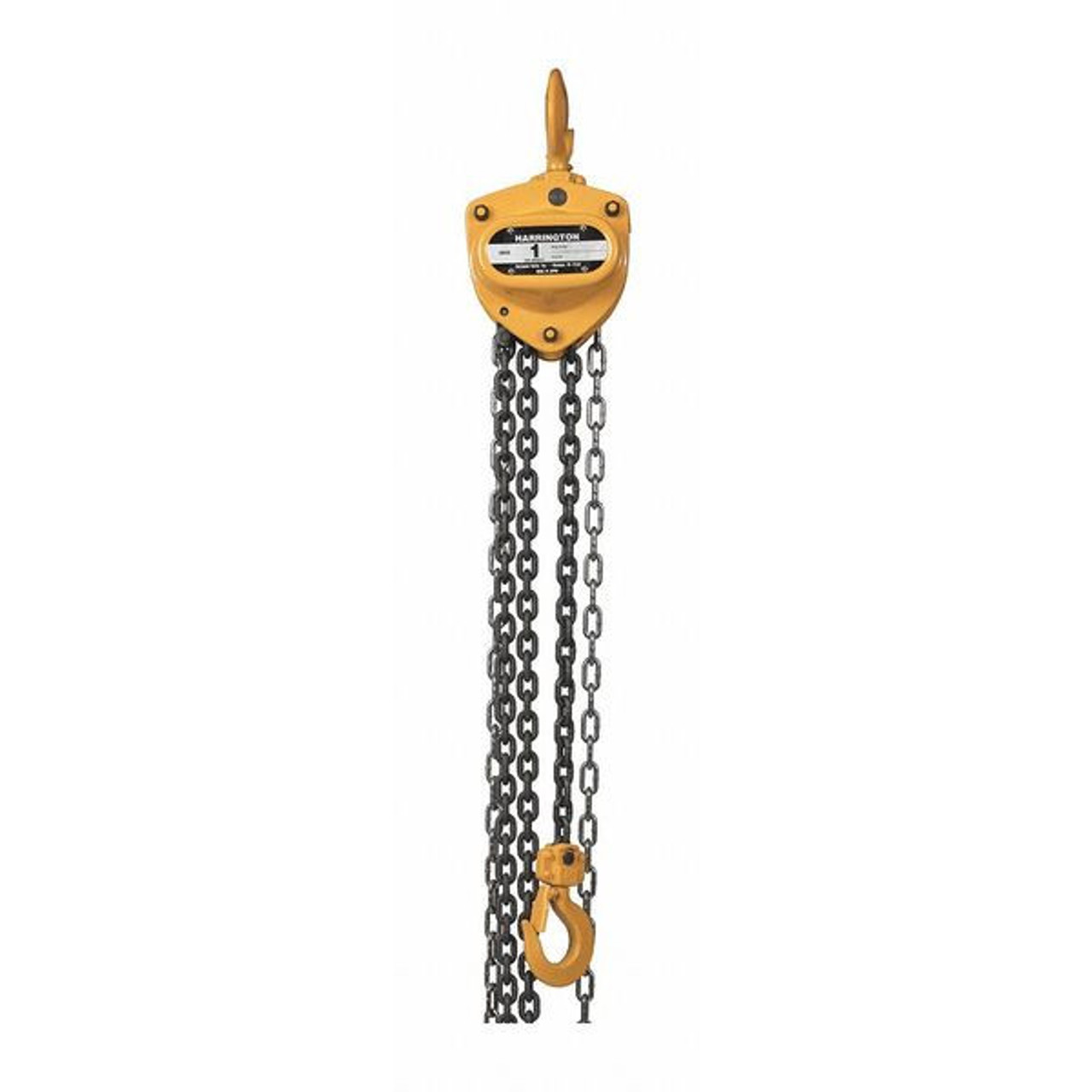

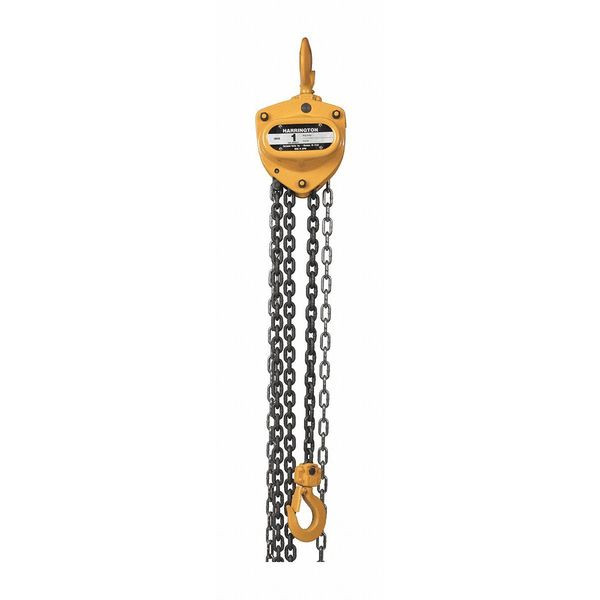

HARRINGTON CB Hand Chain Hoist 10' Lift-Capacity 1 Ton CB010 Hand Chain Hoist

Product Overview

The CB010-10 HARRINGTON CB Hand Chain Hoist is a powerful and durable lifting solution that is designed to withstand the toughest industrial applications. With a 10' lift capacity, this hoist provides the strength and efficiency needed for a wide range of lifting tasks.Built with heavy-duty construction and high-quality internal components, the CB010-10 HARRINGTON CB Hand Chain Hoist delivers reliable performance day in and day out. Whether you need to lift a small load or a heavy one, this hoist can handle it with ease. With Capacity ranging from 1 tons, it offers the versatility to meet all your lifting requirements.Not only is the CB010-10 HARRINGTON CB Hand Chain Hoist powerful, but it is also designed for easy maintenance and long-lasting durability. Its sturdy construction ensures that it can withstand the rigors of heavy use and demanding environments. Additionally, any necessary repairs can be done hassle-free, allowing you to minimize downtime and keep your operations running smoothly.When it comes to lifting equipment, trust the CB010-10 HARRINGTON CB Hand Chain Hoist to exceed your expectations. Whether you are working in a manufacturing facility, a construction site, or any other industrial setting, this hoist will provide the strength, durability, and reliability you need to get the job done. With its high performance and robust design, this hoist is a valuable addition to any lifting arsenal.Experience the power and dependability of the CB010-10 HARRINGTON CB Hand Chain Hoist. Invest in a lifting solution that can handle the toughest tasks and ensure the smooth operation of your business. Say goodbye to manual hauling and let the CB010-10 HARRINGTON CB Hand Chain Hoist do the heavy lifting for you.

Product Specifications

.

Part Number:

CB010-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Manual Chain Hoist, 10 ft.Lift=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

6 1/4 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

6 1/2 in

Housing Length:

11 39/64 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

6 5/16 in

Body Depth:

6 13/32 in

Body Material:

Steel

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

11 19/32 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

11 3/4 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

11 19/32 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Number of Load Chains:

1
