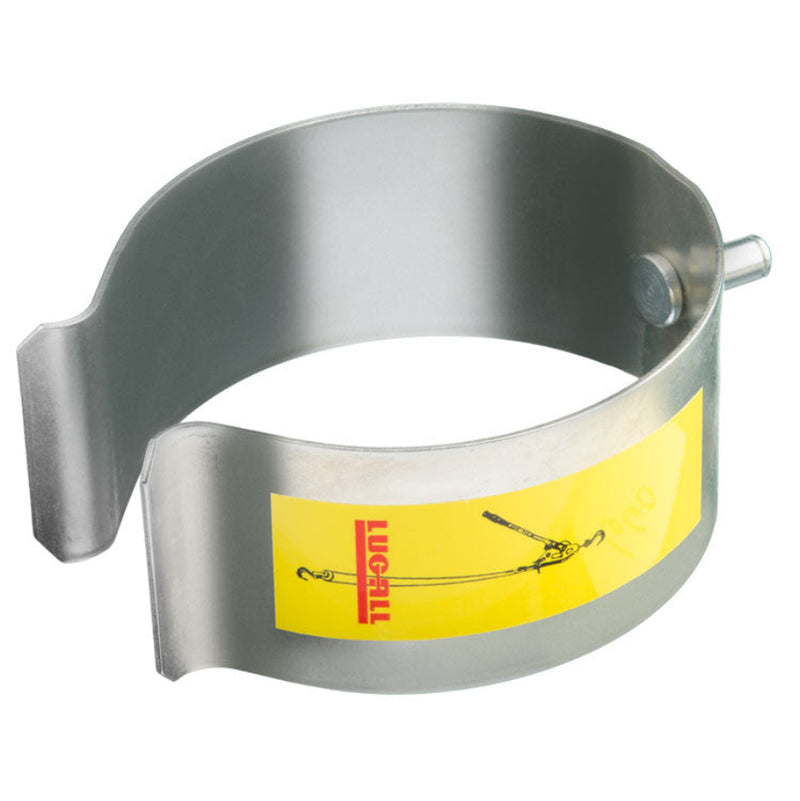

Cable Shield Assembly “ SKU: 660 The Protective Shroud That Guards Your Cable and Drum on Lug-All's Most Powerful Hoist On a cable ratchet winch hoist operating at 3-ton capacity, cable protection isn't a convenience feature ” it's a fundamental part of maintaining safe, reliable operation every time you deploy the hoist. The Cable Shield Assembly (SKU: 660) is the genuine OEM replacement cable shield engineered specifically for the Lug-All model 6000-15, providing critical protection for the cable at its most vulnerable transition point on the drum. This cable shield assembly is compatible with Lug-All model 6000-15 only. J Harlen Co. The Lug-All model 6000-15 is a heavy-duty, industrial-grade 3-ton cable come along hoist featuring double or single line lift capabilities ” delivering 3,000 lbs with 15 feet of cable in single line, or 6,000 lbs with 7 feet 6 inches of cable in double line. ShoreLandr Per the official 6000-15SH parts list, the cable shield assembly (Part #660) is secured by a cable shield pin (Part #661) and a cable shield retaining ring (Part #696), forming a three-component sub-assembly that covers the cable as it enters the drum housing. The shield prevents the outgoing cable from fouling against the main frame casting, the drum ratchet teeth, or adjacent structural elements during the winding and unwinding cycle ” a critical concern at 5/16-inch cable diameter, where any abrasion or kink at the entry point weakens the wire rope cross-section and can lead to premature strand failure. J Harlen Co. The 6000-15 uses a 7×19 highly flexible self-storing aircraft cable that eliminates the need for heavy dragging chains ” and the cable shield assembly is what keeps that self-storing cable performing correctly as it layers onto and off of the drum. The service manual specifically references cable shield removal as a step in servicing the 6000-15 ” confirming this is a maintenance-accessible, field-replaceable assembly designed to be serviced as part of routine care. Rigging WarehouseLug-All A cracked, bent, or missing cable shield allows the cable to contact the drum housing or ratchet teeth directly, causing accelerated wear, kinking, and possible cable damage that is not always visible until the cable fails under load. At 6,000 lbs, cable integrity is non-negotiable. Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number660Part NameCable Shield AssemblyCompatible ModelLug-All #6000-15 onlyHoist Type3-Ton Cable Ratchet Winch HoistHoist Capacity (Single Line)3,000 lbsHoist Capacity (Double Line)6,000 lbsCable Diameter5/16" (7×19 aircraft cable)Companion PartsCable Shield Pin #661, Cable Shield Retaining Ring #696Component CategoryCable Protection / Frame HardwareCountry of OriginUSA

Installation Note When replacing the cable shield assembly, always inspect the cable shield pin (SKU: 661) and retaining ring (SKU: 696) and replace as needed. After reassembly, confirm the cable moves freely through the shield without binding or contact before returning the hoist to service. Lug-All Order SKU 660 today and protect your 5/16-inch aircraft cable on every deployment of your Lug-All 6000-15.
