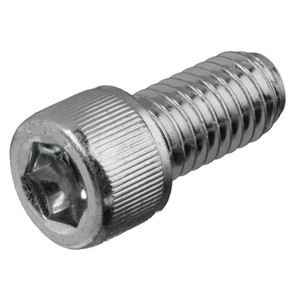

Socket Cap Screw “ SKU: 674 The High-Torque Fastener That Locks the Handle Socket to the U-Frame on Your 3-Ton Hoist In precision mechanical assemblies under heavy loads, fastener choice matters. The Socket Cap Screw (SKU: 674) is the genuine OEM replacement fastener that secures the handle socket assembly to the U-frame on the Lug-All model 6000-15 ” Lug-All's most powerful cable ratchet winch hoist. Its hex-socket drive design enables the precise, high-torque installation that the 6000-15's large-frame handle interface demands. This socket cap screw is compatible with Lug-All model 6000-15 only. Google Patents The Lug-All model 6000-15 is a heavy-duty, industrial-grade 3-ton cable come along hoist ” delivering 3,000 lbs in single line with 15 feet of cable, or 6,000 lbs in double line with 7 feet 6 inches of cable. ShoreLandr Socket cap screws ” also known as Allen head screws ” are precision fasteners characterized by their cylindrical head with a recessed hexagonal socket, which allows for high torque application in confined spaces where traditional external drive fasteners cannot reach. On the 6000-15, where the handle socket is positioned within the confined geometry of the large-frame U-frame assembly, this internal hex drive is essential for achieving proper installation torque without tool clearance issues. Southeast Rigging The socket cap screw plays a direct role in operational safety. The handle socket on the 6000-15 can be repositioned to a second socket position on the U-frame for additional leverage when lowering or backing off a load, and to increase maneuverability in tight spaces ” each time the handle socket is repositioned, the socket cap screw must be properly torqued to secure it in the new position before the hoist is loaded. A loose or undertorqued cap screw allows the handle socket to shift under load, creating unpredictable handle behavior and potential loss of control at 3-ton capacity. GME Supply The 6000-15 includes a shear pin between the handle socket and U-frame that is designed to break audibly upon overload ” and the socket cap screw is what holds the handle socket assembly in position so the shear pin can function as intended. If the cap screw is stripped, corroded, or undertorqued, the handle socket can move relative to the U-frame, compromising the shear pin's alignment and engagement. Lug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number674Part NameSocket Cap ScrewCompatible ModelLug-All #6000-15 onlyDrive TypeInternal Hex (Allen / Socket Head)Hoist Type3-Ton Cable Ratchet Winch HoistHoist Capacity (Single Line)3,000 lbsHoist Capacity (Double Line)6,000 lbsFunctionSecures Handle Socket to U-FrameComponent CategoryHandle Assembly / U-Frame FastenerCountry of OriginUSA

Installation Note Always use a properly sized hex key or Allen wrench that fits the socket head fully ” a worn or undersized key can strip the socket drive, making the screw difficult or impossible to remove during future servicing. Never reuse a stripped or corroded socket cap screw. Order SKU 674 today and ensure your Lug-All 6000-15 handle socket is securely fastened for every operation.
