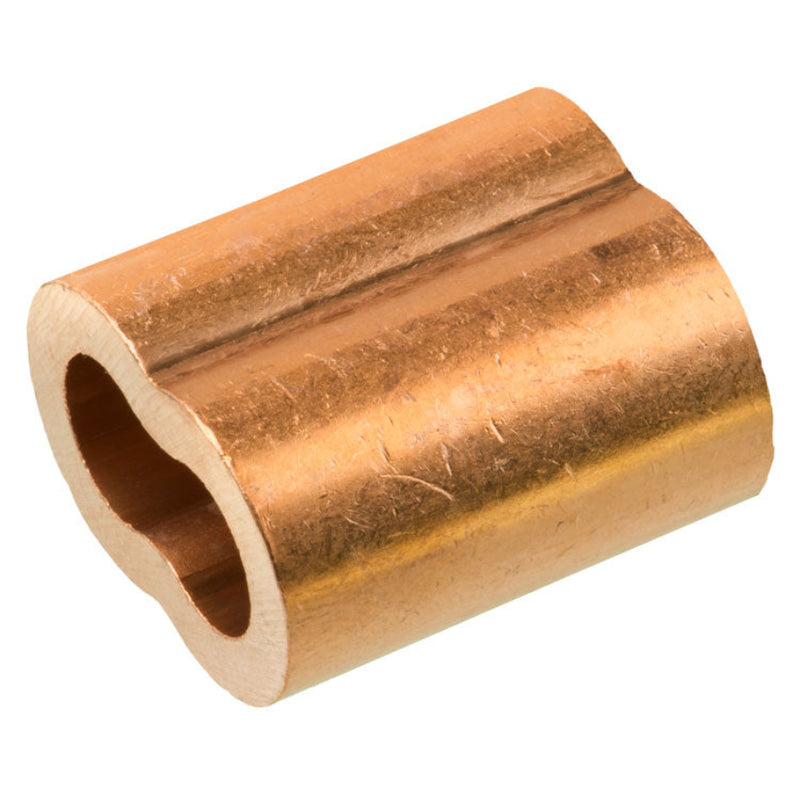

Sleeve Type Cable Clamp “ SKU: 666 The Crimped Ferrule That Permanently Secures Your Cable Eye at 3-Ton Capacity At the heart of every wire rope eye termination is a small but critical component that makes the entire connection permanent and load-bearing: the sleeve-type cable clamp. The Sleeve Type Cable Clamp (SKU: 666) is the genuine OEM replacement sleeve ferrule engineered for the Lug-All model 6000-15, providing the swaged termination that secures the cable loop at full 3-ton service. This sleeve type cable clamp is compatible with Lug-All model 6000-15 only, with a net weight of 0.124 lbs. Lug-All The Lug-All model 6000-15 is a heavy-duty, industrial-grade 3-ton cable come along hoist ” delivering 3,000 lbs in single line with 15 feet of cable, or 6,000 lbs in double line with 7 feet 6 inches of cable. ShoreLandr Sleeve-type cable clamps are metal tube fittings used to terminate the ends of wire rope and cable. They are crimped onto the rope using a swaging tool to form a permanent loop or eye, creating a secure, permanent connection that prevents slippage and fraying. On the Lug-All 6000-15, the sleeve clamp is used in conjunction with the thimble (Part #665) to form the protected eye termination at the cable's free end ” the sleeve is compressed around both the standing part and the tail of the wire rope after the loop is formed around the thimble, locking the assembly permanently in place. J Harlen Co. The swaging process creates a cold-metal compression joint ” the swaging tool applies force to compress the sleeve, causing the metal to flow into the gaps of the wire rope construction, creating a fused termination that can hold the cable's rated breaking strength when properly applied. This makes the sleeve-type clamp fundamentally different from a mechanical U-bolt cable clip: there are no nuts to re-torque, no saddle orientation to remember, and no chance of loosening under vibration and repeated load cycles. Once properly swaged, the connection is permanent. Lug-All Always ensure the sleeve type and size matches the nominal diameter of the wire rope being terminated. Using an incorrectly sized sleeve results in improper crimp geometry, insufficient clamping force, and a termination that may slip under load. The SKU 666 is dimensioned specifically for the 5/16-inch 7×19 aircraft cable used on the 6000-15. Lug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number666Part NameSleeve Type Cable ClampNet Weight0.124 lbsCompatible ModelLug-All #6000-15 onlyHoist Type3-Ton Cable Ratchet Winch HoistHoist Capacity (Single Line)3,000 lbsHoist Capacity (Double Line)6,000 lbsCable Diameter5/16" (7×19 aircraft cable)Used WithThimble #665Component CategoryCable Eye Termination / Swaged FerruleCountry of OriginUSA

Installation Note Always use the correct swaging tool and die size matched to the sleeve diameter. Never use a hammer, bench vise, or improvised tool to compress the sleeve ” improper compression creates a weak, asymmetric joint that can fail under load. Test the completed assembly before returning the hoist to service. Order SKU 666 today and restore a secure, permanent cable eye termination to your Lug-All 6000-15.
