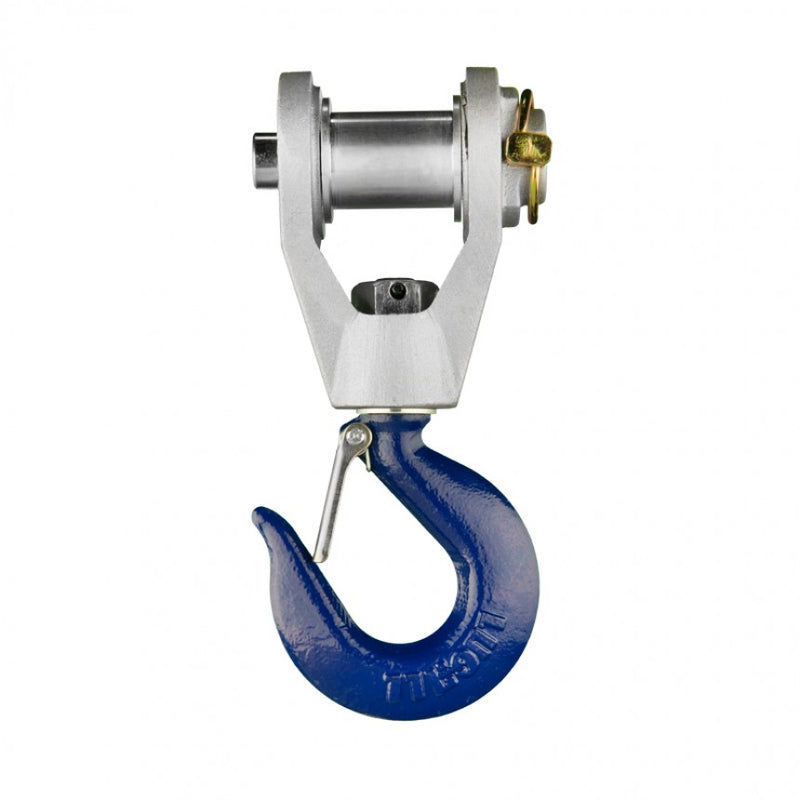

SKU: 705 | Pulley Block Assembly ” Compatible with Lug-All Models 35-A and 40-A (Web Strap Hoists) Double Your Lifting Power with a Fully Functioning Pulley Block ” OEM Replacement for the 35-A and 40-A The pulley block assembly is what transforms your web strap hoist from a capable single-line puller into a full double-line lifting and tensioning system ” effectively doubling the load capacity of your hoist in a single configuration change. The SKU 705 Pulley Block Assembly is a genuine OEM replacement component designed exclusively for the Lug-All model 35-A, a lightweight industrial-grade 1-1/2-ton web strap come along ratchet winch hoist, and the model 40-A, a lightweight industrial-grade 2-ton web strap come along ratchet winch hoist. If your pulley block is cracked, seized, worn, or missing, you are operating at reduced capability and potentially compromised safety ” and this assembly is the correct, complete OEM solution. Lug-AllLug-All In double-line configuration, the web strap routes from the drum, around the pulley block assembly, and back to the anchor point, creating a two-part mechanical advantage that doubles the effective load capacity of the hoist. For the model 35-A, this means a double-line capacity of 3,000 lbs over 7 feet 6 inches of web strap compared to 1,500 lbs in single-line mode. For the model 40-A, double-line configuration delivers 4,000 lbs of capacity over 5 feet of web strap versus 2,000 lbs single-line. The pulley block assembly must rotate freely and bear the full double-line load with every lift ” making the condition of this component directly tied to the maximum safe capacity of your hoist. Lug-AllLug-All The assembly includes the pulley wheel, its supporting shaft, and the block housing with hook attachment ” all pre-matched and ready to install as a complete unit. Replacing the entire assembly rather than individual sub-components ensures every part is dimensionally compatible and rated to work together under full load. Open frame construction allows for cleaning and visual inspection, and self-lubricating bushings throughout the housing and on the pulley assure smooth operation ” design features that the OEM pulley block assembly is built to complement perfectly. Lug-All Lug-All Web Strap Hoists meet ANSI B30.21 specifications, are tested to 125 percent of their rated load, and feature forged hooks with latches resulting in a stronger hoist. The SKU 705 Pulley Block Assembly is manufactured to match these same exacting standards. These hoists are used internationally by utilities and utility service companies, typically in bucket trucks or for underground utility work, as well as across construction, industrial maintenance, and rigging operations where reliable double-line performance is essential. Lug-AllLug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU705Part NamePulley Block AssemblyCompatible ModelsLug-All 35-A and 40-AHoist TypeWeb Strap Come-Along / Ratchet Winch HoistModel 35-A ” Single Line1,500 lbs / 15 FTModel 35-A ” Double Line3,000 lbs / 7 FT 6 INModel 40-A ” Single Line2,000 lbs / 10 FTModel 40-A ” Double Line4,000 lbs / 5 FTNet Weight (35-A Parent Unit)Under 13 LBSNet Weight (40-A Parent Unit)Just over 13 LBSAssembly IncludesPulley wheel, shaft, block housing, hook attachmentPart TypeComplete OEM Replacement AssemblyBushing TypeSelf-LubricatingComplianceANSI B30.21Country of ManufactureUSA

Why Replace the Complete Assembly? When a pulley block fails, it rarely fails in just one place ” wear, corrosion, and stress are distributed across the entire assembly including the wheel, shaft, housing, and hook. Replacing the complete OEM assembly in one step ensures all sub-components are matched, rated, and ready to perform together at full capacity. Regular maintenance and inspection of hoist parts are essential for ensuring safe and efficient operation, and addressing wear or malfunctions promptly contributes to the longevity and reliability of the hoist system. A seized pulley wheel, worn shaft bore, or cracked block housing all compromise the load path through the assembly ” replace the complete unit and restore your double-line capability with total confidence. BH-USA This pulley block assembly is compatible with Lug-All models 35-A and 40-A only. Please verify your hoist model number before ordering.
