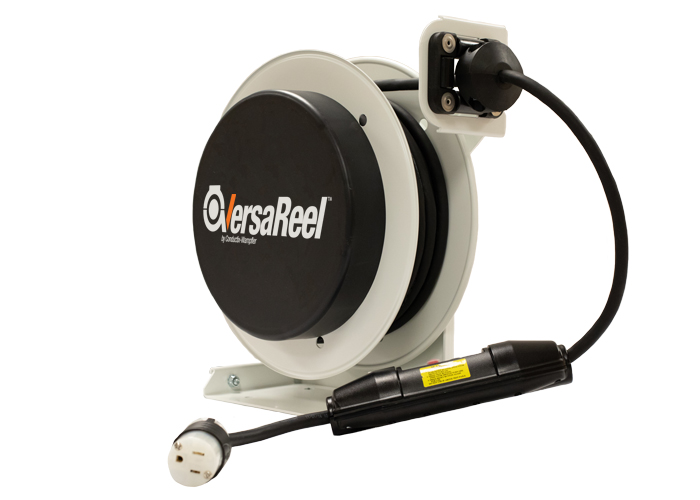

The XA_VR25_123G_S20 VersaReel is a commercial-grade, spring-driven cable reel engineered by Conductix_Wampfler for versatility in warehouses, maintenance shops, labs, schools, retail, and seasonal display applications. It features 25_ft of durable 12_AWG/3 SJOOW cable rated for 20_A and terminated with a single UL-listed receptacle equipped with an inline GFCI. The reel includes a powerful spring motor capable of retracting cable fully—even under load—and a detachable Quick_Mount base plate that simplifies safe ceiling or wall installation. This model is cULus listed, features adjustable cable guide, ratchet lock, and ball stop for controlled deployment, and weighs approximately 28.66_lb.
Key Features
Cable & Capacity:
_– 25_ft of heavy-duty 12_AWG/3 SJOOW cable
_– UL-listed 20_A single receptacle with inline GFCI
Spring-Driven Retraction:
_– High-torque spring fully retracts cable under load, designed to outperform standard reels
Quick_Mount Base:
_– Separate mounting plate allows secure ceiling or wall installation without handling the full reel weight
Controlled Deployment:
_– Adjustable four-roller cable guide, ratchet lock, and ball stop ensure smooth performance and safe operation
Certifications & Durability:
_– cULus listed for compliance with electrical safety standards
_– Rugged steel frame and molded nylon components built for industrial use
Weight:
_– Approximately 28.66_lb (13_kg
