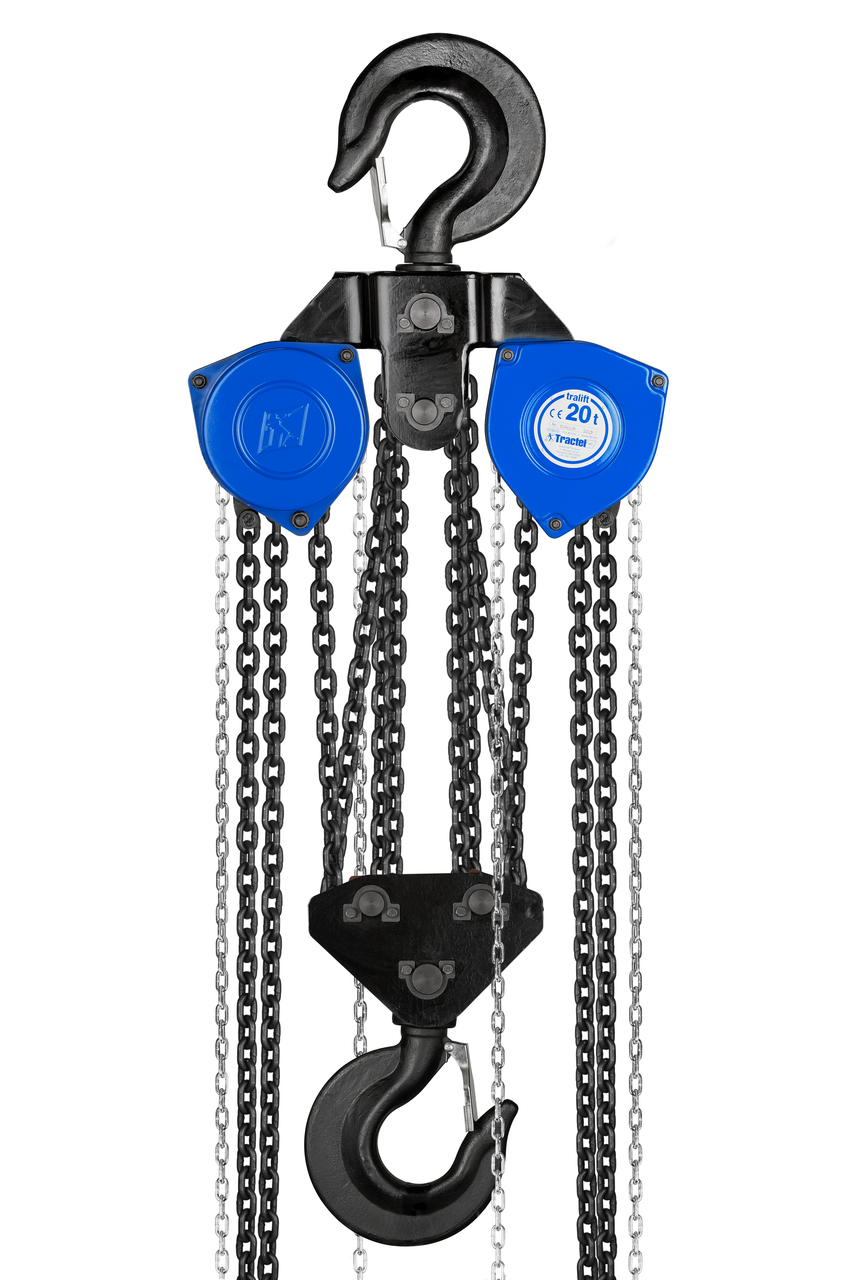

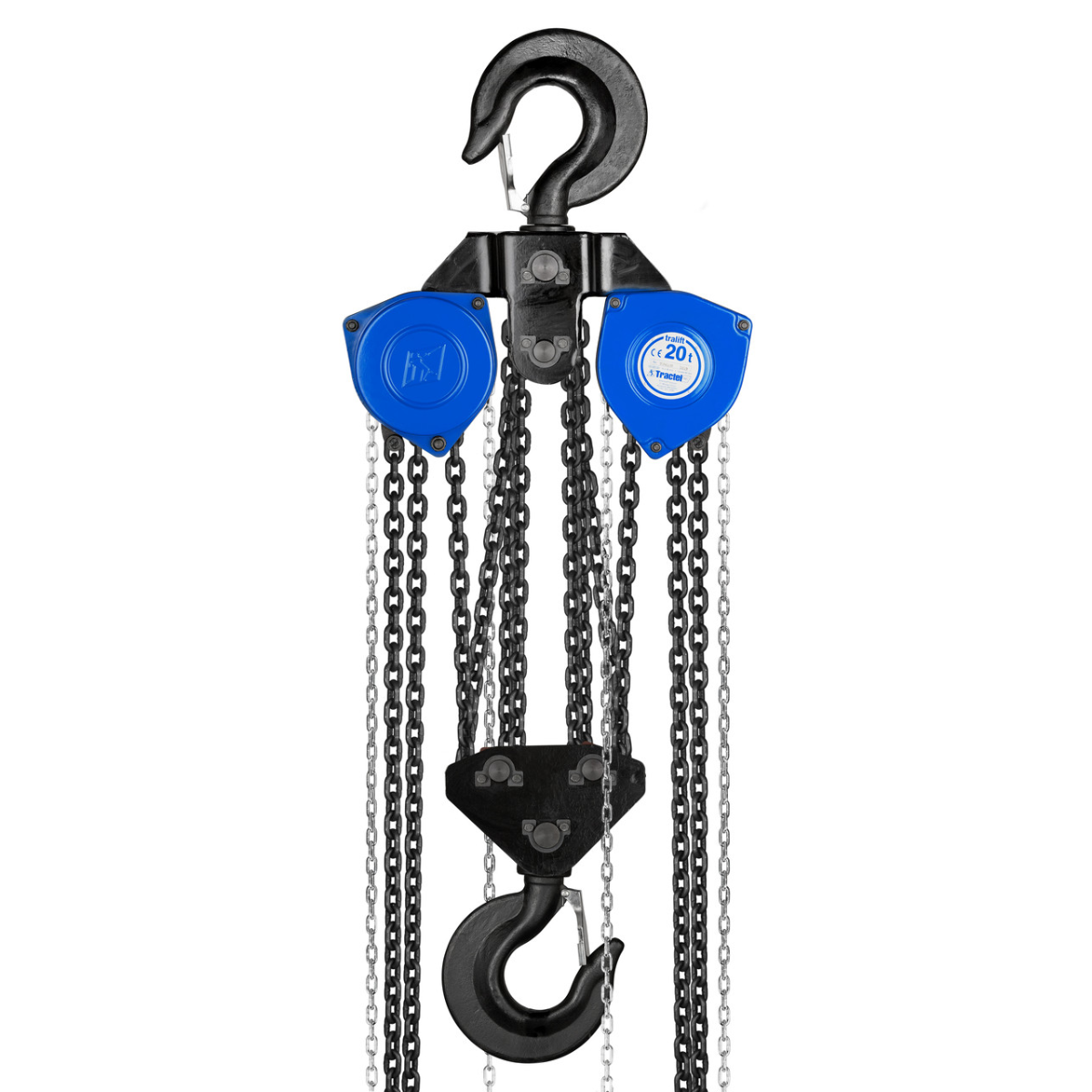

Tractel Tralift Manual Chain Hoist 20 Ton (40,000 lbs.) with 15‑ft Lift, Chain Size 16 × 48 mm
Tractel Tralift Manual Chain Hoist 20 Ton (40,000 lbs.) with 15‑ft Lift, Chain Size 16 × 48 mm – Model 19780
Product Description
The Tralift 20 Ton Manual Chain Hoist with a 15‑ft lift is built for extreme-duty lifting where both capacity and reach are critical. Rated for 40,000 lbs. (20 tons), this hoist is engineered for heavy industrial, construction, and rigging projects that demand reliable, controlled, and safe lifting of massive loads.
Equipped with a 16 × 48 mm high-strength alloy steel chain, the hoist provides smooth, precise operation. Its automatic mechanical load brake ensures the load remains securely held at any height, allowing operators to lift, lower, or temporarily suspend heavy materials with confidence.
The rugged steel housing and reinforced internal gearing provide durability even in the harshest work environments, while the manual hand chain drive allows precise control and minimal effort during operation. This combination of strength and usability makes it suitable for industrial maintenance, large equipment handling, structural assembly, and heavy fabrication.
With a 15‑ft lift, this Tralift model provides extra reach for taller structures and high-clearance work areas, offering professionals the extended versatility they need without compromising safety or performance.

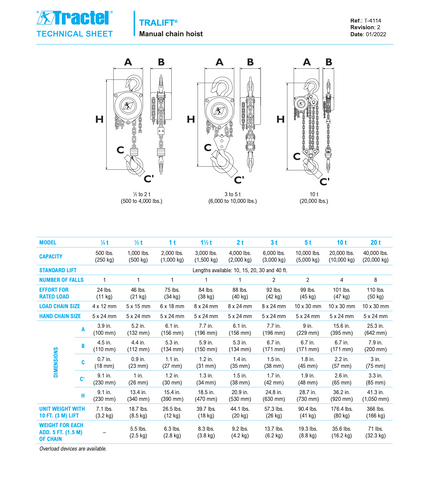

Key Specifications
- Model: Tralift Manual Chain Hoist – 19780
- Capacity: 20 tons (40,000 lbs. / 20,000 kg)
- Lift Height: 15 ft (4.6 m)
- Load Chain Size: 16 × 48 mm alloy steel chain
- Operation: Manual hand chain drive
- Brake System: Automatic mechanical load brake for secure load holding
- Construction: Heavy-duty steel housing with reinforced internal gearing
- Design Benefits: Extended lift height, smooth operation, durable under extreme loads
- Applications: Industrial lifting, construction, rigging, shipbuilding, heavy equipment installation
- Safety: Conforms to recognized lifting and safety standards
