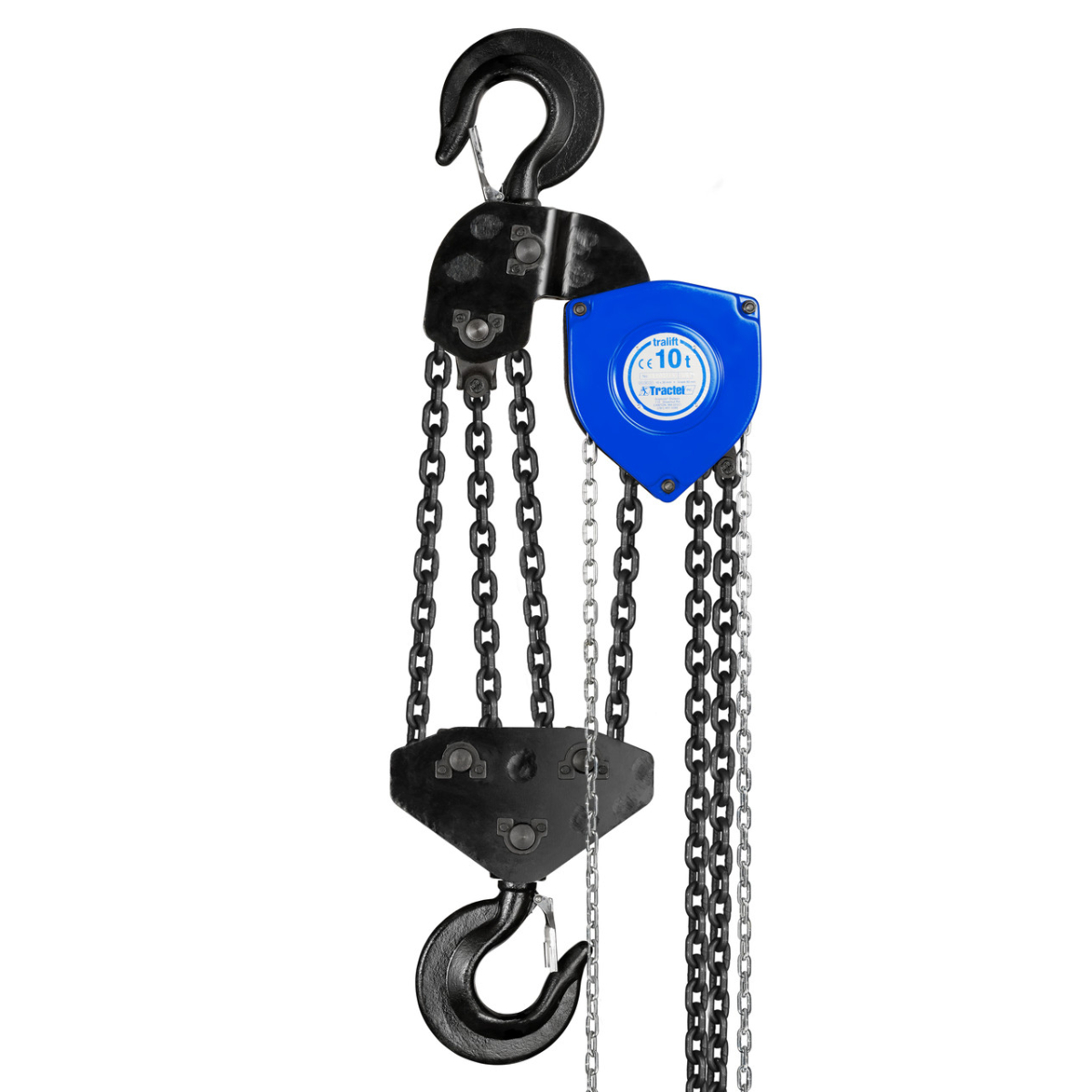

Tractel Tralift Manual Chain Hoist 10 Ton (20,000 lbs.) with 20‑ft Lift, Chain Size 12 × 36 mm – Model 19766

Product Description

The Tralift 10 Ton Manual Chain Hoist with a 20‑ft lift combines heavy-duty lifting capacity with extended reach for demanding industrial, construction, and rigging applications. Rated for 20,000 lbs. (10 tons), this hoist allows operators to safely lift, position, and hold large, heavy loads with confidence and precision.

Equipped with a 12 × 36 mm high-strength alloy steel chain, the hoist delivers smooth, controlled operation. Its automatic mechanical load brake ensures the load remains securely held at any height, providing reliable safety during lifting, lowering, or temporary suspension.

The hoist is housed in rugged steel construction with reinforced internal gearing to withstand the rigors of heavy daily use. Despite its large capacity, the manual hand chain drive requires minimal effort, that makes it perfect for many different uses including industrial plant maintenance, heavy equipment installation, and large-scale structural rigging.

With a 20‑ft lift, this hoist gives users the vertical reach needed for high-clearance environments, offering both flexibility and reliability for those professionals who demand performance in challenging conditions.

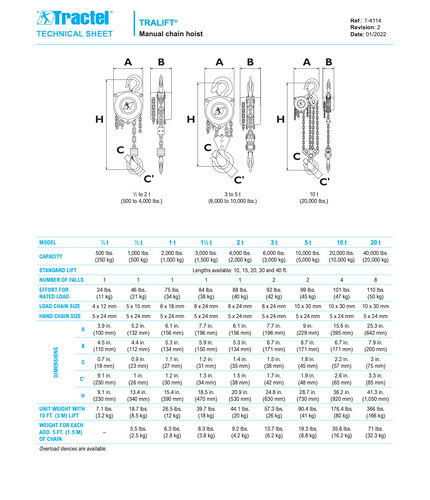

Key Specifications

• Model: Tralift Manual Chain Hoist – 19766
• Capacity: 10 tons (20,000 lbs. / 10,000 kg)
• Lift Height: 20 ft (6.1 m)
• Load Chain Size: 12 × 36 mm alloy steel chain
• Operation: Manual hand chain drive
• Brake System: Automatic mechanical load brake for secure load holding
• Construction: Heavy-duty steel housing with precision internal gearing
• Design Benefits: Extended reach, smooth operation, durable and reliable
• Applications: Construction, rigging, industrial maintenance, heavy equipment handling
• Safety: Complies with recognized lifting and safety standards
