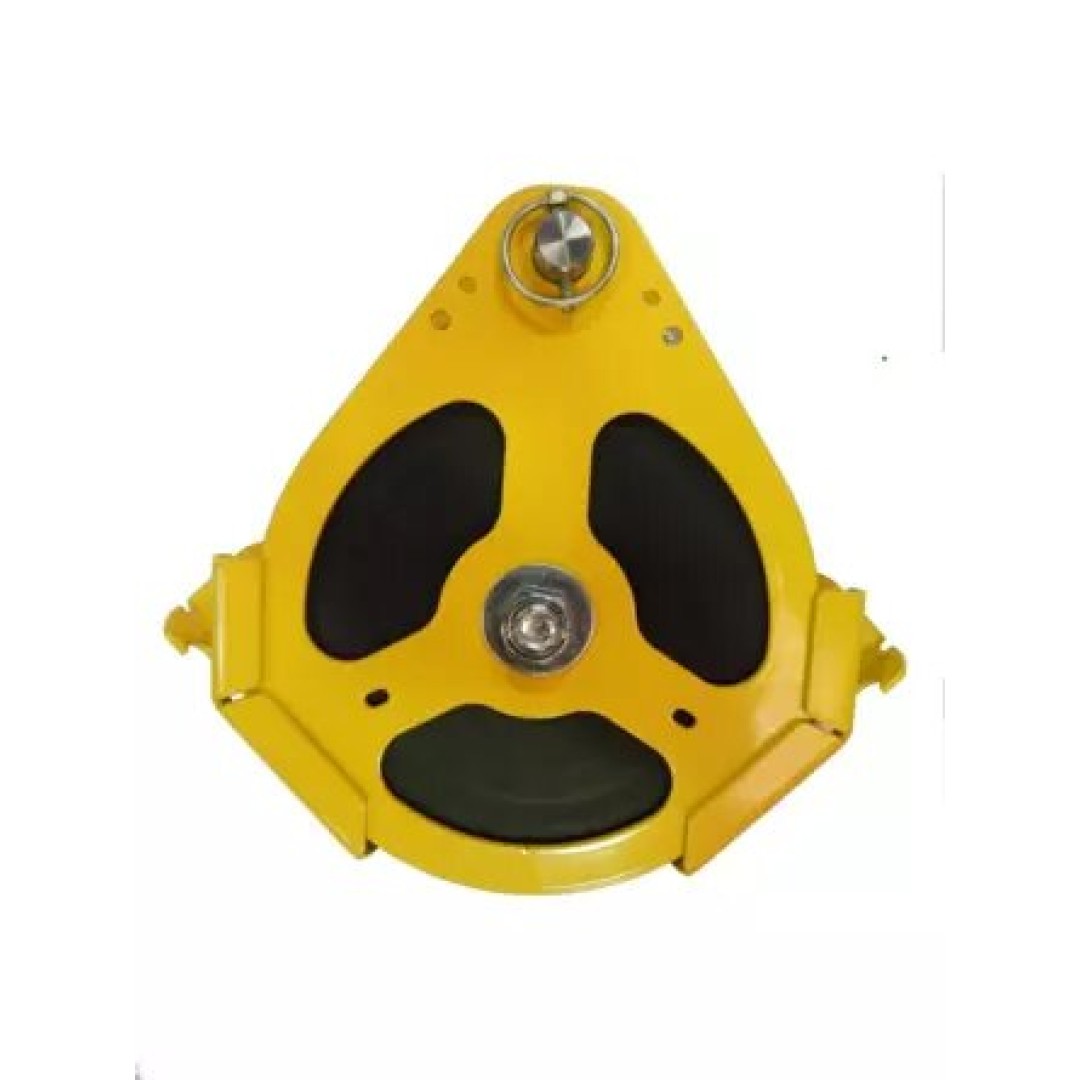

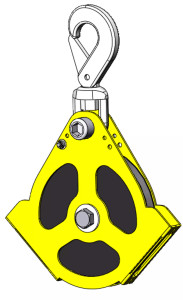

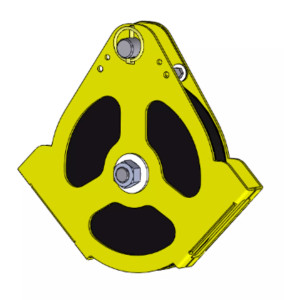

Tractel Topal EPC4.8-14/16 Block for Material Handling – 10,560 lbs Capacity

The Topal EPC4.8-14/16 Block is designed for heavy-duty material handling applications, providing a safe and reliable solution for lifting and guiding large loads. Block has a working load limit of 10,560 lbs and a jaw opening of 10-7/8 to 12-5/8 inches. This block accommodates wire ropes from 14 to 16 mm in diameter, which makes it suitable for demanding industrial and construction lifting tasks.

Constructed from high-strength steel with a polyamide sheave, the EPC4.8-14/16 Block combines durability with ease of handling. Its design allows for tool-free rope insertion and safe operation under load, giving both safety and productivity. This block is intended exclusively for material handling and is not designed for man-riding applications.

Features and Specifications:

• Working Load Limit (WLL): 10,560 lbs (4,800 kg)
• Jaw Opening: 10-7/8 to 12-5/8 inches (277.5–323.5 mm)
• Sheave Diameter: 277.5/323.5 mm
• Wire Rope Compatibility: 14–16 mm diameter
• Material: High-strength steel with polyamide sheave
• Application: Material handling only; not for man-riding
• Weight: 12.5 kg
• Product Code: 252793

The Topal EPC4.8-14/16 Block gives users reliable performance for heavy material handling. It combines strength, smooth operation, and easy rope management. Its sturdy construction provides safety and efficiency in harsh industrial and construction environments.
