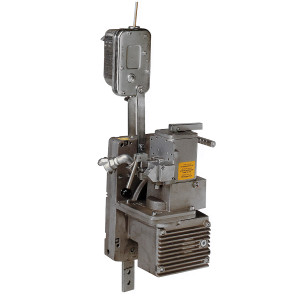

Tractel Tirak™ X-Series Man-Riding Air Hoist XA300P1 – 700 lb Capacity, Pneumatic Operation - 17008K

Product Description

The Tractel Tirak™ X-Series Man-Riding Air Hoist XA300P1 is a reliable pneumatic lifting solution that has been designed for safe personnel lifting and light-duty material handling in industrial environments where electric power is limited or not permitted. Certified for man-riding use. This air-powered hoist is equipped with the BSO 500 overspeed safety device that automatically engages if an excessive descent speed is detected. This helps by ensuring dependable fall protection for operators working at height.

Engineered for smooth, consistent operations. The XA300P1 gives users a 700 lb lifting capacity with a controlled lifting speed of 30 fpm. Hoist operates on compressed air at 85 PSI and requires 30 CFM. This hoist is ideal for hazardous or explosive environments where pneumatic equipment is preferred for safety and compliance.

The hoist utilizes a 5/16 in. wire rope and a friction-drive lifting system that allows for unlimited lifting height, limited only by rope length. This design ensures consistent traction, precise load control, and reduced rope wear, even during frequent starts, stops, and positioning tasks.

Lightweight yet rugged, the XA300P1 is well-suited for both temporary and permanent installations. It is an excellent choice for various vertical access systems that need certified man-riding safety without electrical power.

Specifications

• Capacity: 700 lbs (318 kg)

• Hoist Type: Man-riding pneumatic (air-powered) wire rope hoist

• Model: XA300P1

• Lifting Speed: 30 ft/min

• Air Requirement: 30 CFM @ 85 PSI

• Wire Rope Diameter: 5/16 in.

• Safety Device: BSO 500 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, maintenance, inspection, hazardous environments, industrial vertical access
