Super Pull-All® J5 Light Duty Wire Rope Hoist – Body & 30 ft Assembly Versions

Description — Hoist Body Only

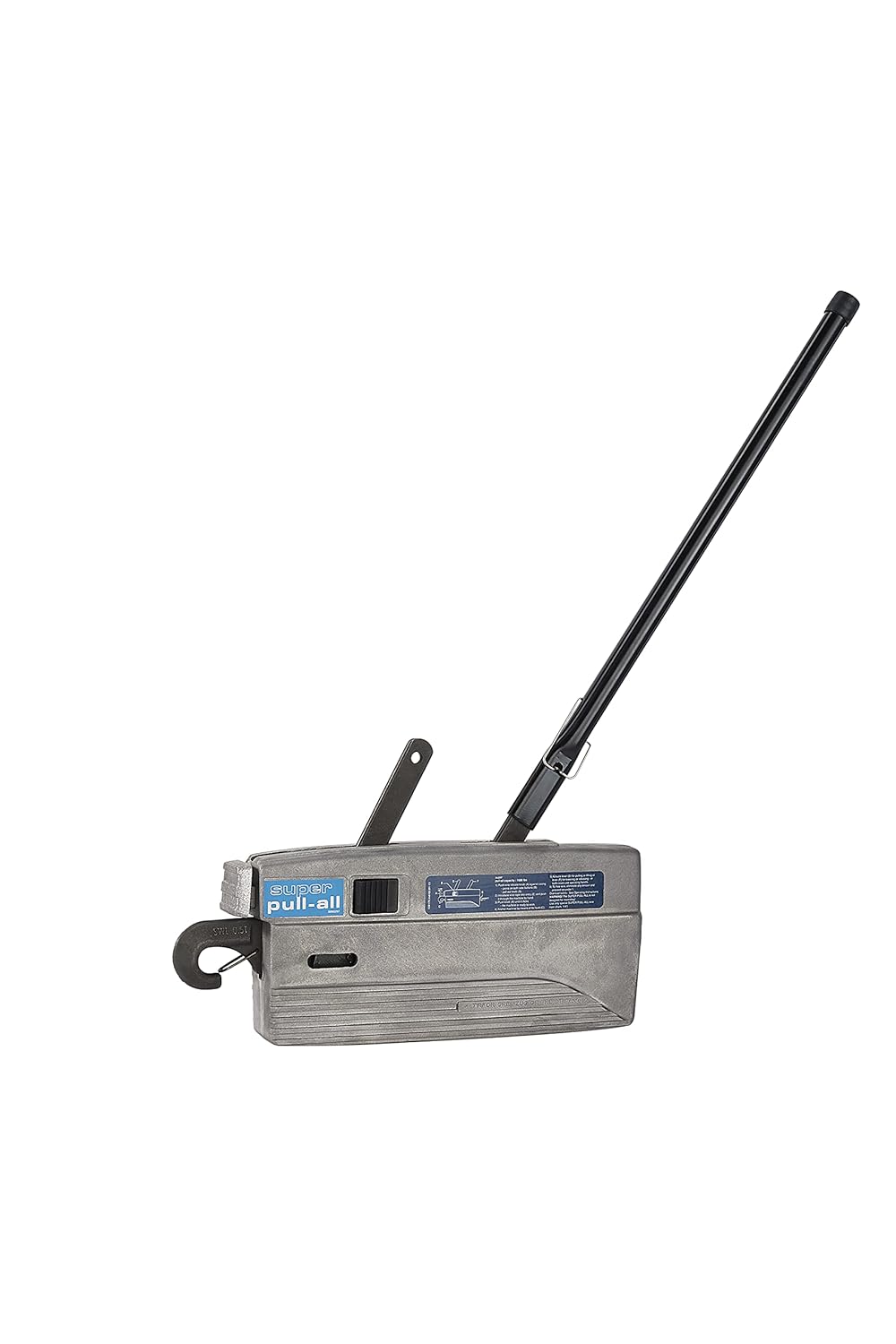

The Super Pull-All® J5 is a rugged, compact, lever-operated light-duty wire rope hoist from Tractel, designed for lifting, pulling, tensioning, and positioning tasks. With a rated lifting capacity of 500 kg (1,100 lb) and a pulling capacity of 800 kg (1,760 lb), this model is ideal for handling moderate loads safely and reliably without relying on electric power.

Its pass-through rope design allows for virtually unlimited rope length, enabling flexibility in horizontal, vertical, or angled operations. The dual jaw gripping mechanism ensures the rope is held securely whenever the operator pauses, preventing drift or slippage. A telescopic control lever is how operators gain a mechanical advantage to move or lift loads with controlled effort. Overload protection is provided by shear pins that break under excessive load, protecting both the equipment and the operator.

Built for portability and adaptable field use, the Super Pull-All J5 (body only) is well-suited for installations, maintenance, rigging, rescue operations, and remote jobsites where compact, manual hoist power is required.

Description — 30 ft (10 m) Assembly Version

The Super Pull-All® J5 with 30 ft assembly comes factory-equipped with 10 m (≈ 33 ft) of Maxiflex wire rope and two wire rope slings. This version is ready to use out of the box.

In lifting mode, it supports up to 500 kg (1,100 lb), while in pulling mode, it can manage up to 800 kg (1,760 lb). The pass-through design of the hoist means the body itself does not limit rope length — additional rope can be added for a more extended reach. Ideal for jobs requiring immediate deployment, it offers the same dual-jaw gripping, automatic load holding, and built-in overload protection as the hoist-only version.

Key Specifications

Hoist Body Only

• Model / SKU: J5 (Super Pull-All)
• Type: Light Duty Wire Rope Hoist
• Lifting Capacity: 500 kg (1,100 lb)
• Pulling Capacity: 800 kg (1,760 lb)
• Rope Design: Pass-through (unlimited rope length capability)
• Safety: Dual jaw gripping system; overload shear pins
• Operation Modes: Horizontal, vertical, or angled pulling/lifting

30 ft / 10 m Assembly Version

• Includes: 10 m (≈ 33 ft) Maxiflex wire rope + 2 wire rope slings
• Lifting Capacity (with rope): 500 kg (1,100 lb)
• Pulling Capacity (with rope): 800 kg (1,760 lb)
