Product Overview
- Product Description
-
These manual cable hoists lift, pull, and apply tension on heavy loads that travel long distances and high heights. Cable is strong, supports heavy loads, and is less susceptible to corrosion and cutting damage than rope and web straps.

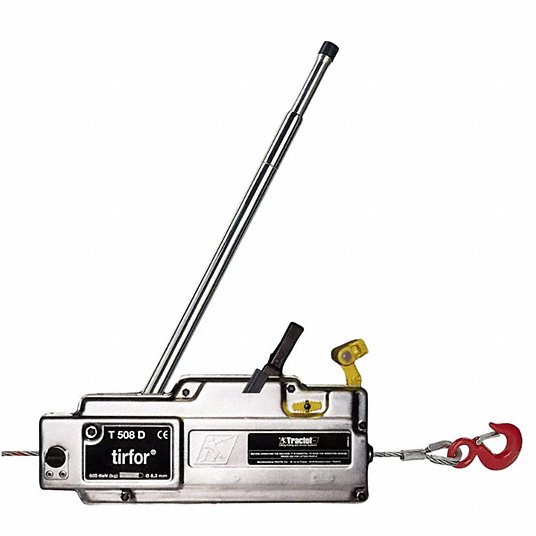

The Griphoist® is a portable manual hoist with traversing wire rope. They can lift, pull and place loads across great distances without exceeding their maximum working load limit. These lever operated wire rope hoists are suitable for use in numerous applications and are the ideal solution for professionals. An outstanding option of the Griphoist® hoist is that load capacity of the device can be increased with a sheave block.
These hoists are portable, strong and can be used in any orientation. The design of these hoists allow for a virtual unlimited lift or pull, the limit of which is determined only by the length of wire rope inserted into it.
- Light weight for quick installation
- No limitation in terms of wire rope length
- Easy to use, heavy duty, and powerful
- Increase load capacity with deflection sheaves
- Overload protection
How They Work
The way a Griphoist / Tirfor unit works can be described as "hand-to-hand", like the way a sailor pulls on a rope...while one hand pulls the other changes position to pull in turn. They two hands in this metaphor represent the two jaws of the Griphoist / Tirfor. They grip the wire rope without damaging it, and alternately pull it during forward operation and hold it during reverse operation. The effort is transferred to the jaws by two levers: one for forward operation and the other for reverse operation. The load is held securely at all times. Without a ratchet or pawl, loads can be precisely positioned.
Product Highlights
These machines are safe, reliable and efficient, and are suitable for many applications. Griphoist / Tirfor machines are simply lever-operated units that utilize a separate piece of wire rope (note: the wire rope used by these units is NOT standard production wire rope, rather it has a special construction made to work specifically with Griphoist / Tirfor units). Offering one-man operation, using a telescopic operating handle, they can work in any position and over any height of lift. They can indeed replace typical hoists and winches in many applications.
- Versatile--works in any position, horizontal or vertical and angled
- Length--unlimited length of wire rope is possible (aside from the standard lengths that ship with each unit, custom wire rope assemblies can be ordered)
- Smooth--continuous operation without jerking the load
- Strong--high mechanical advantage
- Safe & Reliable--whether lifting or lowering, the load is permanently controlled with total precision
- No Overloads--overloading is prevented thanks to a built-in safety device
- Man Rated--the TU series is approved for man-riding operations
