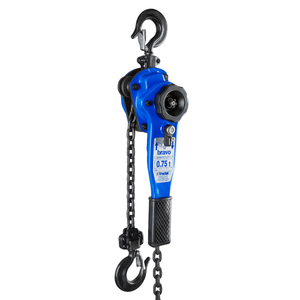

Product Overview
The bravo™ lever hoist is ideal for industrial and building/civil engineering applications. It is designed for pulling, lifting, positioning and adjusting loads in workshops and/or building sites.
Suitable for a wide variety of lifting, pulling and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor.
The bravo™ is a rugged, quality built hoist designed for reliable operations even in the toughest conditions.
BENEFITS
- Easy operation with simple controls
- Compact and lightweight
- Excellent weight / capacity / size ratio
- Minimum effort to lift maximum load
FEATURES
- Working Load Limit: 1,500 lbs. / 3/4 Ton
- Lengths Available: 5, 10, 15, 20, 30 Feet Lift
- Load Chain Size : 6 x 18 mm
- Number of Falls: 1
- Effort on lever at capacity: 44 lbs. / 20 kg
- 360° swivel hook with overload opening indicators
- Removable large-opening swivel hook with large latch marked with working load limit of the hoist
- Five sprocket load wheel with closed bearings
- Free wheel safety device activates braking mechanism when load applied in neutral position
- The hoist and its components are made of high tensile alloy steel
- Anti-corrosion treated lifting and handling line
- Operates in temperatures between -40 and 140°F (-40 and 60°C)
- Wind-through chain system for fast hook positioning
- Automatic brake with double ratchet
STANDARDS
- Meets or exceeds ANSI/ASME B30.21C, Manually Lever-Operated Hoist code.
- Load chain manufactured in accordance with ISO T
Dimensions
| Chain Length | 10 ft |
| Lever Length | 11.9 in. |
| Manufacturers Warranty Length | 1 Year |
Details
| Item | Lever Chain Hoist |
| Load Capacity | 1,500 lb |
| Hoist Lift | 10 ft |
| Includes | Bravo 3/4T Lever Chain Hoist, Bravo 3/4T Lever Chain Hoist, 10 ft corrosion resistant chain |
| Hook Opening | 1 in. |
| Chain | Corrosion Resistant Chain |
| Standards | Meets or exceeds ANSI/ASME B30.21C |
| Hoist Mount | Lever Hoist |
| Pull to Lift Rated Load | 44 lb |
| Brake | Automatic brake with double ratchet |
| Finish | Alloy steel |
| Material | High tensile alloy steel |
